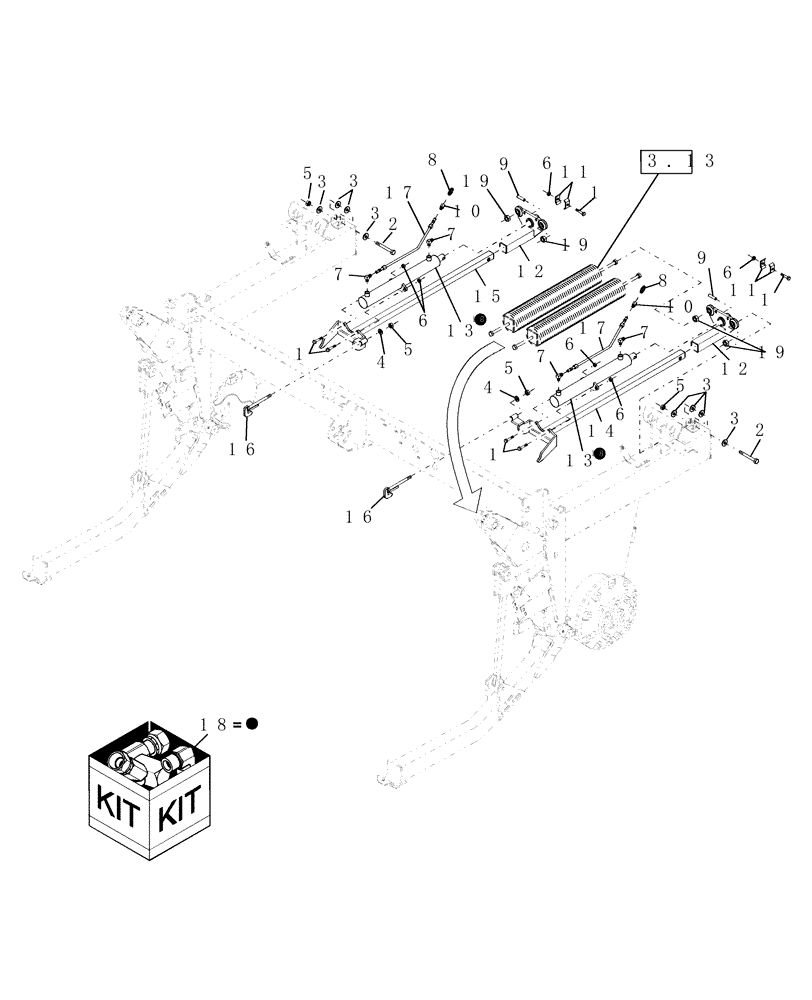

Запчасти Case IH DHX211 (3.08) - HYDRAULIC ADAPTION, LIFT/FLOAT, WINDROW WDX901, 1101, 1701 (07) - HYDRAULICS

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Cap, HH, G5, 1/2"-13 x 3"

2шт.

3

495-21056

WASHER,1/2"

8шт.

4

495-11053

WASHER,1/2", SAE

2шт.

5

232-4148

NUT,1/2"-13, GC

4шт.

6

232-4146

NUT,3/8"-16, GC

6шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°, 6, 37NP

4шт.

8

86563528

HYD CONNECTOR

Nipple, 6

2шт.

9

86527132

LOCK PIN,12.7mm OD x 50.8mm L

2шт.

10

86595672

ORIFICE

0.60"

2шт.

11

86593204

HOSE CLIP

Tab Mount

4шт.

12

86587748

YOKE

Slide

2шт.

13

86587749

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod

2шт.

14

86587750

SUPPORT TUBE,37.37" L

Tube, LH

1шт.

15

86587751

SUPPORT TUBE,37.37" L

Tube, RH

1шт.

16

86587752

BOLT

J Type

2шт.

17

86587753

HYD TUBE

2шт.

18

86599695

SEAL KIT

1шт.

19

87864

NUT,5/8"-11, G2

Heavy Hex, 5/8"-11

4шт.
