Запчасти Case IH DHX211 (3.07) - HYDRAULIC ADAPTION, MOTOR HOSES, WDX901/1101/1701 (07) - HYDRAULICS

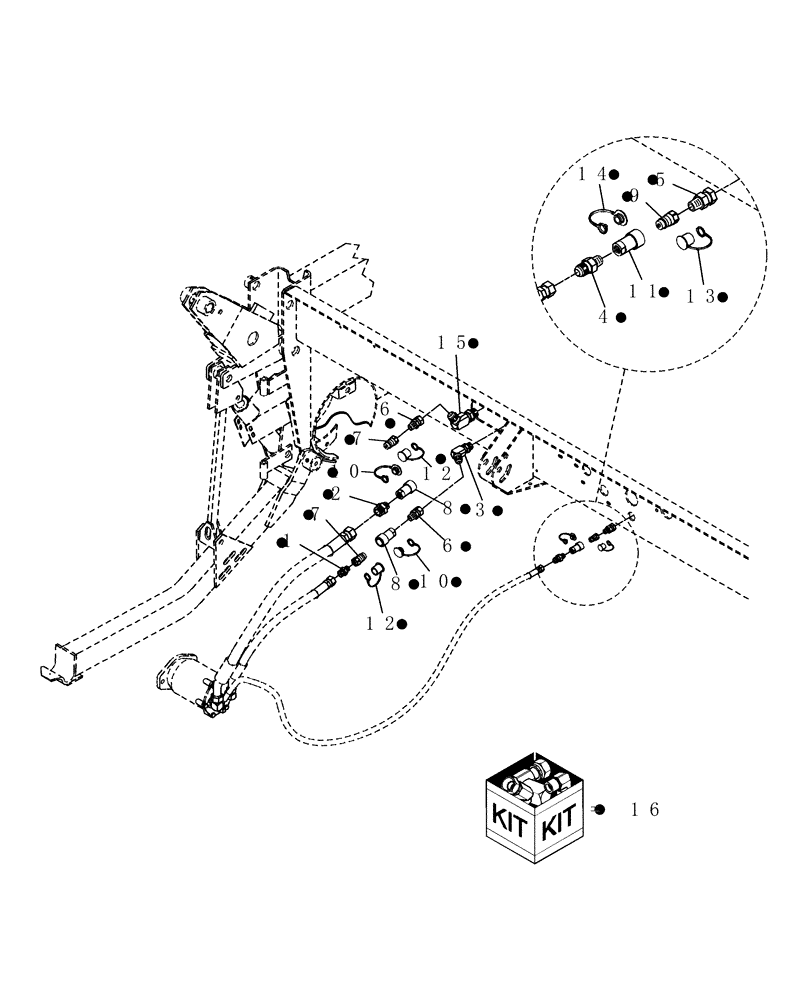

Схема запчастей Case IH DHX211 - (3.07) - HYDRAULIC ADAPTION, MOTOR HOSES, WDX901/1101/1701 (07) - HYDRAULICS
7
4
13
9
5
11
6
3
2
7
10
12
12
8
1
14
6
10
15
8

Артикул

Название

Примечание

Количество

1

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Connector, 12, 37° NP

1шт.

2

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Connector, 20, 37° NP

1шт.

3

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Elbow

1шт.

4

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

37° FL, Male PT, 3/8" Tube

1шт.

5

86593458

ADAPTER

4M x 6F, SW

1шт.

6

86011403

ADAPTER

12M x 12F, SW

2шт.

7

86595685

COUPLING

Quick, 1/4" Male

2шт.

8

86595686

COUPLING

Quick, 3/4" Female

2шт.

9

86564906

COUPLING

Quick, 1/4" Male

1шт.

10

86595687

PLUG

Quick, 3/4" Female

2шт.

11

86595688

COUPLING

Quick, 1/4" Female

1шт.

12

86595689

CAP

Quick, 3/4" Male, Cap

2шт.

13

86564912

DUST CAP

1/4" Male

1шт.

14

86595690

COUPLING

Quick, 1/4" Female, Plug

1шт.

15

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Elbow, 45°, 12/16, 37° x OR

1шт.

16

86587771

HYDRAULIC MOTOR

Kit, 1 To 15

1шт.

Выбрано товаров: 16
