Запчасти Case IH DHX211 (3.06) - HYDRAULIC ADAPTION, LIFT/TILT, WINDROW WDX901, 1101, 1701 (07) - HYDRAULICS

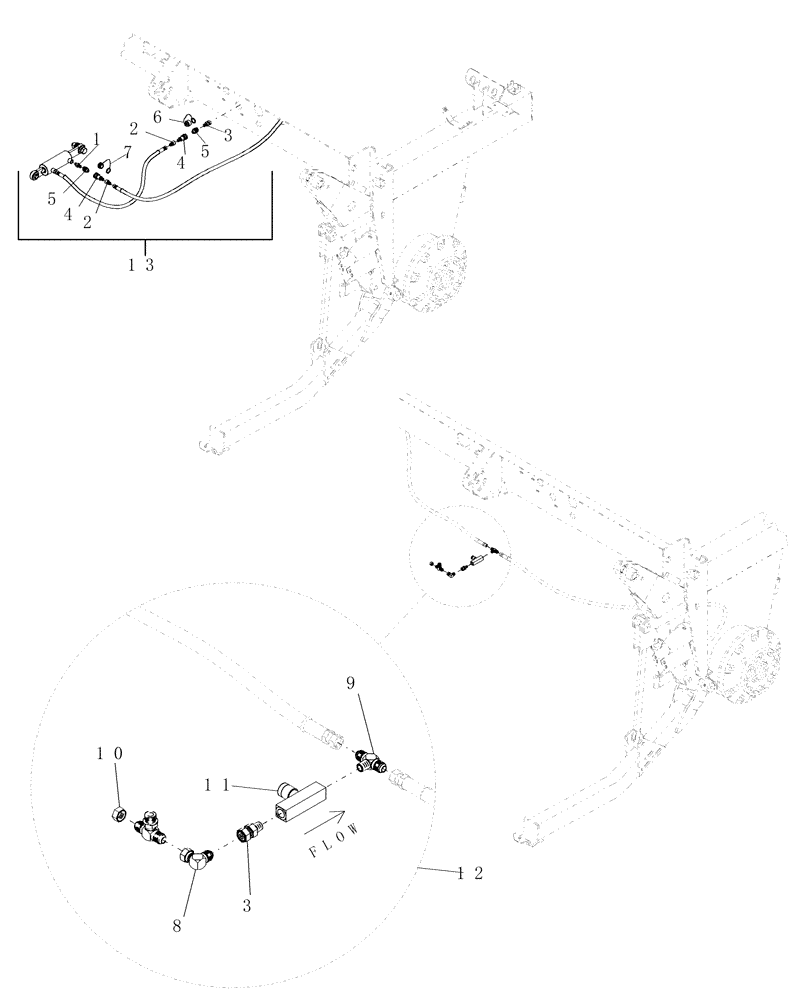

Схема запчастей Case IH DHX211 - (3.06) - HYDRAULIC ADAPTION, LIFT/TILT, WINDROW WDX901, 1101, 1701 (07) - HYDRAULICS
1
3
flow
10
13
5
12
8
9
4
6
3
2
4
2
7
5
11

Артикул

Название

Примечание

Количество

1

86595673

HYD CONNECTOR

Nipple, 4MP x 6MB

1шт.

2

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

Connector, 6, 37° FMNP

2шт.

3

86593458

ADAPTER

SW, 4MP x 6FJX

2шт.

4

173593

COUPLING

Quick Disconnect, Female, 1/4" NPT Male

2шт.

5

173592

COUPLING

Quick Disconnect, Female, 1/4" NPT Female

2шт.

6

86595674

COUPLING

Quick Coupler, 1/4" Male

1шт.

7

86593463

COUPLING

Quick Coupler, 1/4" Female Screw

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

6, 37° x 37° SW

1шт.

9

218-5181

TEE,1/2" - 20 Male JIC x 1/2" - 20 Male JIC x 1/2" - 20 Male ORB

37° FL, Male PT, 3/8" Tube, Branch

1шт.

10

218-754

CAP,37 Degree, 9/16"-18

6, Hex

1шт.

11

86595122

NEEDLE VALVE

1шт.

12

86587769

LIFT CYLINDER

Assembly

1шт.

13

86587768

HYDRAULIC CYLINDER

Assembly

1шт.

Выбрано товаров: 13
