Запчасти Case IH DHX211 (3.03[2]) - ELECTRICAL ADAPTION, REEL SPEED, WINDROW, FROM PIN K01 2001 (06) - ELECTRICAL

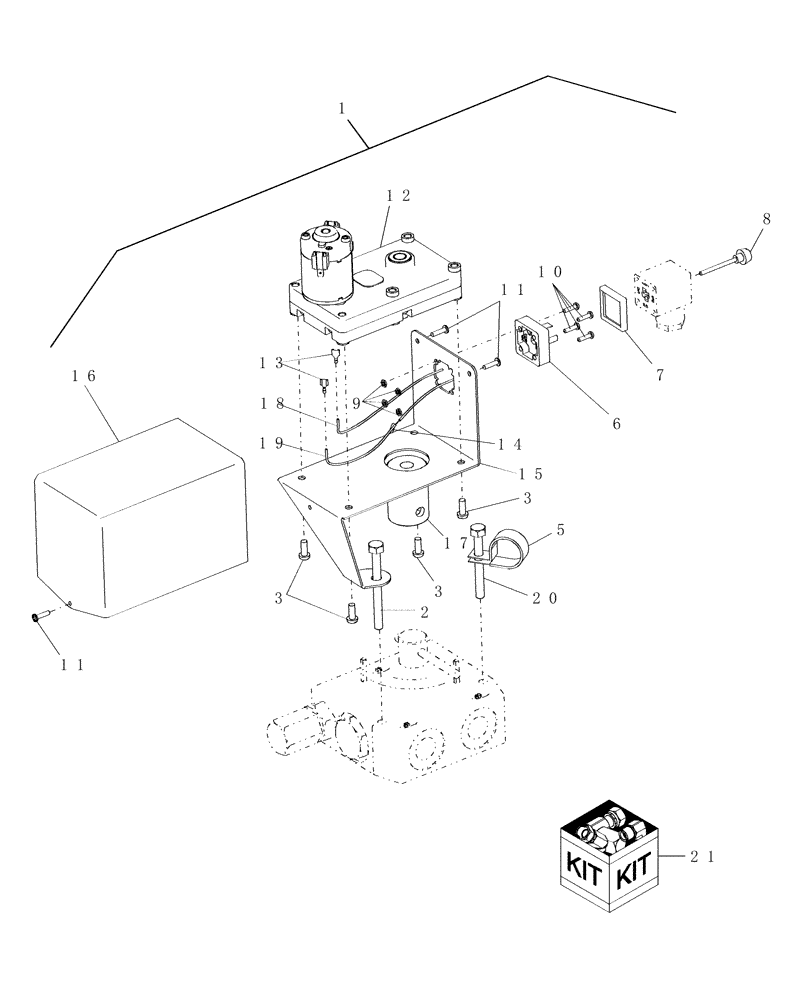

Схема запчастей Case IH DHX211 - (3.03[2]) - ELECTRICAL ADAPTION, REEL SPEED, WINDROW, FROM PIN K01 2001 (06) - ELECTRICAL
20
21
11
18
17
3
5
16
19
10
8
1
11
2
3
15
7
14
9
6
3
13
12

Артикул

Название

Примечание

Количество

1

86599760

CONTROL UNIT

Includes: Ref.s 2 Thru 20

1шт.

2

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

Cap, HH, G5, 1/4"-20 x 2-3/4"

1шт.

3

86641390

SCREW,#10 - 32 x 1/2"

Pan Hd. #10-32 x 1/2"

4шт.

4

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Cup Pt

1шт.

5

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

1шт.

6

86599762

ELEC CONNECTOR

Hirschmann, Pan. M.; See Ref. 21

1шт.

7

86599763

GASKET

Hirschmann

1шт.

8

86599764

SCREW

Hirschmann

1шт.

9

825-1403

NUT,M3, Cl 8

4шт.

10

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

11

87654

SELF-TAP SCREW,Slotted Rd Hd, #8 x 1/2"

Rd Hd, #8 x 1/2"

3шт.

12

87043387

MOTOR

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, 16-14 GA; See Ref. 21

2шт.

14

NSS

NOT SOLD SEPARAT

Circuit Protector; See Ref. 21

1шт.

15

87043385

SUPPORT

1шт.

16

87043384

COVER

1шт.

17

87043383

MOTOR

Adapter

1шт.

18

NSS

NOT SOLD SEPARAT

Wire, Red, 16 GA x 6"; See Ref. 21

1шт.

19

NSS

NOT SOLD SEPARAT

Wire, Black, 16 GA x 6"; See Ref. 21

1шт.

20

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

21

87043386

KIT

Panel-Conn-Wire; Includes: Ref.s 6, 13, 14, 18, & 19

1шт.

Выбрано товаров: 21
