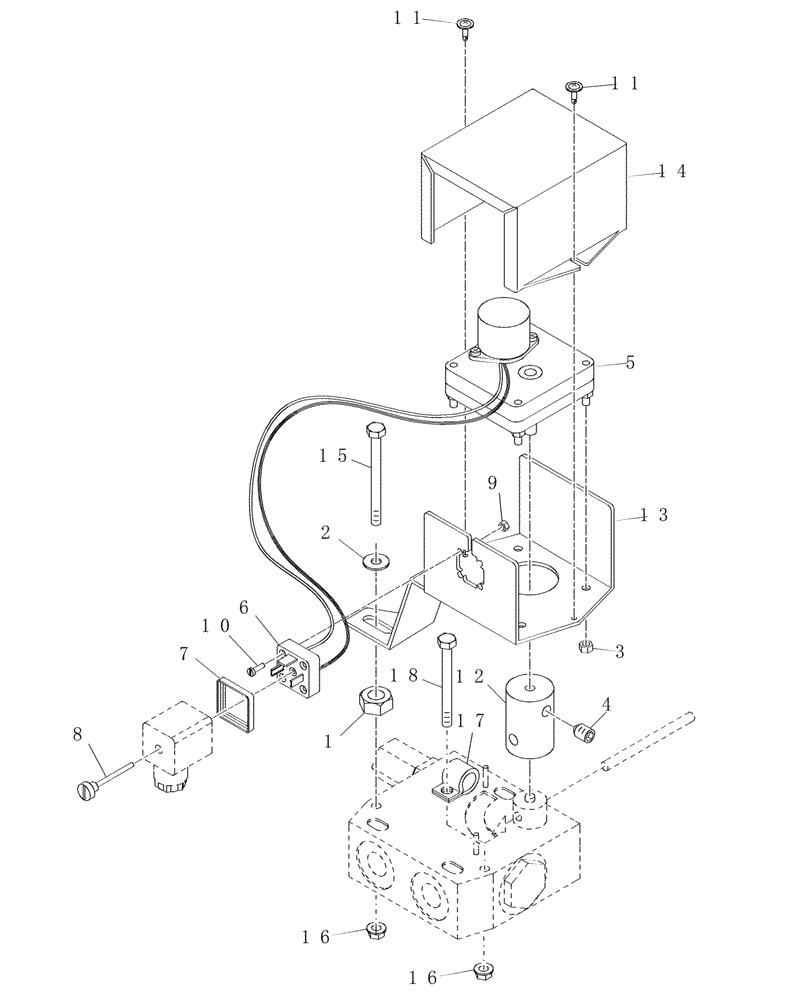

Запчасти Case IH DHX211 (3.03[1]) - ELECTRICAL ADAPTION, REEL SPEED, WINDROW, PRIOR TO PIN K01 2001 (06) - ELECTRICAL

1

425-107

NUT,7/16"-14, G5

1шт.

2

495-21031

WASHER,1/4"

1шт.

3

225-14110

NUT,#10-24

4шт.

4

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Cup Pt

1шт.

5

86599761

ELECTRIC MOTOR

1.5 RPM, 12VDC

1шт.

6

86599762

ELEC CONNECTOR

Hirschmann Pan, M

1шт.

7

86599763

GASKET

Hirschmann

1шт.

8

86599764

SCREW

Hirschmann

1шт.

9

86508812

NUT,M3, Cl 8

4шт.

10

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

Pan, CL 4.8, M3 x .5 x 12

4шт.

11

87654

SELF-TAP SCREW,Slotted Rd Hd, #8 x 1/2"

Rd Hd, #8 x 1/2"

2шт.

12

86599765

ADAPTER

Motor, Prince

1шт.

13

86599777

BRACKET

Dayton, Gearmotor, Reel Speed

1шт.

14

86599776

COVER

Gearmotor, Mount

1шт.

15

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

HH, G5, 1/4"-20 x 2-3/4"

2шт.

16

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

17

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

1шт.

18

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.
