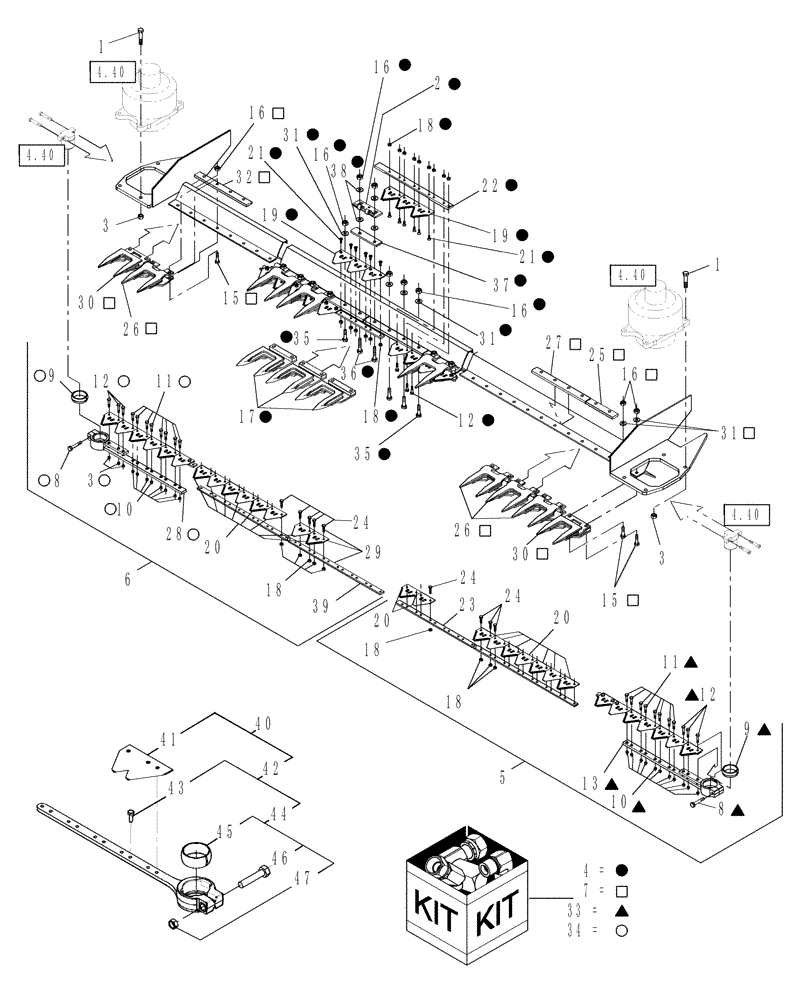

Запчасти Case IH DHX211 (4.20) - DOUBLE KNIFE DRIVE, 18, 21, 25, 30 & 36 FT. (14) - CROP CUTTING

1

428-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

Cap, HH, G8, 1/2"-20 x 2-1/4"

8шт.

2

86639835

CLAMP BRACKET

Crary Hold Down

1шт.

3

88130

NUT,1/2"-20, GC

8шт.

4

86561400

KIT

Overlap, 3-3/8" Stroke

1шт.

5

86593814

KNIFE

Assy., 36 Ft, Double Drive, LH

1шт.

Sub 47713239 Does not Contain Knife Head (Ordered Seperately)

1шт.

5

86592411

KNIFE

Assy., 30 Ft, Double Drive, LH

1шт.

5

86561831

KNIFE

Assy., 25 Ft, Double Drive, LH

1шт.

Sub 47713288 Does not Contain Knife Head (Ordered Seperately)

1шт.

5

86561823

KNIFE

Assy., 21 Ft, Double Drive, LH

1шт.

5

86593811

KNIFE

Assy., 18 Ft, Double Drive, LH

1шт.

6

86621281

KNIFE

Assy., 36 Ft, Double Drive, RH

1шт.

Sub 47713240 Does not Contain Knife Head (Ordered Seperately)

1шт.

6

86592415

KNIFE

Assy., 30 Ft, Double Drive, RH

1шт.

6

86561832

KNIFE

Assy., 25 Ft, Double Drive, RH

1шт.

6

86561824

KNIFE

Assy., 21 Ft, Double Drive, RH

1шт.

6

86593812

KNIFE

Assy., 18 Ft, Double Drive, RH

1шт.

7

86593816

GUARD

Kit, 36 Ft, Double Drive

1шт.

7

86592497

GUARD

Kit, 30 Ft, Double Drive

1шт.

7

86561833

KIT

25 Ft, Double Drive

1шт.

7

86561825

KIT

21 Ft, Double Drive

1шт.

7

86593813

GUARD

Kit, 18 Ft, Double Drive

1шт.

8

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

9

86563534

SLEEVE

Nylon

2шт.

10

86561689

INSERT

Threaded, SCH

22шт.

11

86563535

BOLT

6mm x 18mm

22шт.

12

86563536

BOLT

6mm x 28mm

9шт.

13

NSS

NOT SOLD SEPARAT

Head, Knife, HB, Short, LH; See Ref. 33

1шт.

14

Reference Not Used

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

170шт.

16

232-4146

NUT,3/8"-16, GC

170шт.

18

832-46406

NUT,M6 x 1, Cl 8

1шт.

17

86564361

GUARD

Overlap

3шт.

19

86564363

KNIFE

Sickle Section, Overlap

6шт.

20

86561692

KNIFE

Sickle Section

1шт.

21

86564364

BOLT

6mm x 16mm

12шт.

22

86616609

STRAP

overlap

1шт.

23

86593476

KNIFE

Back, 18 Ft DDLH

1шт.

23

86561829

KNIFE

Back, 21 Ft DDLH

1шт.

23

86561836

KNIFE

Back, 25 Ft DDLH

1шт.

23

86592613

KNIFE

Back, 30 Ft DDLH

1шт.

23

86593902

KNIFE

Back, 36 Ft DDLH

1шт.

24

86563537

BOLT

SPL 6mm x 16mm

1шт.

25

86592614

SPACER

Bar, 5/16", 18, 30, 36 Ft DD

1шт.

25

86599494

SPACER

Bar, 5/16", 21 and 25 Ft DD

1шт.

26

86561686

GUARD

Standard, 12mm, 36 Ft, DD

1шт.

26

86561687

GUARD

Triple, 18, 21, 25, 30 Ft DD

1шт.

27

86592614

SPACER

Bar, 5/16", 21and 25 Ft, DD

41шт.

28

NSS

NOT SOLD SEPARAT

Head, Knife, HB, Short, RH, 21and 25 Ft, DD; See Ref. 34

1шт.

29

Reference Not Used

1шт.

31

495-21044

WASHER,3/8"

18шт.

30

86561684

GUARD

Open, Sch

2шт.

32

86592617

SPACER

Bar, 5/16", 18, 21, 25, 30 Ft DD

1шт.

32

86593468

SPACER

Bar, 5/16", 36 Ft DD

1шт.

33

86561690

KNIFE HEAD

HB, Short, LH

1шт.

34

86593464

KNIFE

HB, Short, RH

1шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

37

86564985

SPACER

Bar, 1/4", 1/2 Aluminum

1шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

39

86593476

KNIFE

Back, 18 Ft DDRH

1шт.

39

86561829

KNIFE

Back, 21 Ft DDRH

1шт.

39

86561836

KNIFE

Back, 25 Ft DDRH

1шт.

39

86592613

KNIFE

Back, 30 Ft DDRH

1шт.

39

86641833

KNIFE

Back, 36 Ft DDRH

1шт.

40

87744744

CUTTERHEAD

Cast Steel, LH & RH, See Figure Note

1шт.

41

87037117

KNIFE SECTION

Twin Point

1шт.

42

87667516

KNIFE HEAD

Assembly

1шт.

43

86563535

BOLT

M6 x 18

10шт.

44

87667487

SERVICE KIT

Knife Head Assembly

1шт.

45

87672659

INSERT

Steel

1шт.

46

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

47

88871

NUT,1/2"-13, GC

1шт.
