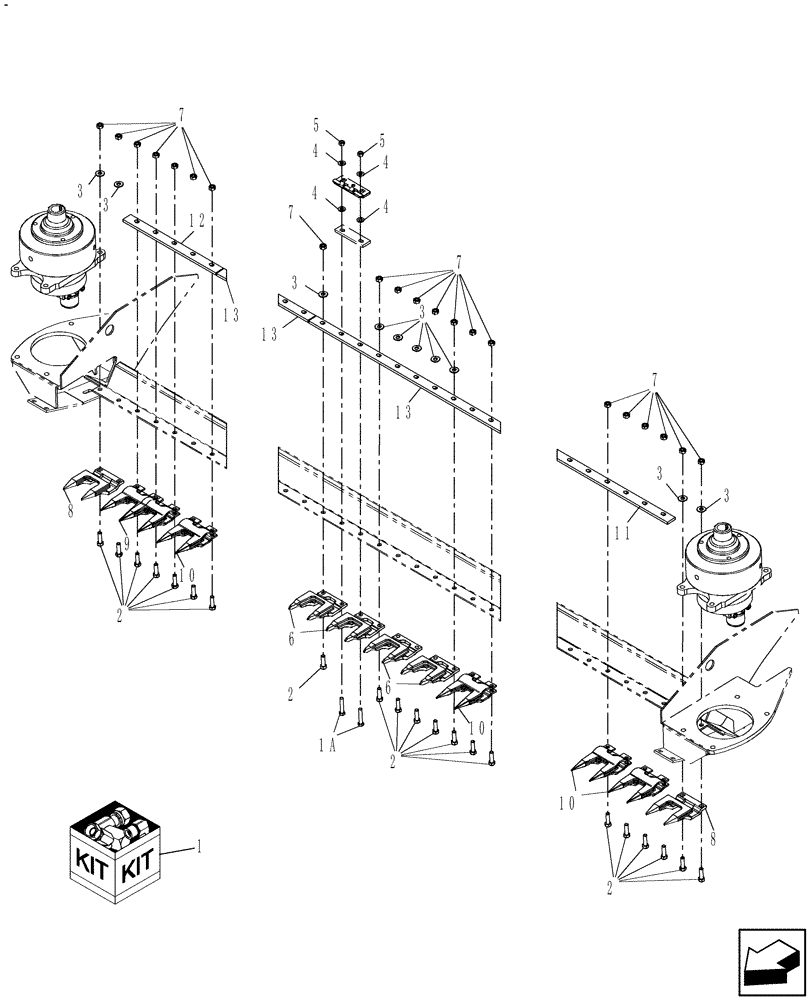

Запчасти Case IH DHX211 (4.20[1]) - GUARD KIT, DOUBLE KNIFE DRIVE, SQUARE HOLE 21FT & 25FT (14) - CROP CUTTING

1

84362190

KIT

Guard, 21 Ft., Double Knife Drive, Square Hole

1шт.

1

84362191

KIT

Guard, 25 Ft., Double Knife Drive, Square Hole

1шт.

1a

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

2

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

Qty.(83) 21Ft., (99) 25Ft.

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

10шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

5

88902

NUT,3/8"-16

2шт.

6

86564361

GUARD

12mm Overlap

4шт.

7

100016

NUT,M10 x 1.5, Cl 8

Qty.(83) 21Ft., (99) 25Ft.

1шт.

8

84314628

GUARD

12mm, Open First - Square

2шт.

9

84314630

GUARD

12mm, Triple - Square

1шт.

10

86561686

GUARD

12mm, Standard Qty. (35) 21Ft., (43) 25Ft.

1шт.

11

86599494

SPACER

Bar, 5/16

1шт.

12

86592617

SPACER

Bar, 5/16, 18-30 Dbl.

1шт.

13

86592614

SPACER

Bar, 5/16, 4Ft., Qty. (4) 21Ft., (5) 25Ft.

1шт.
