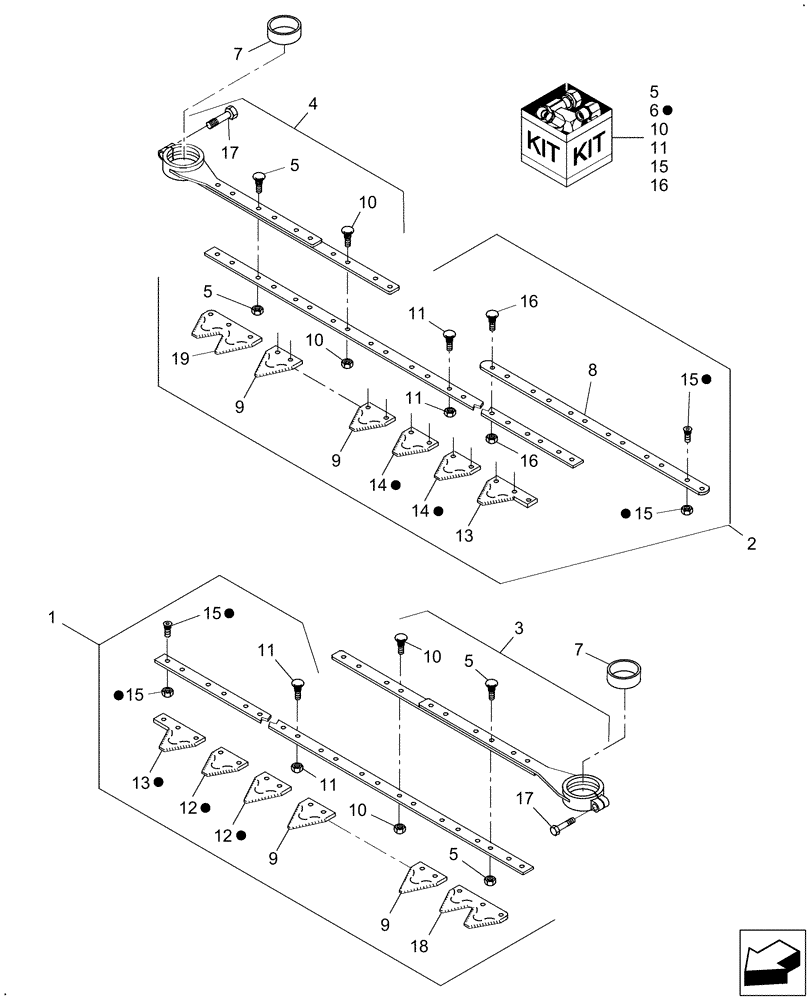

Запчасти Case IH DHX182 (20.04.20[2.2]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS (14) - CROP CUTTING

1

87056009

KNIFE ASSY

OSBH, LH, 9 Ft

1шт.

2

87056010

KNIFE ASSY

OSBH, RH, 9 Ft, See Figure Note

1шт.

3

87724638

KNIFE HEAD

LH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

4

87724639

KNIFE HEAD

RH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

5

86507780

KIT

Kit, (25 Of Each) , #12 x 1-1/8" (Each Knife Requires 6 Bolts)

1шт.

6

86616560

KIT

Overlap; Ref.s 12 (2), 13 (1), 14 (3), & 15 (13 Nuts & Bolts), See Figure Note

1шт.

7

86563534

SLEEVE

Plastic, See Figure note

2шт.

7

87672659

INSERT

Steel, See Figure Note

2шт.

8

84179065

KNIFE

Overlap; RH Knife Only, See Figure Note

1шт.

9

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

9' LH (31), 9' RH (34)

1шт.

10

86507778

KIT

7/8", Includes: (25) Nuts & (25) Bolts (Each Knife Requires 3 Bolts)

1шт.

11

86507777

KIT

Nut & Bolt, (50 Of Each), #12 x 5/8"; 9' LH (56), 9' RH (57)

1шт.

12

86615986

KNIFE SECTION

LH

2шт.

13

86615985

KNIFE SECTION

2шт.

14

86615987

KNIFE SECTION

2шт.

15

86512289

KIT

Overlap Kit, Hex Socket, Flat Head, Round Serrated Shank, #12 x 1/2", Qty (25) 1/2" Knife Bolts & Locknuts

1шт.

16

86517390

BOLT AND NUT

Kit, (25 Of Each), #12 x 3/4"; RH Knife Only; Requires 6 Bolts

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

18

86617759

KNIFE SECTION

End, LH

1шт.

19

86617760

KNIFE SECTION

End, RH

1шт.
