Запчасти Case IH DHX182 (20.01.08[2]) - CUTTERBAR STEEL SKID PLATES; SCHUMACHER CUTTING SYSTEM (14) - CROP CUTTING

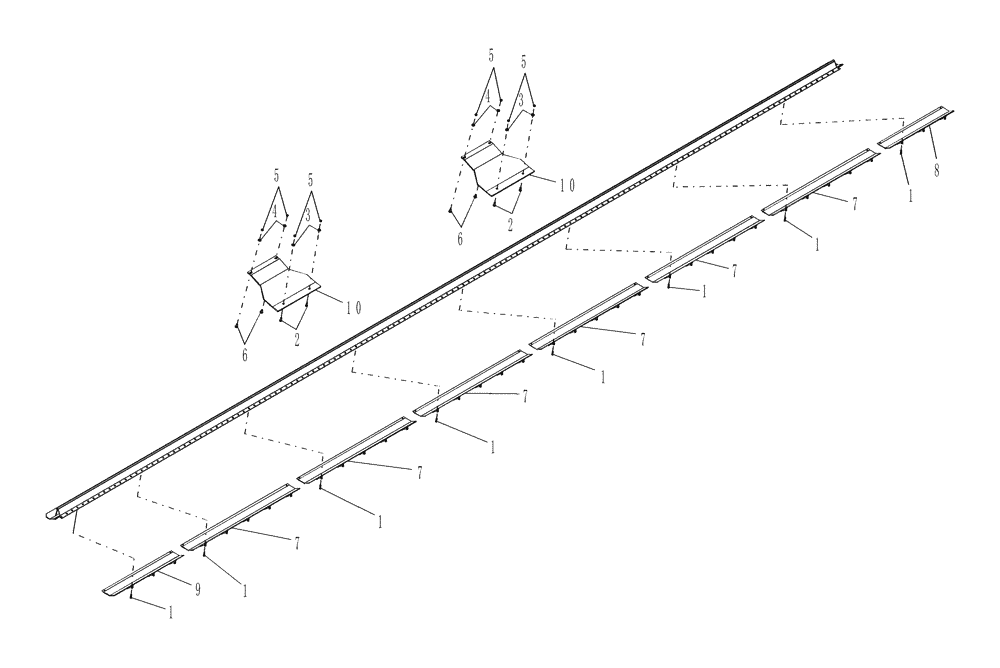

Схема запчастей Case IH DHX182 - (20.01.08[2]) - CUTTERBAR STEEL SKID PLATES; SCHUMACHER CUTTING SYSTEM (14) - CROP CUTTING
3
6
7
5
5
1
3
6
2
7
10
1
4
7
5
1
7
4
9
1
1
7
8
2
1
1
7
1
5
10

Артикул

Название

Примечание

Количество

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

DHX182 (18), DHX212 (21), DHX252 (25), DHX302 (30), & DHX362 (36)

1шт.

2

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

3

495-21056

WASHER,1/2"

4шт.

4

495-11053

WASHER,1/2", SAE

4шт.

5

232-4148

NUT,1/2"-13, GC

8шт.

6

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

7

87035794

SKID PLATE

1шт.

DHX182 (3), DHX212 (3), DHX252 (5), DHX302 (6), DHX362 (6)

1шт.

8

87035795

SKID PLATE

1шт.

DHX182 (1), DHX212 (1), DHX252 (0), DHX302 (0), & DHX362 (1)

1шт.

9

87035795

SKID PLATE

1шт.

DHX212 Only

1шт.

9

87035796

SKID PLATE

1шт.

DHX362 Only

1шт.

10

NLS

NO LONGER SERVICED

No longer required. Did not meet design intent.

2шт.

Выбрано товаров: 16
