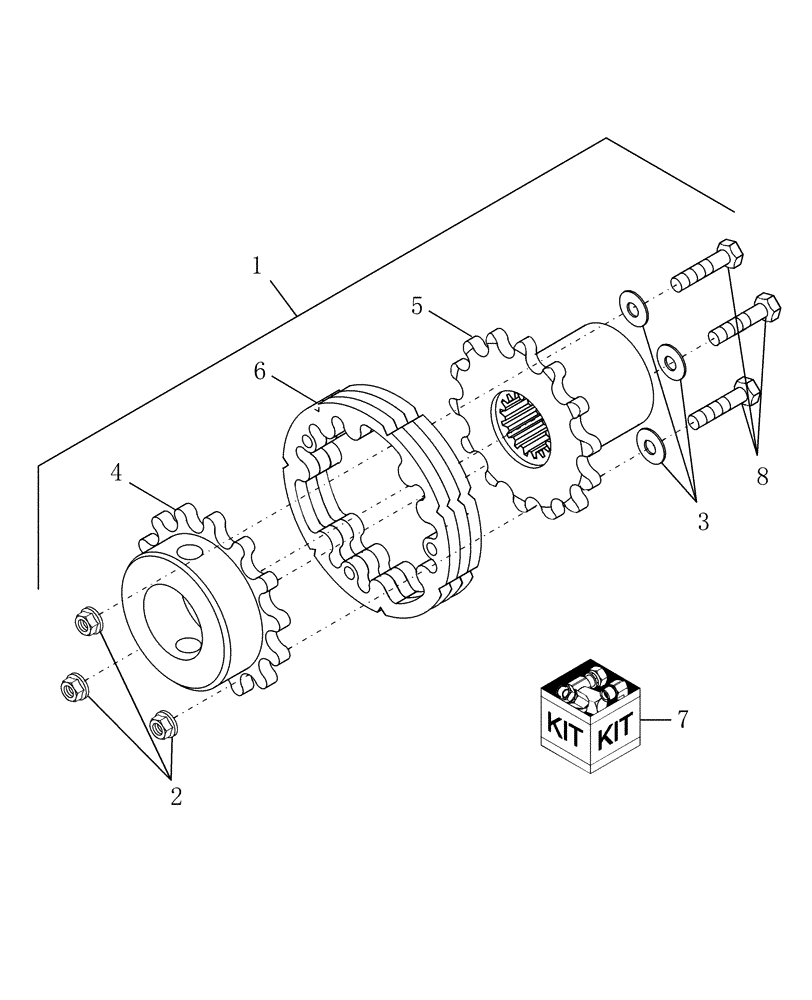

Запчасти Case IH DHX182 (20.05.47) - COUPLER, HCC & BAT REEL (13) - REEL

1

86562082

COUPLING

Includes: Ref.s 2 Thru 6 & 8

1шт.

2

231-5346

FLANGE NUT,Flg, 3/8"-16

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

4

86562102

COUPLING

1шт.

5

NSS

NOT SOLD SEPARAT

Coupler, Drive, See Ref. 7

1шт.

6

NSS

NOT SOLD SEPARAT

Coupler, See Ref. 7

1шт.

7

87043572

COUPLING

Kit, Drive; Includes: Ref.s 5 & 6

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.
