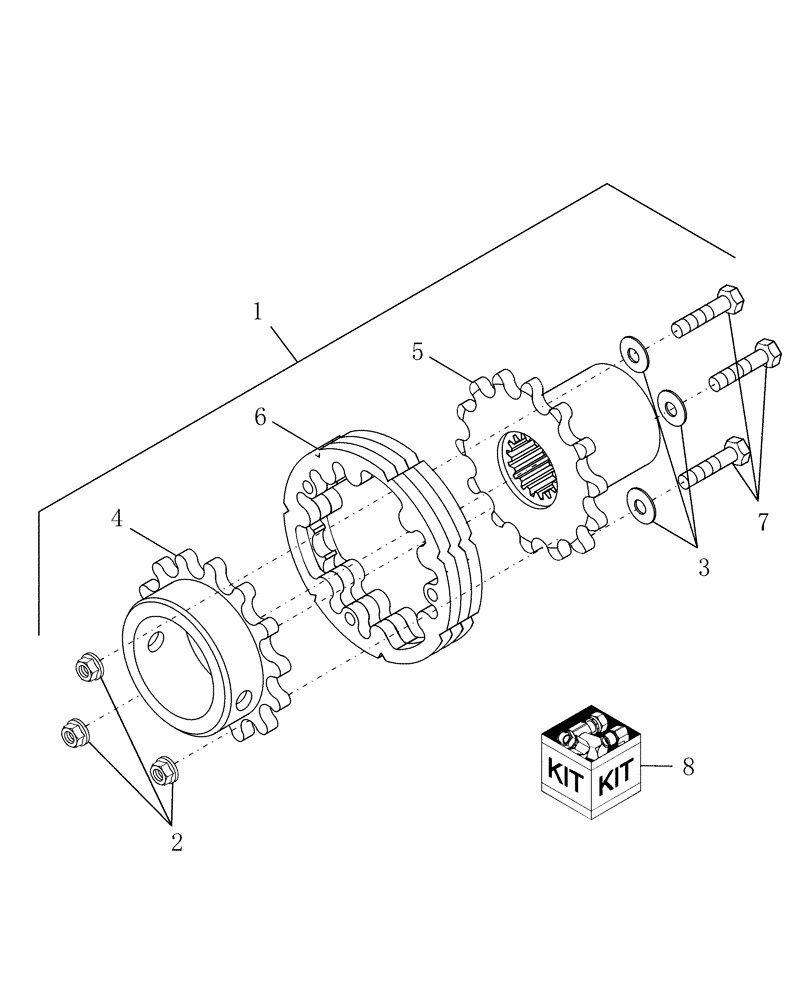

Запчасти Case IH DHX182 (20.05.32) - COUPLER, UII PICKUP REEL (13) - REEL

1

86565164

COUPLING

Includes: Ref.s 2 Thru 7

1шт.

Prior To PIN K01 2005

1шт.

Can Be Used In Place Of Newer Coupling W/Newer Plate If 4-5 Washers, 86562200 Are Added

1шт.

1

87524557

COUPLING

Includes: Ref.s 2 Thru 7

1шт.

From PIN K01 2005

1шт.

Can Be Used In Place Of Older Coupling W/Older Plate If 1/4" Of Material Is Trimmed Off Plate 86562183

1шт.

2

231-5346

FLANGE NUT,Flg, 3/8"-16

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

4

86562179

SPROCKET

1шт.

Prior To PIN K01 2005

1шт.

4

87524556

SPROCKET

Coupling

1шт.

From PIN K01 2005

1шт.

5

NSS

NOT SOLD SEPARAT

Coupler, Drive

1шт.

6

NSS

NOT SOLD SEPARAT

Coupler

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

8

87043572

COUPLING

Kit, Drive; Includes: Ref.s 5 & 6

1шт.
