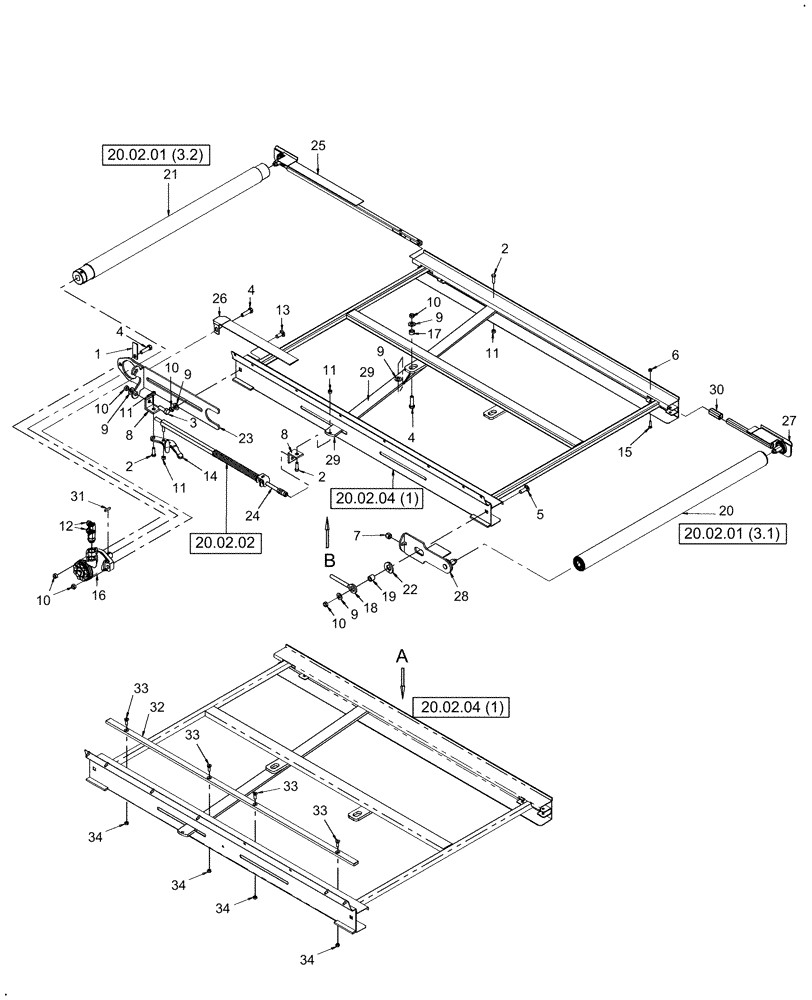

Запчасти Case IH DHX182 (20.02.03[1]) - DECK, LH, DHX182 (12) - MAIN FRAME

1

86578677

CONNECTING LINK

Retainer, Tab Extension

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

5

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

6

86532

LOCK NUT

Nylon, 1/4"

1шт.

7

80566

NUT

G5, 1/2"-13

1шт.

8

87038594

ANGLE

2шт.

9

495-21056

WASHER,1/2"

4шт.

10

232-4148

NUT,1/2"-13, GC

6шт.

11

232-4146

NUT,3/8"-16, GC

4шт.

12

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. O-Ring

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

14

87038598

PUSH-PULL COUPLING

Quick Release

1шт.

15

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1шт.

16

87396251

MOTOR, HYDRAULIC

Danfoss OMP-40-NDL, Prior To 11 May 2008, Includes: Ref. 31

1шт.

84136262R

REMAN-HYD MOTOR

DHX212,DHX362 Both (3/05-3/09) , Reman for New P/N 87396251

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

16

87051054

SEAL KIT

Danfoss Motor

1шт.

16

84136262

HYDRAULIC MOTOR

Parker TE0045- AS100AAFW, Installed After 11 May 2008, Includes Ref 31

1шт.

84136262R

REMAN-HYD MOTOR

DHX182 (3/05-1/09)

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

16

84135785

SEAL KIT

Parker Motor

1шт.

17

86563235

SPACER

1шт.

18

86560834

THREADED ROD

1шт.

19

86563188

SPACER

1шт.

20

86560835

ROLLER

Idler, 20.02.01[3.1]

1шт.

Prior To PIN Y8ZB00545

1шт.

20

87625000

IDLER

Idler, V-Guide, 20.02.01[3.1]

1шт.

From PIN Y8ZB00545

1шт.

21

86566165

ROLLER

Drive, 20.02.01[3.2]

1шт.

Prior To PIN Y8ZB00545

1шт.

21

87624986

ROLLER

Drive, V-Guide, 20.02.01[3.2]

1шт.

From PIN Y8ZB00545

1шт.

22

87038603

SPRING WASHER

1шт.

23

87397822

MOUNTING PLATE

1шт.

Prior To PIN Y8ZB00545

1шт.

23

87738786

PLATE

1шт.

From PIN Y8ZB00545

1шт.

24

87038585

TENSIONER

1шт.

25

87050556

TRUSS ROD

Adjuster, LH, 20.02.01[3.3]

1шт.

Prior To PIN Y8ZB00545

1шт.

25

87629153

PUSH ROD

Adjuster, LH, 20.02.01[3.3]

1шт.

From PIN Y8ZB00545

1шт.

25

84135791

PUSH ROD

Adjuster, LH, 20.02.01[3.3]

1шт.

From PIN Y9ZB00735

1шт.

26

87038597

PLATE

1шт.

Prior To PIN Y8ZB00545

1шт.

27

87050554

TRUSS ROD

Fixed, RH, 20.02.01[3.4]

1шт.

28

87355279

PLATE

1шт.

Prior To PIN Y8ZB00545

1шт.

28

87670859

PLATE ASSY.

1шт.

From PIN Y8ZB00545

1шт.

29

86560841

STABILIZER BAR

1шт.

30

87050553

SPACER

1шт.

31

87380339

KEY

1/4" x 1/4" x 1-1/4" Round Ends, Danfoss Motor

1шт.

31

80768

WOODRUFF KEY,#15, 1/4" x 1"

White Motor

1шт.

32

87740279

STRAP

See Figure Note

1шт.

From PIN Y8ZB00545

1шт.

33

281014

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 1"

4шт.

From PIN Y8ZB00545

1шт.

34

280736

NUT,5/16"-18, GC

4шт.

From PIN Y8ZB00545

1шт.
