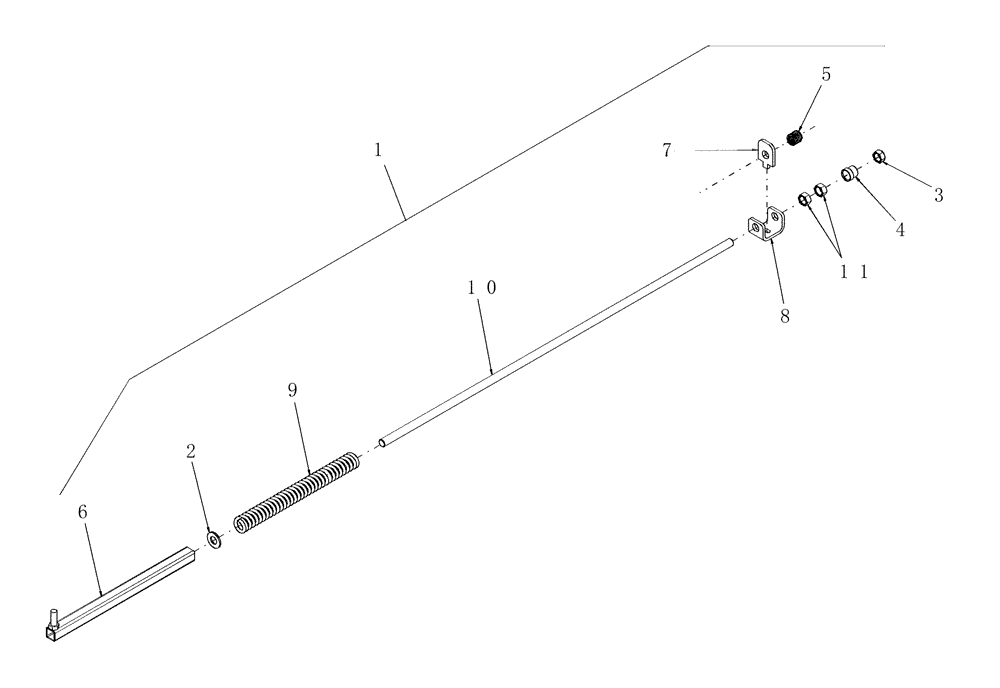

Запчасти Case IH DHX182 (20.02.02[1]) - ADJUSTER TUBE, LONG (12) - MAIN FRAME

1

87038585

TENSIONER

Long; Includes: Ref.'s 2 thru 11, as indicated

1шт.

2

495-11053

WASHER,1/2", SAE

1шт.

3

232-4148

NUT,1/2"-13, GC

1шт.

4

86563507

FERRULE

Tube

1шт.

5

87038593

SPRING

1шт.

6

87038590

TUBE,0.75" OD x 12" L

Adjuster, L = 12"

1шт.

7

87038589

LOCKING TAB

1шт.

8

87038588

CLEVIS

1шт.

9

87038587

SPRING

1шт.

10

87038586

ADJUSTMENT ROD

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

2шт.
