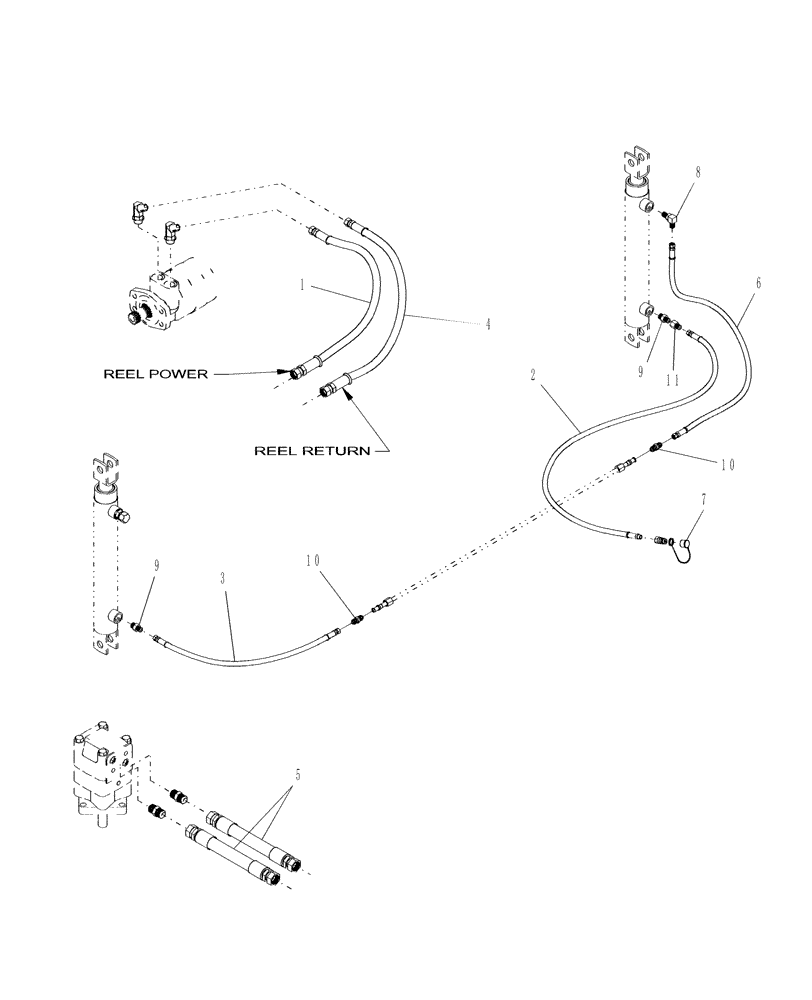

Запчасти Case IH DHX182 (20.07.03[1]) - HOSES, REEL LIFT (07) - HYDRAULICS

1

87052576

HOSE ASSY.

1/2" ID x 138"

1шт.

DHX182 Only

1шт.

1

87052006

HOSE ASSY.

1/2" x 150"

1шт.

DHX212 Only

1шт.

1

87052575

HYDRAULIC HOSE,0.50" ID x 180.00"

1шт.

DHX252 Only

1шт.

1

87052578

HOSE ASSY.

1/2" x 204"

1шт.

DHX302 Only

1шт.

2

87052577

HYDRAULIC HOSE,0.38" ID x 230.00"

1шт.

DHX182 Only

1шт.

2

87052004

HOSE ASSY.

3/8" x 242"

1шт.

DHX212 Only

1шт.

2

87052574

HOSE ASSY.

3/8" x 270"

1шт.

DHX252 Only

1шт.

2

87052573

HOSE ASSY.

3/8" x 300"

1шт.

DHX302 Only

1шт.

3

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

1шт.

4

87052005

HYDRAULIC HOSE

1/2" x 110"

1шт.

5

86705078

HYDRAULIC HOSE,0.75" ID x 17.00"

3/4" x 17"

2шт.

5

84391398

HYDRAULIC HOSE,19.05mm ID x 457.2mm L

3/4" x 18", Start Year: 01-JAN-11

2шт.

6

87015358

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm

1шт.

7

86564910

DUST CAP

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

86563528

HYD CONNECTOR

2шт.

11

86595672

ORIFICE

1шт.
