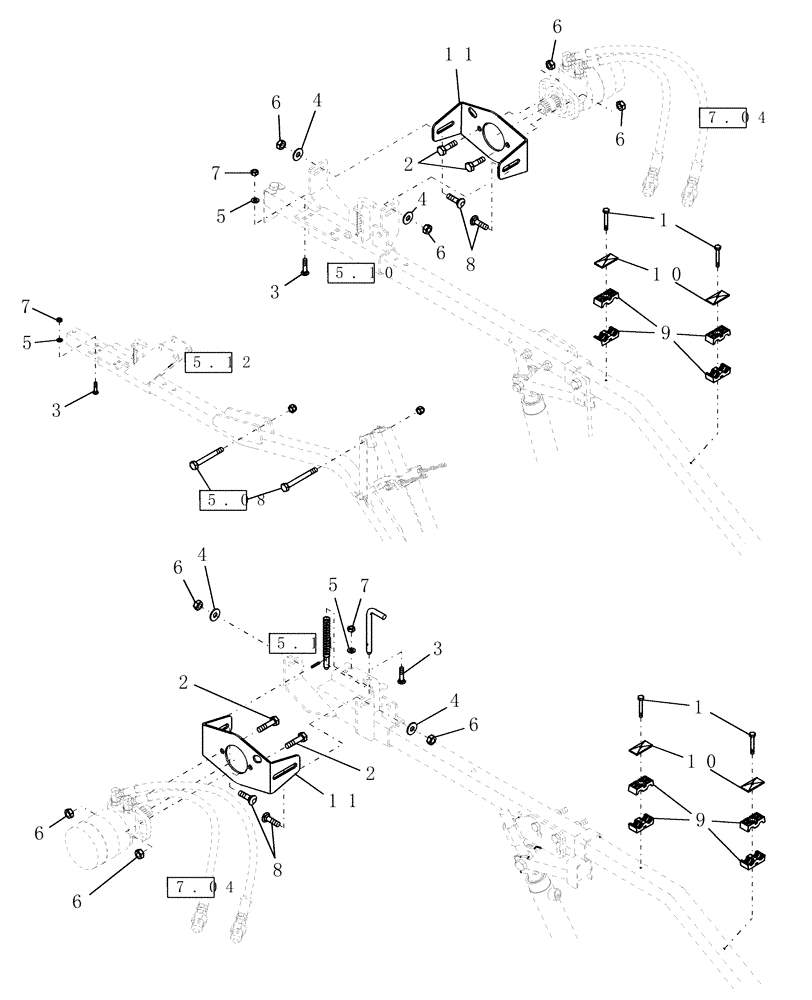

Запчасти Case IH DHX181 (5.09) - REEL MOUNT, 18 TO 36 FT, 2DR, PRIOR TO PIN K01 2002 (13) - REEL

1

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

4

495-21056

WASHER,1/2"

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

6

232-4148

NUT,1/2"-13, GC

8шт.

7

232-4146

NUT,3/8"-16, GC

2шт.

8

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

9

86563609

CLAMP

8шт.

10

790242

COVER

4шт.

11

86561650

MOUNTING PLATE

Motor, HCC Reel

2шт.
