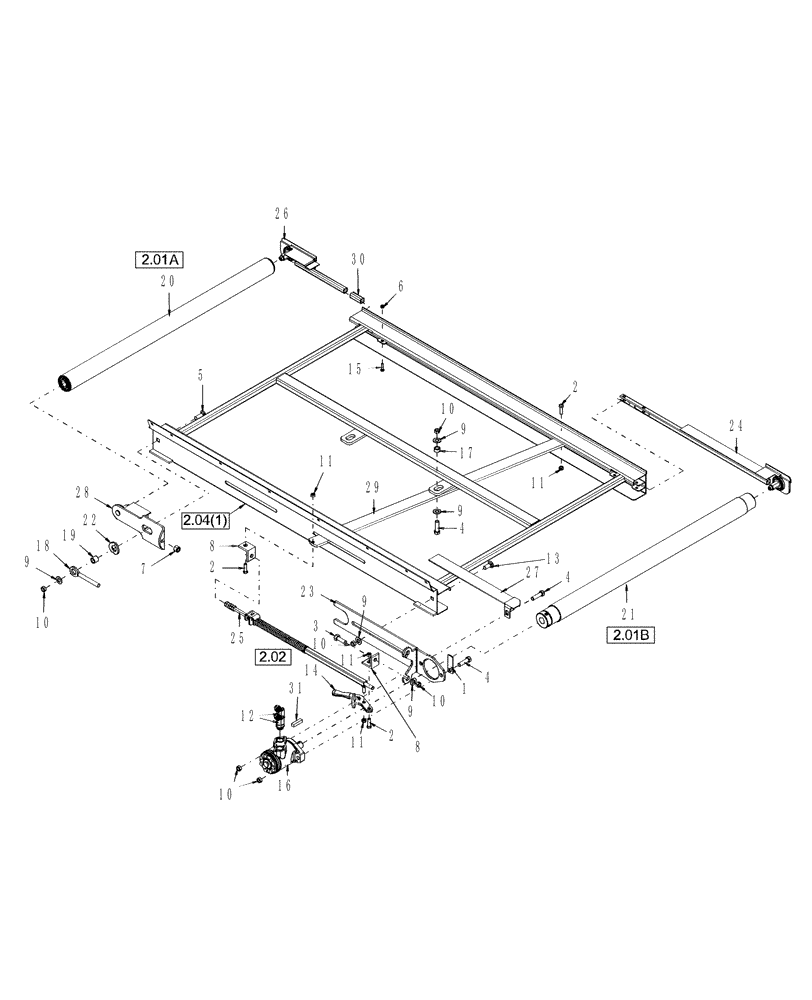

Запчасти Case IH DHX181 (2.01[2]) - DECK, RH, 18 FT, FROM PIN K01 2002 (12) - MAIN FRAME

1

86578677

CONNECTING LINK

Retainer, Tab Extension

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

5

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

6

86532

LOCK NUT

Nylon, 1/4"

1шт.

7

80566

NUT

G5, 1/2"-13

1шт.

8

87038594

ANGLE

2шт.

9

495-21056

WASHER,1/2"

4шт.

10

232-4148

NUT,1/2"-13, GC

6шт.

11

232-4146

NUT,3/8"-16, GC

4шт.

12

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45°, 5/8"; Incl. O-Ring

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

14

87038598

PUSH-PULL COUPLING

Quick Release

1шт.

15

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1шт.

16

86560844

HYDRAULIC MOTOR

Includes: Ref. 31

1шт.

84136262R

REMAN-HYD MOTOR

DHX181 (3/02-3/05) , Reman for New P/N 86560844

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

17

86563235

SPACER

1шт.

18

86560834

THREADED ROD

1шт.

19

86563188

SPACER

1шт.

20

86560835

ROLLER

Idler

1шт.

21

86566165

ROLLER

Drive

1шт.

22

87038603

SPRING WASHER

1шт.

23

87397822

MOUNTING PLATE

Plate

1шт.

24

86560845

ROD

1шт.

Prior To PIN K01 2003

1шт.

24

87050560

TRUSS ROD

Adj., RH

1шт.

From PIN K012003

1шт.

25

87038585

TENSIONER

1шт.

26

86560846

ROD

1шт.

Prior To PIN K01 2003

1шт.

26

87050558

TRUSS ROD

Fixed, LH

1шт.

From PIN K012003

1шт.

27

87038596

PLATE

Filler

1шт.

28

86560840

PLATE

1шт.

29

86560841

STABILIZER BAR

1шт.

30

87050553

SPACER

1шт.

31

87380339

KEY

Key

1шт.
