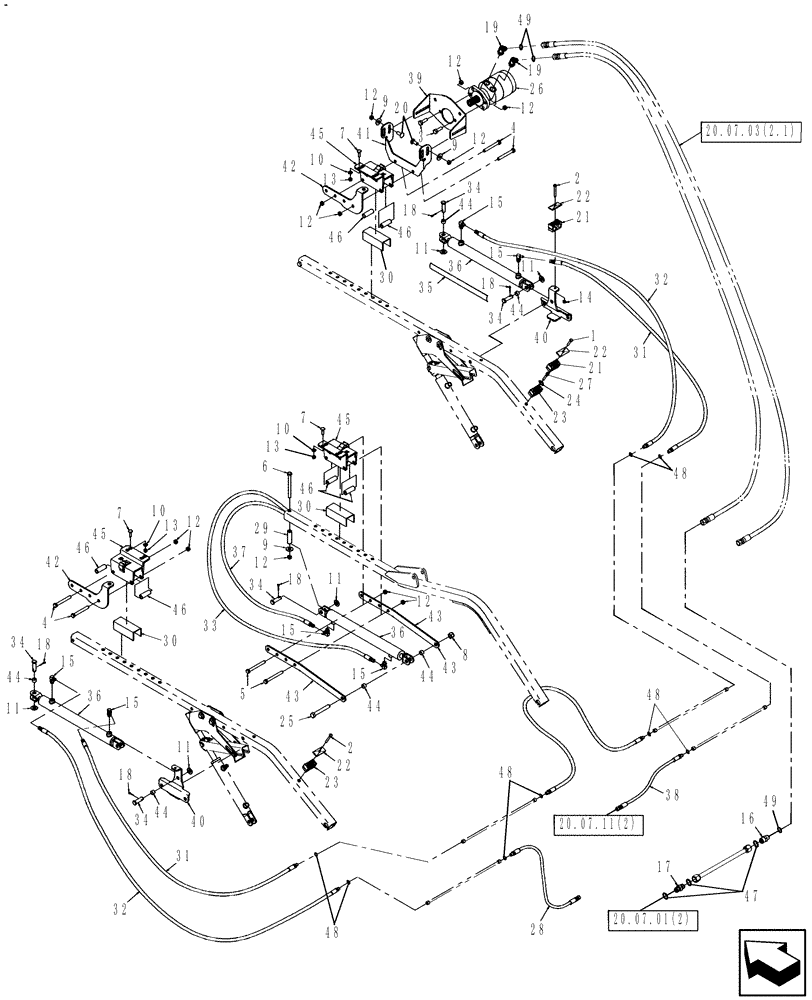

Запчасти Case IH DH362 (20.07.10[2]) - HYD FORE/AFT, SPLIT REEL, FROM PIN Y9ZB00735 (07) - HYDRAULICS

1

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

2

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

5

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

6

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

7

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

12шт.

8

86520346

NUT,5/8"-11, GB

1шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

3шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

12шт.

11

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

12

88871

NUT,1/2"-13, GC

11шт.

13

88902

NUT,3/8"-16

12шт.

14

280736

NUT,5/16"-18, GC

1шт.

15

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

6шт.

16

86514208

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree

1шт.

17

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

18

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

5шт.

19

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

2шт.

20

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

21

86563609

CLAMP

2шт.

22

87053042

PLATE

3шт.

23

790240

CLAMP

2шт.

24

86564909

WASHER

1шт.

25

86597433

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 5

1шт.

26

87018389

HYDRAULIC MOTOR

1шт.

27

84122149

BOLT

1шт.

28

84271573

HYDRAULIC HOSE,0.25" ID x 48.00"

1шт.

29

86616818

SPACER

1шт.

30

87019635

CHANNEL

3шт.

31

87019680

HOSE,6.35 mm ID x 863.60 mm

2шт.

32

87019681

HOSE,6.35 mm ID x 1270.00 mm

2шт.

33

84395649

HYDRAULIC HOSE

107" Long

1шт.

34

87381555

CLEVIS PIN

5шт.

35

87629232

DECAL

Fore/Aft Indicator

1шт.

36

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

3шт.

37

84122146

HOSE

90" Long

1шт.

38

84271567

HYDRAULIC HOSE,0.25" ID x 97.00"

1шт.

39

86561650

MOUNTING PLATE

1шт.

40

87019390

LUG

2шт.

41

87019632

MOUNTING PLATE

1шт.

42

87019633

LUG

2шт.

43

87042752

LUG

2шт.

44

86561940

SPACER

6шт.

45

87042843

ARM

3шт.

46

87019634

SPACER

6шт.

47

84370318

CLIP

Seal, #12

3шт.

48

84391395

CLIP

Seal, #6, Serial Range: -86514208

8шт.

49

84370317

CLIP

Seal, #10

3шт.
