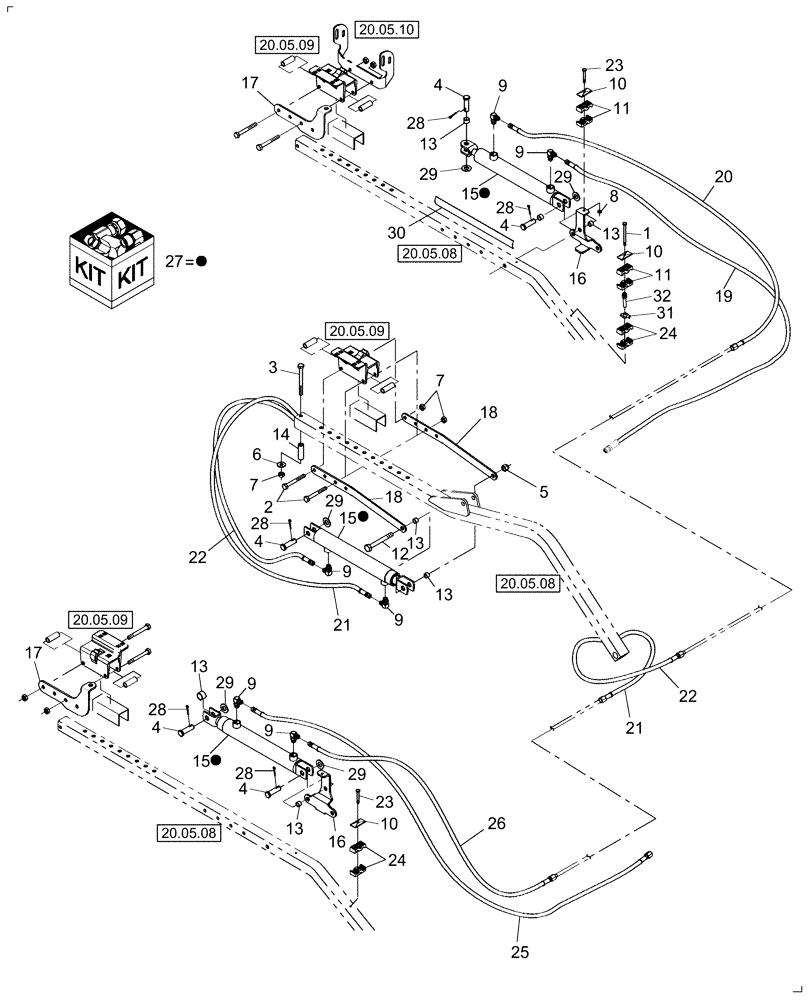

Запчасти Case IH DH362 (20.07.10[1]) - HYD FORE/AFT KIT, SPLIT REEL (07) - HYDRAULICS

1

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

2

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

3

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

4

87381555

CLEVIS PIN

5шт.

5

86520346

NUT,5/8"-11, GB

1шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

7

88871

NUT,1/2"-13, GC

3шт.

8

280736

NUT,5/16"-18, GC

1шт.

9

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

6шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

10

87053042

PLATE

3шт.

11

86563609

CLAMP

4шт.

12

86597433

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 5

1шт.

13

86561940

SPACER

6шт.

14

86616818

SPACER

1шт.

15

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

See Ref 27

3шт.

16

87019390

LUG

Rear

2шт.

17

87019633

LUG

Front

2шт.

18

87042752

LUG

Center, Lg Cyl

2шт.

19

87057512

HOSE ASSY.

305"

2шт.

20

87019681

HOSE,6.35 mm ID x 1270.00 mm

2шт.

21

84395649

HYDRAULIC HOSE

107"

1шт.

22

84122146

HOSE

90"

1шт.

23

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

24

790240

CLAMP

4шт.

25

84123282

HYDRAULIC HOSE

1шт.

26

87019680

HOSE,6.35 mm ID x 863.60 mm

1шт.

27

87487171

SEAL KIT

Services Ref. 15

1шт.

28

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

5шт.

29

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

30

87629232

DECAL

F/A Indicator

1шт.

31

86564909

WASHER

Safety

1шт.

32

84122149

BOLT

1шт.
