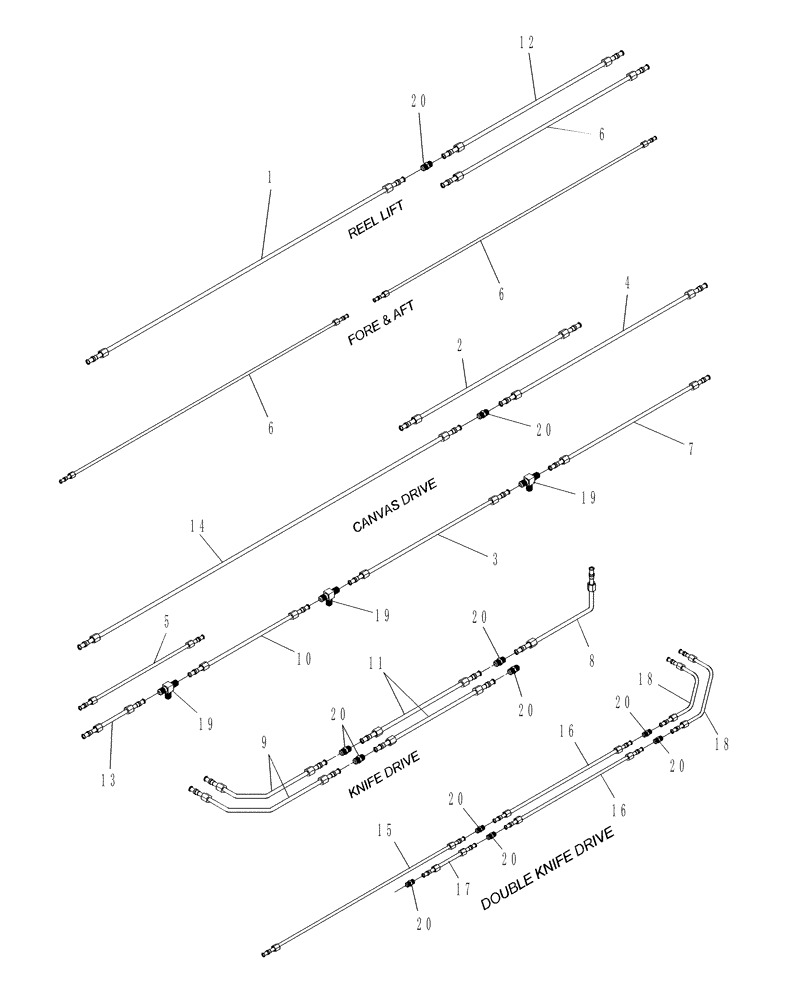

Запчасти Case IH DH362 (20.07.08) - STEEL LINES, 36 FT. PRIOR PIN Y9ZB00735 (07) - HYDRAULICS

1

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

1шт.

2

86563683

HYD TUBE,0.75" DIA x 120" L

3/4" x 120"

1шт.

3

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

4

86590550

HYD TUBE,0.75" DIA x 176.00" L

3/4" x 176"

1шт.

5

86563663

HYD TUBE,0.75" DIA x 110" L

3/4" x 110"

1шт.

6

86563833

HYD TUBE,0.375" OD x 205" L

3/8" x 205"

3шт.

Split Reel Only

1шт.

7

87052681

HYD TUBE,0.75" DIA x 164" L

3/4" x 164"

1шт.

8

86592556

HYD TUBE

3/4" x 21"

1шт.

9

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

10

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

11

87015359

HYD TUBE,0.75" DIA x 117" L

3/4" x 117"

2шт.

12

87015360

HYD TUBE,0.375" DIA x 176" L

3/8" x 176"

1шт.

13

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

14

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.

15

86563639

HYD TUBE,0.75" DIA x 74" L

3/4" x 74"

1шт.

16

87052680

HYD TUBE,0.75" DIA x 231" L

3/4" x 231"

2шт.

17

87052679

HYD TUBE,0.75" DIA x 37" L

3/4" x 37"

1шт.

18

87030027

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

19

80015694

TEE,1 1/16"-12 37 Degree

3шт.

20

86563521

HYD CONNECTOR

10шт.
