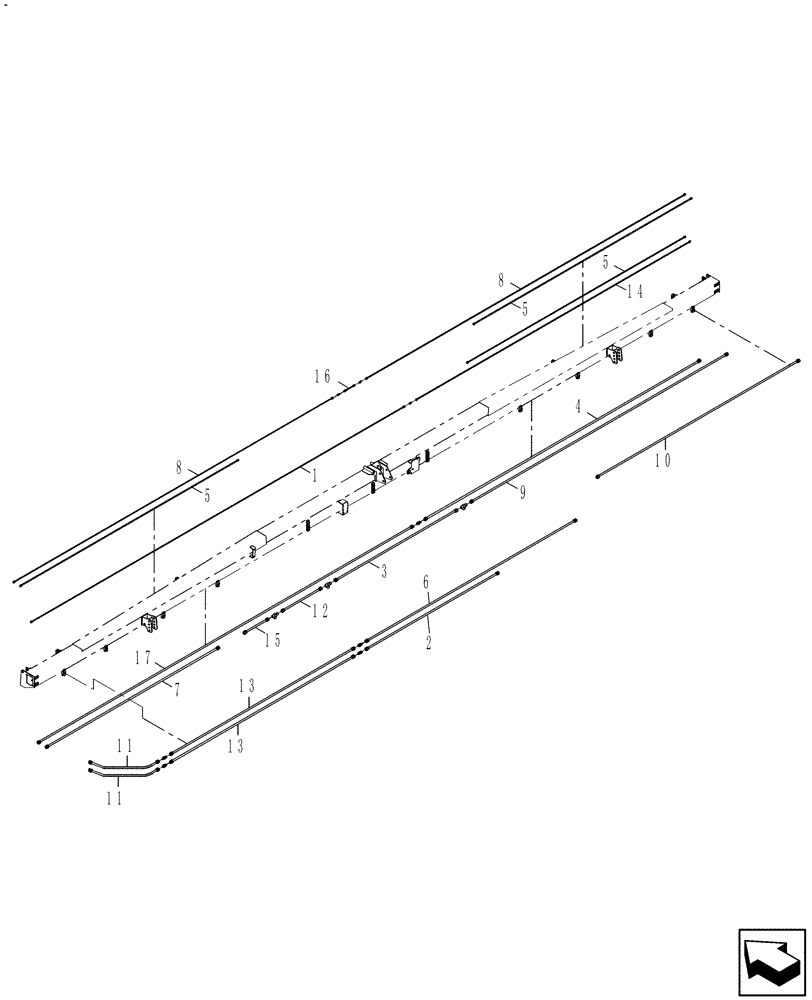

Запчасти Case IH DH362 (20.07.07[12]) - STEEL LINES, SINGLE SWATH, SOLID REEL, 36 FT., FROM PIN YAZB01204 (07) - HYDRAULICS

1

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

1шт.

2

87546412

HYD TUBE,.75" DIA x 84" L

3/4" x 84"

1шт.

3

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

4

86590550

HYD TUBE,0.75" DIA x 176.00" L

3/4" x 176"

1шт.

5

84330753

HYD TUBE

3/8" x 140"

3шт.

6

86563662

HYD TUBE,0.75" DIA x 134" L

3/4" x 134"

1шт.

7

86563663

HYD TUBE,0.75" DIA x 110" L

3/4" x 110"

2шт.

8

86563833

HYD TUBE,0.375" OD x 205" L

3/8" x 205"

2шт.

9

87052681

HYD TUBE,0.75" DIA x 164" L

3/4" x 164"

1шт.

10

86563847

HYD TUBE,0.75" DIA x 129" L

3/4" x 129"

1шт.

11

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

12

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

13

87015359

HYD TUBE,0.75" DIA x 117" L

3/4" x 117"

2шт.

14

87015360

HYD TUBE,0.375" DIA x 176" L

3/8" x 176"

1шт.

15

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

16

87380825

HYD TUBE,.375" DIA x 6" L

3/8" x 6"

1шт.

17

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.
