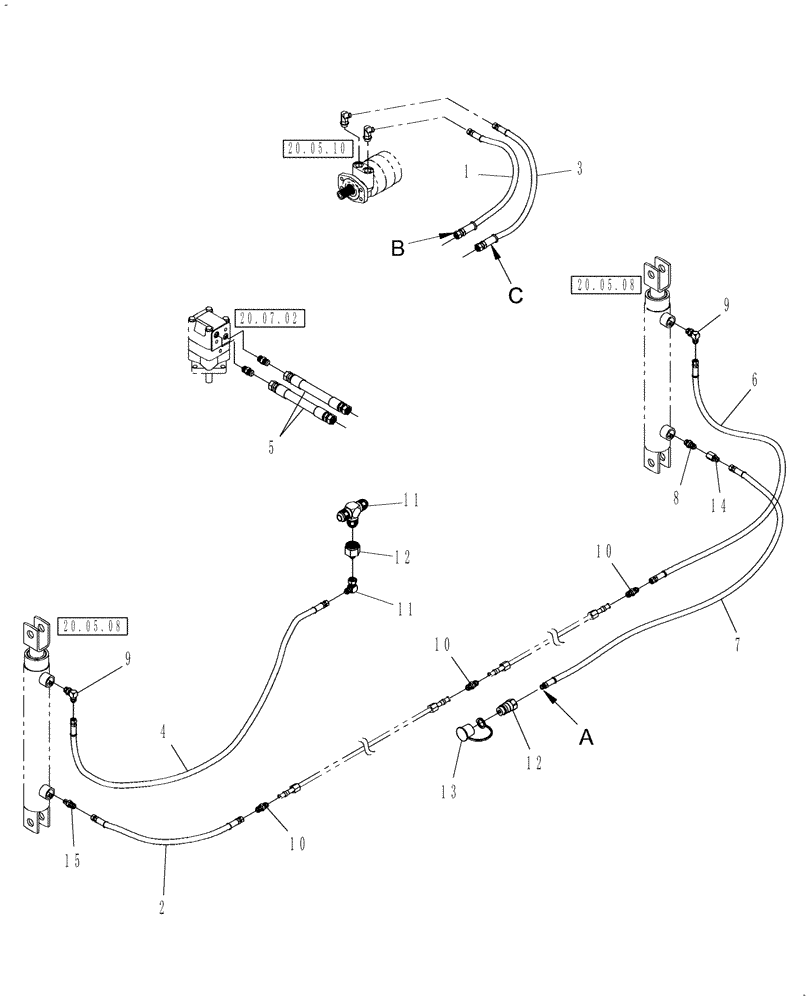

Запчасти Case IH DH362 (20.07.03[3]) - HYDRAULICS, REEL LIFT & DRIVE, SOLID REEL (07) - HYDRAULICS

1

87052683

HOSE ASSY.

1шт.

2

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

1шт.

3

87052005

HYDRAULIC HOSE

1/2" x 110"

1шт.

4

86563848

HYDRAULIC HOSE

1шт.

5

86705078

HYDRAULIC HOSE,0.75" ID x 17.00"

3/4" x 17"

2шт.

5

84391398

HYDRAULIC HOSE,19.05mm ID x 457.2mm L

3/4" x 18", Start Serial: YAZB01204

1шт.

6

87015358

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm

1шт.

7

87056815

HOSE ASSY.

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

86563528

HYD CONNECTOR

Nipple, -6

3шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

12

86563543

ADAPTER

1шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

9801618

QUICK MALE COUPLING,1/2" - 14

1шт.

15

86564910

DUST CAP

1шт.

16

86595672

ORIFICE

.06"

1шт.

17

9706918

HYD CONNECTOR,9/16" - 18 JIC x 1/4" - 18 NPT

1шт.
