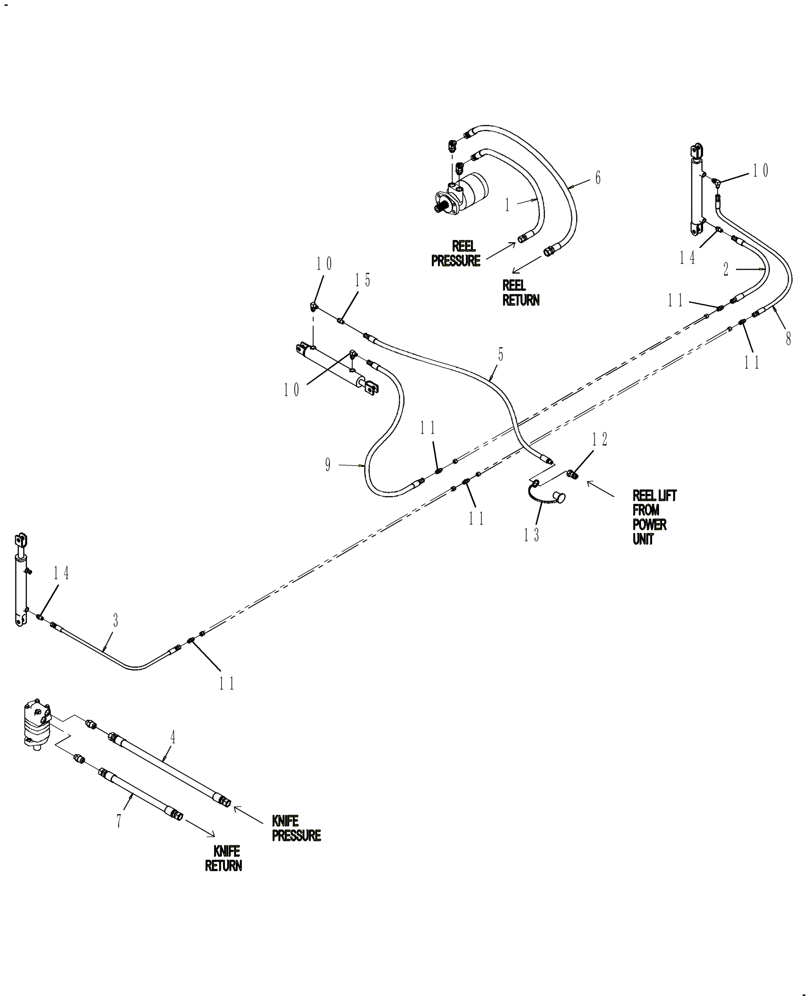

Запчасти Case IH DH362 (20.07.03[2.1]) - HYDRAULICS, REEL LIFT & DRIVE, SPLIT REEL, FROM PIN Y9ZB00735 (07) - HYDRAULICS

1

86563809

HYDRAULIC HOSE,12.70 mm ID x 2235.20 mm

1шт.

2

86599675

HYDRAULIC HOSE

3/8" x 30"

1шт.

3

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

1шт.

4

86563558

HYDRAULIC HOSE,19.05 mm ID x 482.60 mm

1шт.

5

87052682

HOSE ASSY.

3/8" x 138"

1шт.

6

87052005

HYDRAULIC HOSE

1/2" x 110"

1шт.

7

86705078

HYDRAULIC HOSE,0.75" ID x 17.00"

3/4" x 17"

1шт.

7

84391398

HYDRAULIC HOSE,19.05mm ID x 457.2mm L

3/4" x 18", Start Serial: YAZB01204

1шт.

8

87015358

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm

1шт.

9

86900178

HYDRAULIC HOSE,0.38" ID x 50.00"

3/8" x 50"

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

11

86563528

HYD CONNECTOR

3/8"

5шт.

12

9801618

QUICK MALE COUPLING,1/2" - 14

1/2"

1шт.

13

86564910

DUST CAP

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

15

86595672

ORIFICE

1шт.
