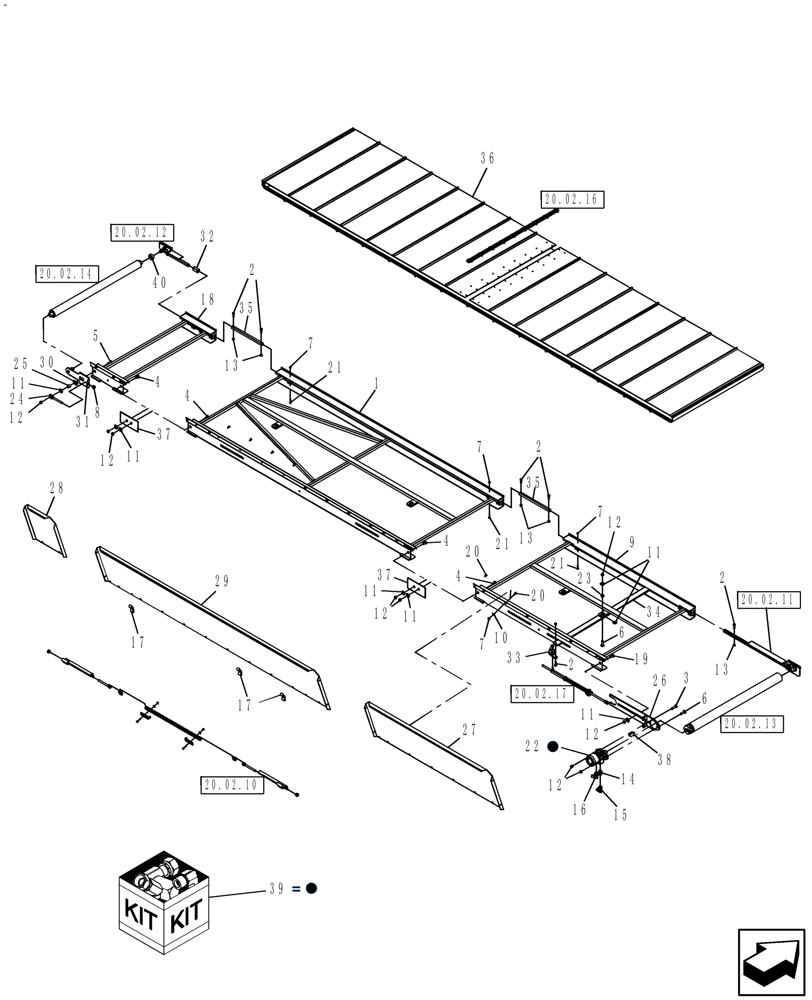

Запчасти Case IH DH362 (20.02.04) - DRAPER DECK, LH & RH, 36 FT (15) - CROP CONDITIONING

1

84136104

ASSEMBLY

2шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

4

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

5

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

86532

LOCK NUT

1/4"-20

58шт.

8

80566

NUT

1/2"-13

6шт.

9

84477477

DRAPER

64.5"

4шт.

10

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

52шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

16шт.

12

88871

NUT,1/2"-13, GC

18шт.

13

88902

NUT,3/8"-16

14шт.

14

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

15

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

16

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

17

86563519

CLAMP

6шт.

18

84178217

FRAME

14", W/V Groove

4шт.

18

84386138

FRAME

14", From PIN YAZB01204

4шт.

19

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

20

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

48шт.

21

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

10шт.

22

84136262

HYDRAULIC MOTOR

Parker, 41cc, 1" Shaft

2шт.

84136262R

REMAN-HYD MOTOR

DH362 (1/09-)

2шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

23

86563235

SPACER

2шт.

24

86560834

THREADED ROD

1/2"-13

4шт.

25

86563188

SPACER

1шт.

26

87738786

PLATE

2шт.

27

86640039

PANEL

58"

2шт.

28

86560823

PANEL

14"

2шт.

29

87038741

PANEL

102"

2шт.

30

87038603

SPRING WASHER

7/8", Special, Bent

2шт.

31

87629156

IDLER

2шт.

32

87050553

SPACER

2шт.

33

87038598

PUSH-PULL COUPLING

2шт.

34

86560841

STABILIZER BAR

2шт.

34

84197266

BAR

2шт.

From Pin YAZB00998

1шт.

35

86563518

TUBE

2шт.

36

84188575

CANVAS

42" x 350", V/Skim, Single Swath

2шт.

From PIN Y9ZB00735

1шт.

36

84316726

CANVAS

42" x 350", V/FXS, Single Swath

2шт.

From Pin YAZB00998

1шт.

36

84388973

BELT

42" x 350", GDD Raptor V-3, Single Swath

2шт.

From PIN YAZB01204

1шт.

36

84188579

BELT

42" x 378", V/SKIM, Double Swath

2шт.

From PIN Y9ZB00735

1шт.

36

84316728

CANVAS

42" x 378", V/FXS, Double Swath

2шт.

From Pin YAZB00998

1шт.

36

84480130

BELT

42" x 378", GDD Raptor V-3, Double Swath

2шт.

From PIN YAZB01204

1шт.

37

86563517

PLATE, SUPPORT

4шт.

38

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

39

84135785

SEAL KIT

Ref 22

4шт.

40

84265972

INSERT

1шт.
