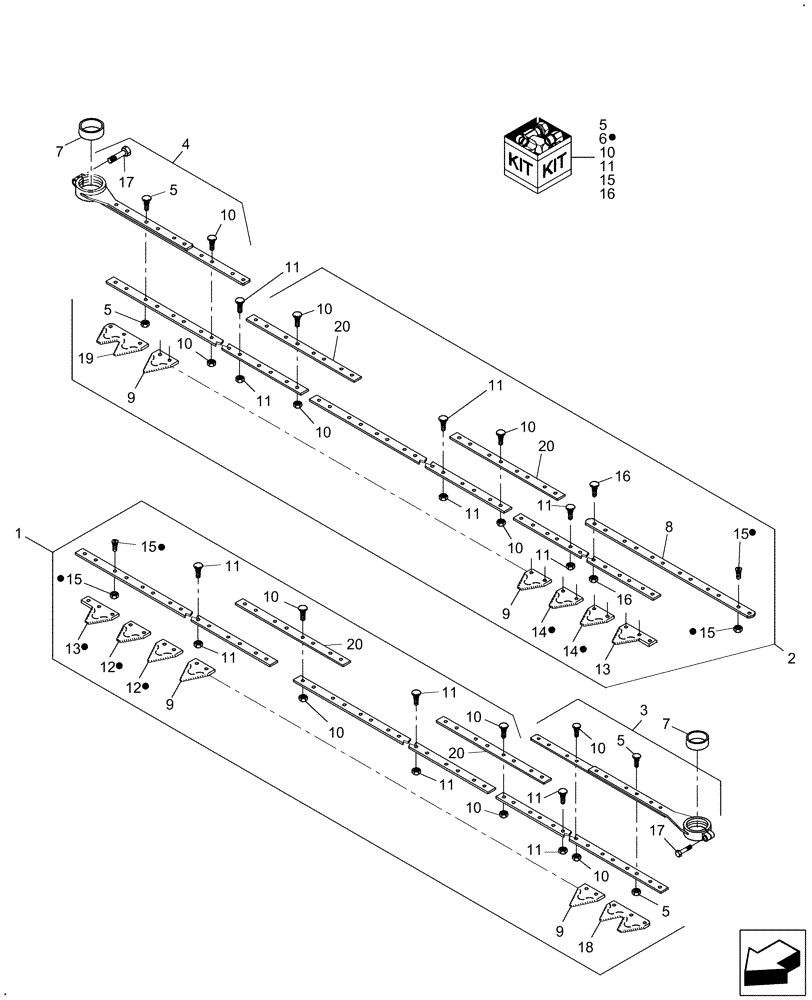

Запчасти Case IH DH362 (20.04.21[3]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS, 36 FT (14) - CROP CUTTING

1

87056017

KNIFE ASSY

LH, 18 Ft

1шт.

2

87056018

KNIFE ASSY

RH, 18 Ft

1шт.

3

87724638

KNIFE HEAD

LH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

4

87724639

KNIFE HEAD

RH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

5

86507780

KIT

Kit, (25 Of Each), #12 x 1-1/8" (Each Knife Requires 6 Bolts)

1шт.

6

86616560

KIT

Overlap; Ref.s 12 (2), 13 (1), 14 (3), & 15 (13 Nuts & Bolts): Must also order Qty 1 extra Ref 13

1шт.

7

87672659

INSERT

Steel

2шт.

8

84179065

KNIFE

RH Only

1шт.

9

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

LH (69), RH (70)

1шт.

10

86507778

KIT

#12 x 7/8"; Qty (25) Nuts & Bolts (Each Knife Requires 19 Bolts)

1шт.

11

86507777

KIT

(Qty 50 Each), #12 x 5/8"; LH (114), RH (113)

1шт.

12

86615986

KNIFE SECTION

2шт.

13

86615985

KNIFE SECTION

LH

2шт.

14

86615987

KNIFE SECTION

RH

2шт.

15

86512289

KIT

Overlap Kit, Hex Socket, Flat Hd, Round Serrated Shank,#12 x 1/2"; Includes: (25) Bolts & Nuts. LH Requires 7 Bolts, RH Requires 5 Bolts

1шт.

16

86517390

BOLT AND NUT

Kit, (25 Of Each), #12 x 3/4"; RH Knife Only; Requires 6 Bolts

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

18

86617759

KNIFE SECTION

End, LH

1шт.

19

86617760

KNIFE SECTION

End, RH

1шт.

20

87048307

LOCKING BAR

4шт.
