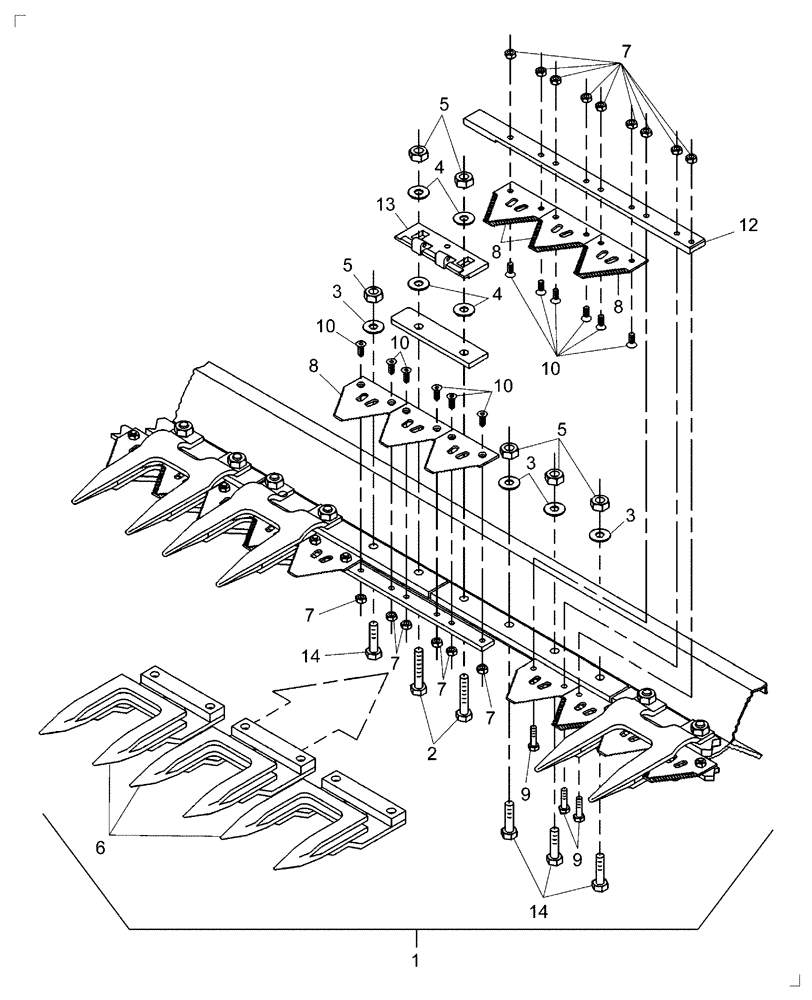

Запчасти Case IH DH302 (20.04.12) - DOUBLE KNIFE DRIVE, OVERLAP KIT (14) - CROP CUTTING

1

86561400

KIT

Overlap

1шт.

2

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

14шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

5

9637692

NUT,3/8"-16, Gr B

6шт.

6

86564361

GUARD

3шт.

7

353308

NUT,M6 x 1.0, Cl 8

15шт.

8

86564363

KNIFE

Section [To be, Serial Range: revised-HB27812]

6шт.

9

86563536

BOLT

M6 x 28

3шт.

10

86564364

BOLT

M6 x 16 C/Sunk [To be, Serial Range: revised-HB27811]

12шт.

11

86564985

SPACER

1шт.

12

86616609

STRAP

1шт.

13

86639835

CLAMP BRACKET

1шт.

14

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
