Запчасти Case IH DH302 (20.04.11[2.1]) - DOUBLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, KNIFE SECTIONS, MY11 (14) - CROP CUTTING

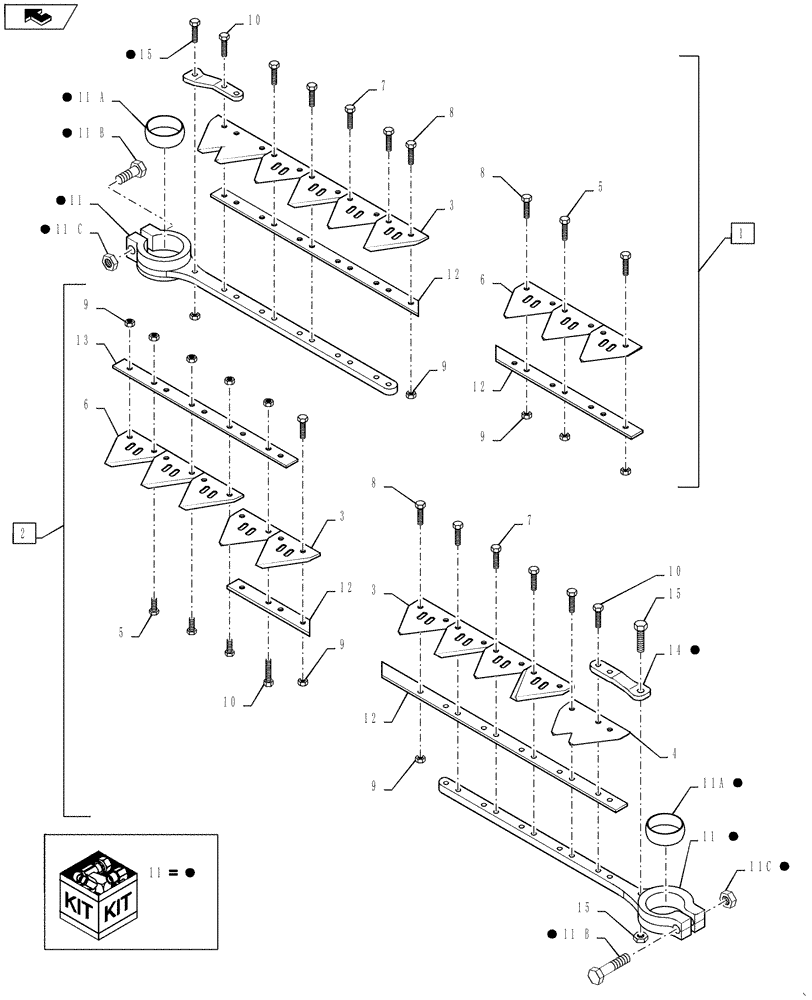

Схема запчастей Case IH DH302 - (20.04.11[2.1]) - DOUBLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, KNIFE SECTIONS, MY11 (14) - CROP CUTTING
11
8
1
9
11 b
9
4
3
11
11a
7
11b
5
11
14
11
11
15
11
11b
11
11c
11
6
11
12
12
home
9
10
3
11
2
11
11 a
7
3
9
13
10
15
12
11
5
9
11
11
12
15
11 c
8
8
11 b
10
6

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Right Hand, 30 Ft.

1шт.

1

84523374

KNIFE ASSY

Right Hand, 36 Ft.

1шт.

2

NSS

NOT SOLD SEPARAT

Left Hand, 30 Ft.

1шт.

2

84523373

KNIFE ASSY

Left Hand, 36 Ft.

1шт.

3

86561692

KNIFE

Sickle Sec, Pro-Cut C, Qty. [113] 30 Ft., [138] 36 Ft.

1шт.

4

NSS

NOT SOLD SEPARAT

Twin Point

2шт.

5

84242661

BOLT

M6 x 1.0 x 16, Countersunk

12шт.

6

84242662

KNIFE SECTION

Countersunk, Overlap

6шт.

7

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

16шт.

8

86563537

BOLT

M6 x 16, Spline, Qty. [209] 30 Ft., [259] 36 Ft.

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

Qty. [244] 30 Ft., [294] 36 Ft.

1шт.

10

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

11

84331180

KNIFE

2шт.

11a

87672659

INSERT

2шт.

11b

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

11c

88871

NUT,1/2"-13, GC

2шт.

12

NSS

NOT SOLD SEPARAT

Knifeback

2шт.

13

86616609

STRAP

Bar Overlap Strap, 3 Section

1шт.

14

84474169

STRAP

2шт.

15

280736

NUT,5/16"-18, GC

1шт.

Выбрано товаров: 20
