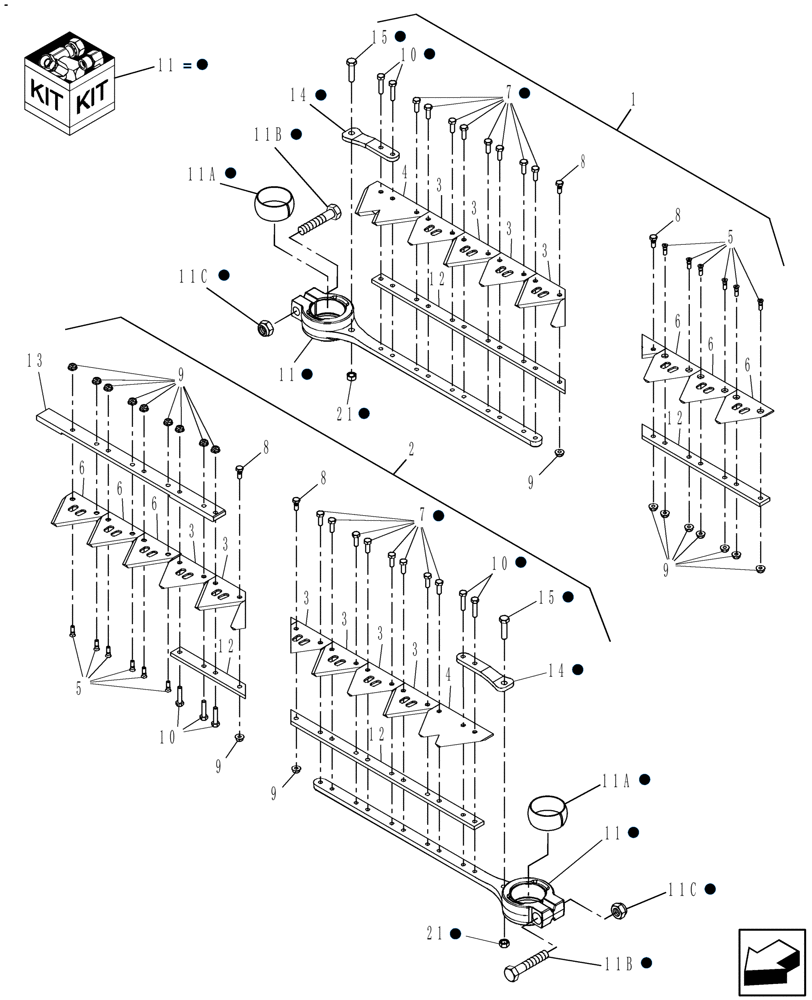

Запчасти Case IH DH302 (20.04.11[2]) - DOUBLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, KNIFE SECTIONS, FROM PIN YAZB00998 (14) - CROP CUTTING

1

84241605

KNIFE ASSY

RH, 30 Ft.

1шт.

1

84241607

KNIFE ASSY

RH, 36 Ft.

1шт.

2

84241604

KNIFE ASSY

LH, 30 Ft.

1шт.

2

84241606

KNIFE ASSY

LH, 36 Ft.

1шт.

3

86561692

KNIFE

Sickle Sec, Pro-Cut C, Qty. [113] 30 Ft., [138] 36 Ft.

1шт.

4

87037117

KNIFE SECTION

Twin Point

2шт.

5

84242661

BOLT

M6 x 1.0 x 16, Countersunk

12шт.

6

84242662

KNIFE SECTION

Countersunk, Overlap

6шт.

7

86563535

BOLT

M6 x 18

16шт.

8

86563537

BOLT

M6 x 16, Spline, Qty. [209] 30 Ft., [259] 36 Ft.

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

Qty. [224] 30 Ft., [274] 36 Ft.

1шт.

10

86563536

BOLT

M6 x 28

7шт.

11

84241612

KNIFE HEAD

Includes: Qty. [1] of Ref. 14, 15 and 21, [8] of Ref. 7 and [ 2] of Ref. 10.

2шт.

11a

87672659

INSERT

2шт.

11b

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

11c

88871

NUT,1/2"-13, GC

2шт.

12

NSS

NOT SOLD SEPARAT

Knifeback

2шт.

13

86616609

STRAP

Bar Overlap Strap, 3 Section

1шт.

14

84241614

STRAP

2шт.

21

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.
