(20.04.03[1]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 25 FT TO 36 FT, KNIFE SECTION, FROM PIN YAZB00998

Запчасти Case IH DH302 (20.04.03[1]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 25 FT TO 36 FT, KNIFE SECTION, FROM PIN YAZB00998 (14) - CROP CUTTING

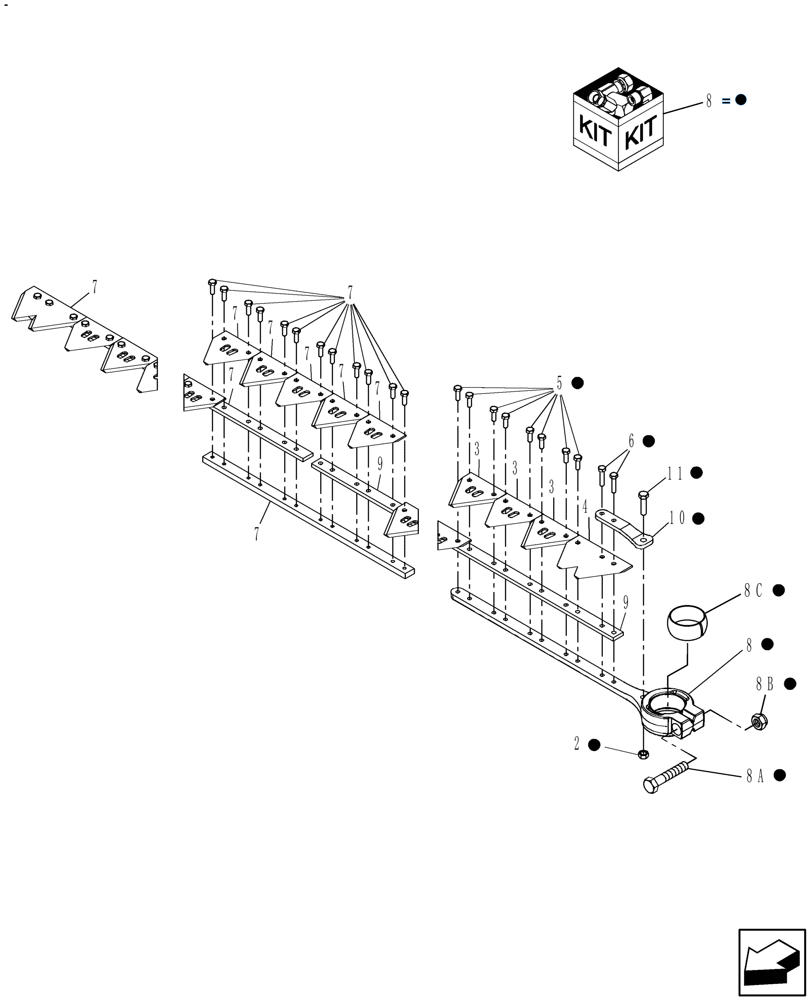

Схема запчастей Case IH DH302 - (20.04.03[1]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 25 FT TO 36 FT, KNIFE SECTION, FROM PIN YAZB00998 (14) - CROP CUTTING
7
7
5
7
7
7
9
3
9
2
3
7
8c
10
8b
6
8
7
8
3
8a
7
7
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84274200

KNIFE ASSY

25 Ft.

1шт.

1

84274194

KNIFE ASSY

30 Ft.

1шт.

1

84274203

KNIFE ASSY

36 Ft.

1шт.

2

280736

NUT,5/16"-18, GC

1шт.

3

86561692

KNIFE

Sickle Sec. Pro-Cut

3шт.

4

87037117

KNIFE SECTION

Twin Point

1шт.

5

86563535

BOLT

M6 x 18

8шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

7

NSS

NOT SOLD SEPARAT

Knife, LH

1шт.

8

84241612

KNIFE HEAD

Includes: Qty. [1] of Ref. 2, 10 and 11, [8] of 5 and [2] of 6

1шт.

8a

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

9

NSS

NOT SOLD SEPARAT

Knife, Common

1шт.

8b

88871

NUT,1/2"-13, GC

1шт.

10

84241614

STRAP

1шт.

8c

87672659

INSERT

1шт.

11

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.
