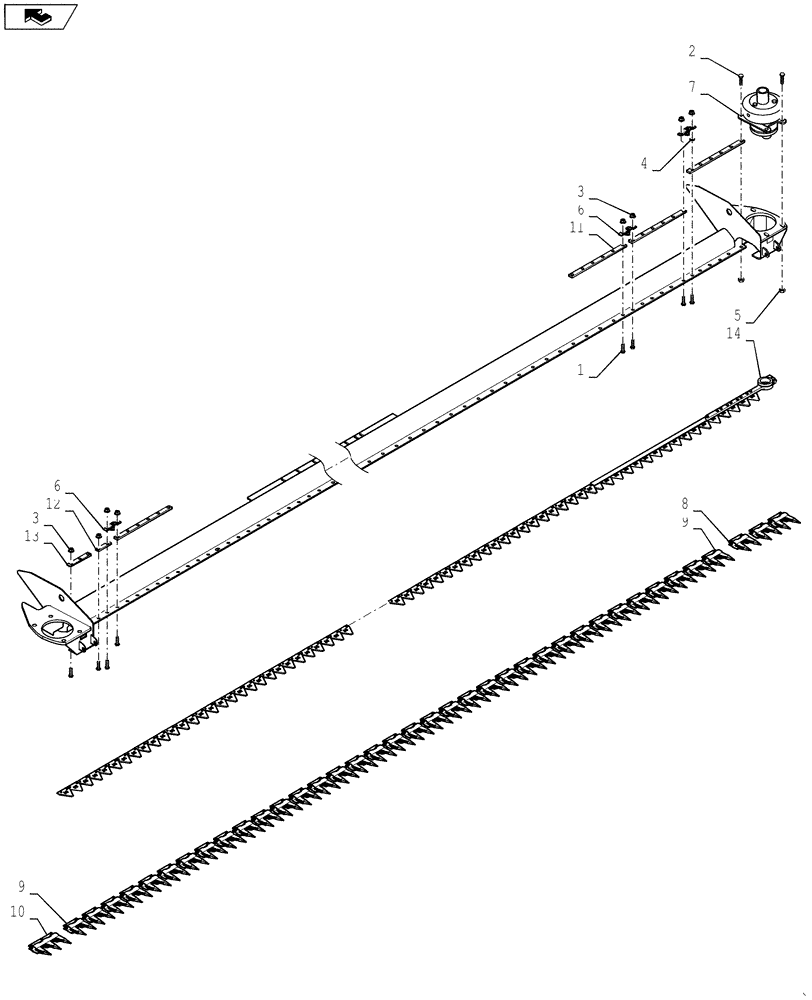

Запчасти Case IH DH302 (20.04.01[2.1]) - SINGLE KNIFE DRIVE, SCHUMACHER CUTTING SYSTEM, 25 FT TO 30 FT, KNIFE SECTION, MY12 (14) - CROP CUTTING

1

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

25 FT - Qty (101), 30 FT - Qty (121)

1шт.

2

86551024

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 8

4шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

25 FT - Qty (101), 30 FT - Qty (121)

1шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

3шт.

5

9802182

LOCK NUT,1/2"-20, GB

4шт.

6

87670866

ROLLER

25 FT - Qty (16), 30 FT - Qty (19)

1шт.

7

84274201

DRIVE

1шт.

7

84274201R

REMAN-WOBBLE BOX

DH252, DH302, Both DRAPER HEADER, SCHUMACHER CUTTING SYSTEM, 25 FT TO 30 FT, KNIFE SECTION, MY12 (1/09-)

1шт.

7

84274201C

CORE-WOBBLE BOX

Return Number

1шт.

8

84314628

GUARD

3шт.

9

84476747

GUARD

25 FT - Qty (46), 30 FT - Qty (56)

1шт.

10

84476748

GUARD

1шт.

11

84476750

SPACER

25 FT - Qty (16), 30 FT - Qty (19): 7mm, 6 Hole

1шт.

12

84476751

SPACER

25 FT Only: 7mm, 2 Hole

1шт.

13

84476752

SPACER

7mm, 3 Hole

1шт.

13

84476754

SPACER

7mm, 4 Hole

1шт.

14

84477841

KNIFE ASSY

25 FT Only

1шт.

14

84477842

KNIFE ASSY

30 FT Only

1шт.
