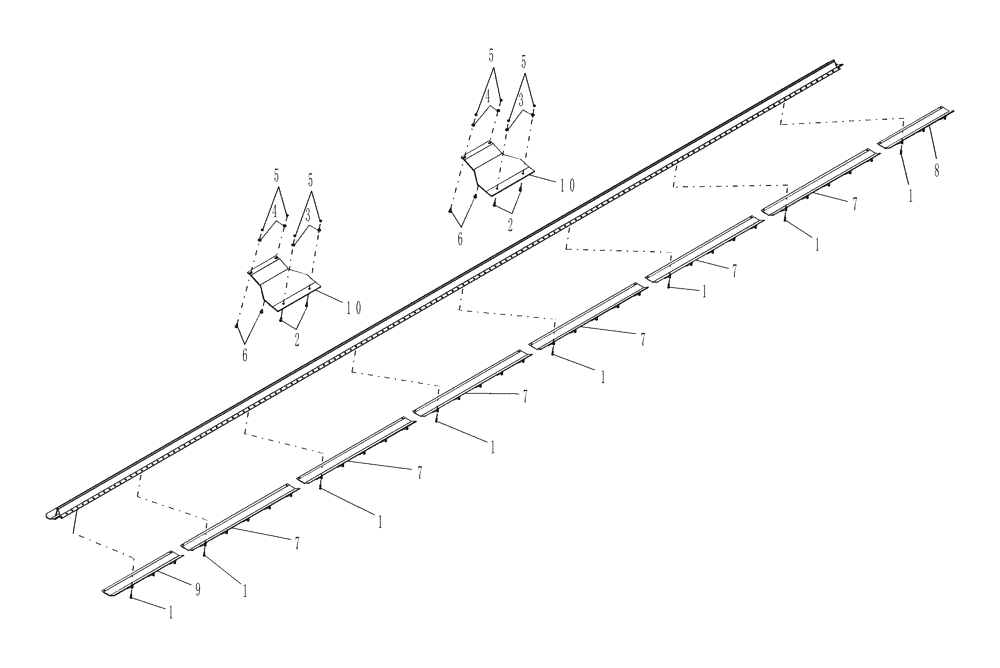

Запчасти Case IH DH302 (20.01.08[1]) - CUTTERBAR STEEL SKID PLATES; CIH CUTTING SYSTEM (14) - CROP CUTTING

1

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

DHX182 (18), DHX212 (21), DHX252 (25), DHX302 (30), & DHX362 (36)

1шт.

2

280320

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

3

495-21056

WASHER,1/2"

4шт.

4

495-11053

WASHER,1/2", SAE

4шт.

5

232-4148

NUT,1/2"-13, GC

8шт.

6

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

7

87056308

SKID PLATE

1шт.

DHX182 (3), DHX212 (3), DHX252 (5), DHX302 (6), DHX362 (6)

1шт.

8

87056309

SKID PLATE

1шт.

DHX182 (1), DHX212 (1), DHX252 (0), DHX302 (0), & DHX362 (1)

1шт.

9

87056309

SKID PLATE

1шт.

DHX212 Only

1шт.

9

87056310

SKID PLATE

1шт.

DHX362 Only

1шт.

10

NLS

NO LONGER SERVICED

No longer required. Did not meet design intent.

2шт.
