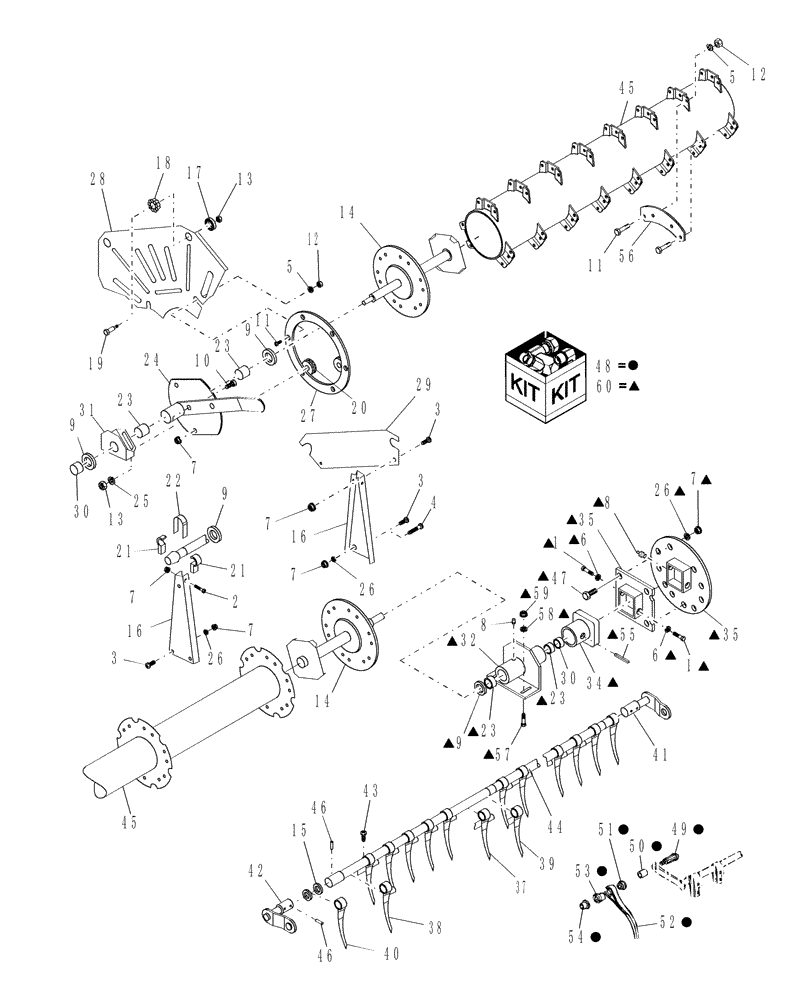

Запчасти Case IH DH302 (20.05.42) - HCC REEL (13) - REEL

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

36 Ft

2шт.

2

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

6

492-11038

LOCK WASHER,3/8"

36 Ft

1шт.

7

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

167934

WASHER,1.62" ID x 2.25" OD x 0.139"

1-5/8" ID x 2-1/4" OD x 1/8" Nom. Thk.

1шт.

10

86512428

CARRIAGE BOLT,Sq Nk, M12 x 40mm, Cl 8.8, Full Thd

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

12

825-1408

NUT,M8, Cl 8

1шт.

13

829-1412

NUT,M12, Cl 10.9

1шт.

14

86609388

SHAFT

Driving End

1шт.

14

87523838

SHAFT ASSY.

Driving End, DH363, Solid Reel Only

2шт.

15

86562533

WASHER,35.8mm ID x 46mm OD x 2.3mm Thk

1шт.

16

9842291

ARM

Reel

1шт.

16

87523837

ARM

Reel, DH363, Solid Reel Only

48шт.

17

86518392

ROLLER BEARING,30.963 mm ID x 52.4 mm OD x 14.5 mm

1шт.

18

86518393

PLUG,22 mm ID x 30 mm OD

1шт.

19

86518387

SCREW

HS, Shoulder, CL 9.8, M12 x 1.75 x 50

1шт.

20

86518386

BALL BEARING,10 mm ID x 38.97 mm OD x 44.15 mm

1шт.

21

9842300

BEARING ASSY,=H1204&I1204

1шт.

21

84166310

CLIP

1шт.

Ref 88C36P Grain Belt Header for Visual of Clip

1шт.

22

9842301

STRAP

Bearing

1шт.

23

167940

BUSHING,39.76mm ID x 44.53mm OD x 38.1mm L

1шт.

24

86518391

FRAME

Eccentric

1шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

27

167953

RING

1шт.

28

87672497

SHIELD

End

1шт.

29

9842298

SHIELD

Right Hand, End, DH182, DH212 & DH362

1шт.

30

86518431

COLLAR

1шт.

31

86562535

SUPPORT

Mount, LH

1шт.

32

86562536

SUPPORT

Mount, Center, DH182, DH212 & DH362

1шт.

33

Reference Not Used

1шт.

34

86562551

FLEXIBLE JOINT

Male, DH362

1шт.

35

87017883

UNIVERSAL JOINT

Kit, Female, DH362

1шт.

36

86562538

MOUNTING PLATE

Mount, RH, DH252, DH302 & DH362

1шт.

37

86608281

FINGER

Full Bat

1шт.

38

86608284

FINGER

RH Bat

1шт.

39

86608283

FINGER

LH Bat

1шт.

40

86608282

FINGER

No Bat

1шт.

41

9842250

ARM

Crank, RH Bracket

6шт.

42

9842251

ARM

Crank, LH Bracket

6шт.

43

9842264

SELF-TAP SCREW,Hex, M3.5 x 1.3 x 16mm

WH, #10 x 1/2"

1шт.

44

87017872

TUBE

18FT

1шт.

44

87017869

TUBE

Rigid, DH212

1шт.

44

87017857

TUBE

Rigid, DH252

1шт.

44

87017822

TUBE

Rigid, DH302

1шт.

44

87017871

SHAFT

DH362

1шт.

44

87017874

TUBE

Rigid, RH, DH362

1шт.

44

87053171

TUBE

Tube, DH362, Solid Reel Only

6шт.

45

87017871

SHAFT

Center, DH182

1шт.

45

87017870

SHAFT

Center, DH212

1шт.

45

87017858

SHAFT

Center, DH252

1шт.

45

87017823

SHAFT

Center, DH302

1шт.

45

87017871

SHAFT

Center, DH362

2шт.

45

87523835

SHAFT ASSY.

Center, DH362, Solid Reel Only

1шт.

46

86548577

PIN,8mm OD x 40mm L, Slotted

1шт.

47

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

DH362

4шт.

48

86559692

KIT

End Tine, One Reel Package

1шт.

49

167928

BOLT

Round Head, Hex Shank, 1/2"-20UNF x 2-1/2"

12шт.

50

167933

SPACER

12шт.

51

9601651

RETAINER

Auxiliary Finger

12шт.

52

9601650

FINGER

Auxiliary, Plastic

12шт.

53

9601652

BRACKET

Auxiliary Finger

12шт.

54

83936790

FLANGE NUT

Flg, USR, 1/2-"20

12шт.

55

86562178

ROLL PIN

1/2" x 2-1/2"

1шт.

56

86609773

PLATE

Anchor

1шт.

56

87053169

PLATE

Plate, Anchor, DH362, Solid Reel Only

18шт.

57

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

58

495-21044

WASHER,3/8"

4шт.

59

231-4146

NUT,3/8"-16, GB

4шт.

60

87017882

KIT

Double Reel Connector, DH362

1шт.
