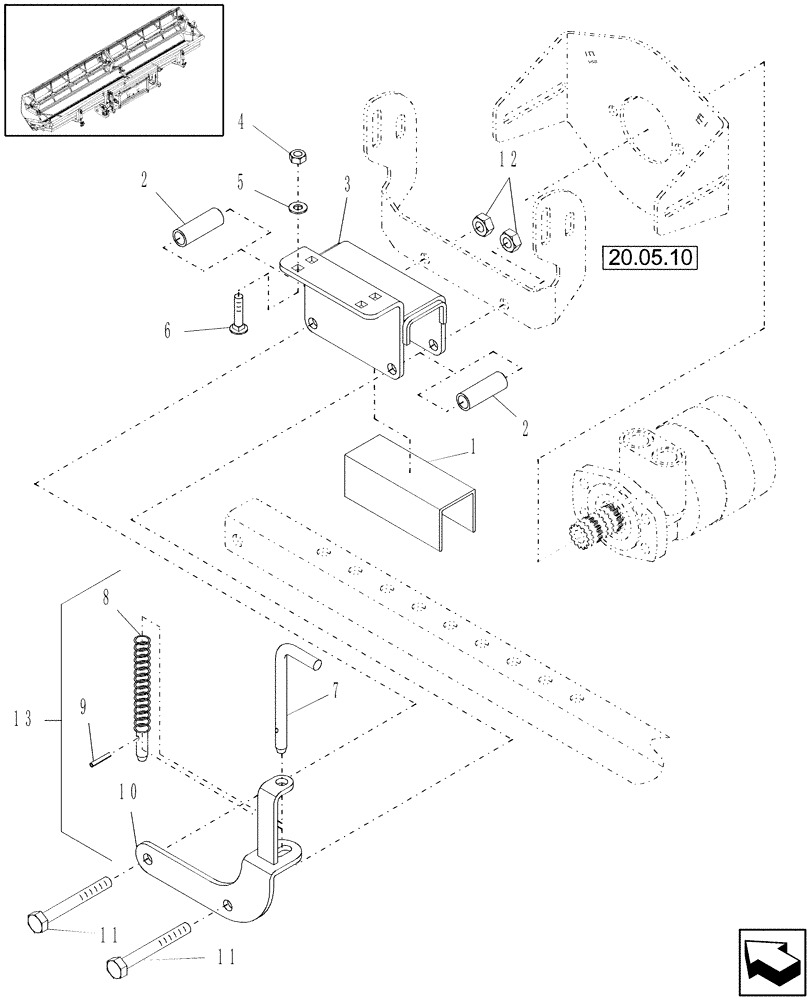

Запчасти Case IH DH302 (20.05.09) - REEL MOUNT, LH & RH DOUBLE DRIVE AND REEL LOCK (13) - REEL

1

87019635

CHANNEL

1шт.

2

87019634

SPACER

2шт.

3

87042843

ARM

Mount

1шт.

4

232-4146

NUT,3/8"-16, GC

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

7

86565138

LOCK PIN

1шт.

8

86565137

SPRING

0.072" x 0.720" x 4"

1шт.

9

118827

PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

10

87019726

LOCK

Bracket

1шт.

11

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

RH Side

1шт.

11

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

LH Side

1шт.

12

232-4148

NUT,1/2"-13, GC

2шт.

13

87019725

LOCK

Assembly; Includes: 7 Thru 10, Used When No Fore/Aft

1шт.
