Запчасти Case IH DH302 (20.05.08) - REEL ARMS (13) - REEL

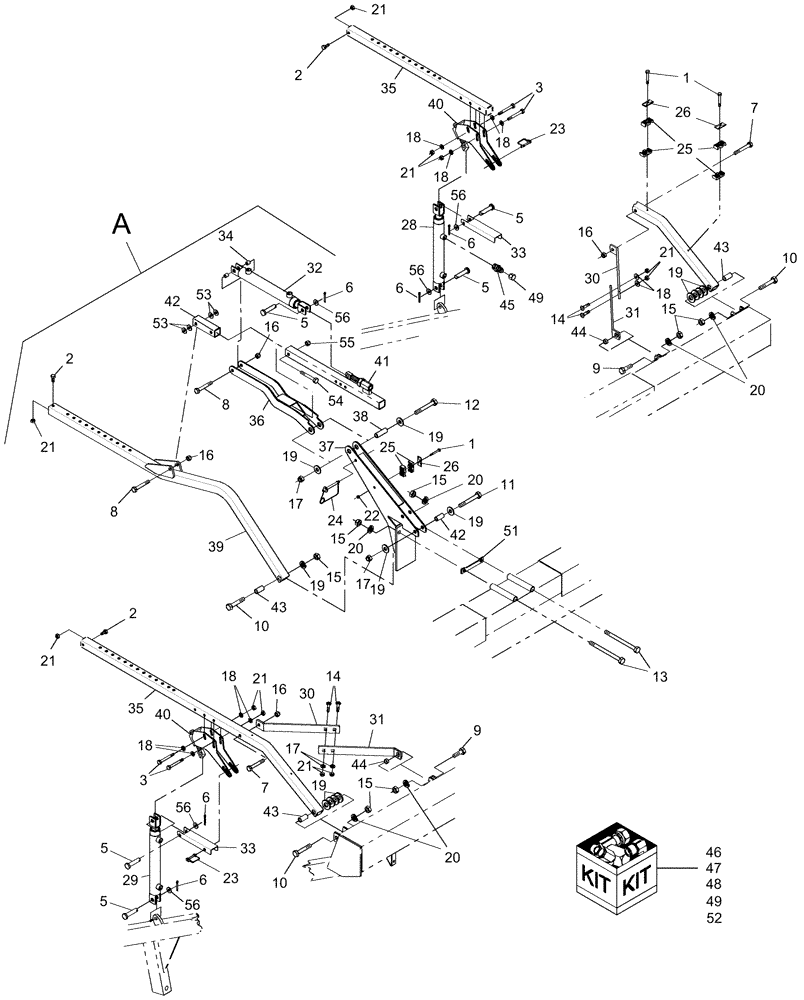

Схема запчастей Case IH DH302 - (20.05.08) - REEL ARMS (13) - REEL
21
2
21
35
23
24
42
18
19
46
34
52
22
6
8
20
18
43
49
8
19
18
35
56
32
40
1
1
10
5
44
11
47
14
33
20
48
17
19
a
21
15
18
16
9
53
38
28
19
40
6
45
18
43
16
56
51
37
23
5
3
54
25
44
30
5
17
36
13
15
10
17
12
33
15
21
7
20
7
21
43
19
19
5
56
9
56
14
16
26
5
31
42
18
10
49
15
6
2
21
29
41
39
16
31
55
26
20
53
2
3
15
25
21
30
6
56
19
6

Артикул

Название

Примечание

Количество

1

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

2

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

3

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

4

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

5

87381555

CLEVIS PIN

1шт.

6

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

7

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

8

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

9

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

10

280210

BOLT,Hex, 3/4"-10 x 4", G5

3шт.

11

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

12

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

13

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

2шт.

14

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

15

280954

NUT,3/4"-10, G5

7шт.

16

86520346

NUT,5/8"-11, GB

4шт.

17

86754

NUT,3/4"-10, GB

2шт.

18

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

19

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

20

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

7шт.

21

88871

NUT,1/2"-13, GC

11шт.

22

280736

NUT,5/16"-18, GC

1шт.

23

86563565

PIN

Quick, 5/16"

2шт.

24

86564359

PIN

Hitch, 1/2"

1шт.

25

86563609

CLAMP

Tube

1шт.

26

87053042

PLATE

1шт.

27

85700693

NUT,5/8" - 11, Gr C

1шт.

28

84187291

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 254mm Stroke

Master, Monarch#15WP10-112, See Ref 47

1шт.

28

84187281

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 254mm Stroke

Master, Monarch#17WP10-088, See Ref 48, DH362 Solid Reel Only

1шт.

29

84187280

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 247.65mm Stroke

Slave, Monarch #10WD09.75-100, See Ref 46

1шт.

29

84187291

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 254mm Stroke

Slave, Monarch #15WP10-112, See Ref 47, DH362 Solid Reel Only

1шт.

30

86561074

SUPPORT

Upper Reel Arm

2шт.

31

86561075

SUPPORT

Lower Reel Arm

2шт.

32

84187281

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 254mm Stroke

Monarch #17WP10-088, See ref 48

1шт.

33

84299110

LOCKING BAR

2шт.

34

86561940

SPACER

2шт.

35

86593952

ARM

2шт.

36

87037903

SUPPORT

Reel Cylinder Mount

1шт.

37

87057605

TOWER

Reel

1шт.

38

87037899

BUSHING

1шт.

39

87037901

ARM ASSY.

Reel, W/High Clearance

1шт.

40

87037896

NUT

Includes Adjuster Frame and Screw

2шт.

40

87037895

ADJUSTER

Frame/Nut

2шт.

40

86561077

ADJUSTMENT SCREW,1" x 7 1/2"

2шт.

41

87037898

RIGID TUBE

Center Reel Lift; Includes: Adjusting mechanism

1шт.

41

9849633

NUT,1"-8, G5

1шт.

41

86561077

ADJUSTMENT SCREW,1" x 7 1/2"

1шт.

41

87037897

RIGID TUBE

Center Reel Lift

1шт.

42

87471721

TUBE,4.375" L x 1.5" W x 1.5" H

Extension

1шт.

43

86563563

BUSHING

3шт.

44

86563564

BUSHING

2шт.

45

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

1шт.

46

84187609

SEAL KIT

Services Ref 29 [84187280]

1шт.

47

87487171

SEAL KIT

Services Ref 28 & 29 [84187291]

1шт.

48

84187617

SEAL KIT

Services Ref 28 &32 [84187281]

1шт.

49

Not Used This Model

1шт.

50

86511869

CAP,7/16" - 20 JIC

1шт.

51

Not Used This Model

1шт.

52

Not Used This Model

1шт.

53

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

54

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

55

19670

NUT,5/8"-11, GB

1шт.

56

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

Выбрано товаров: 63
