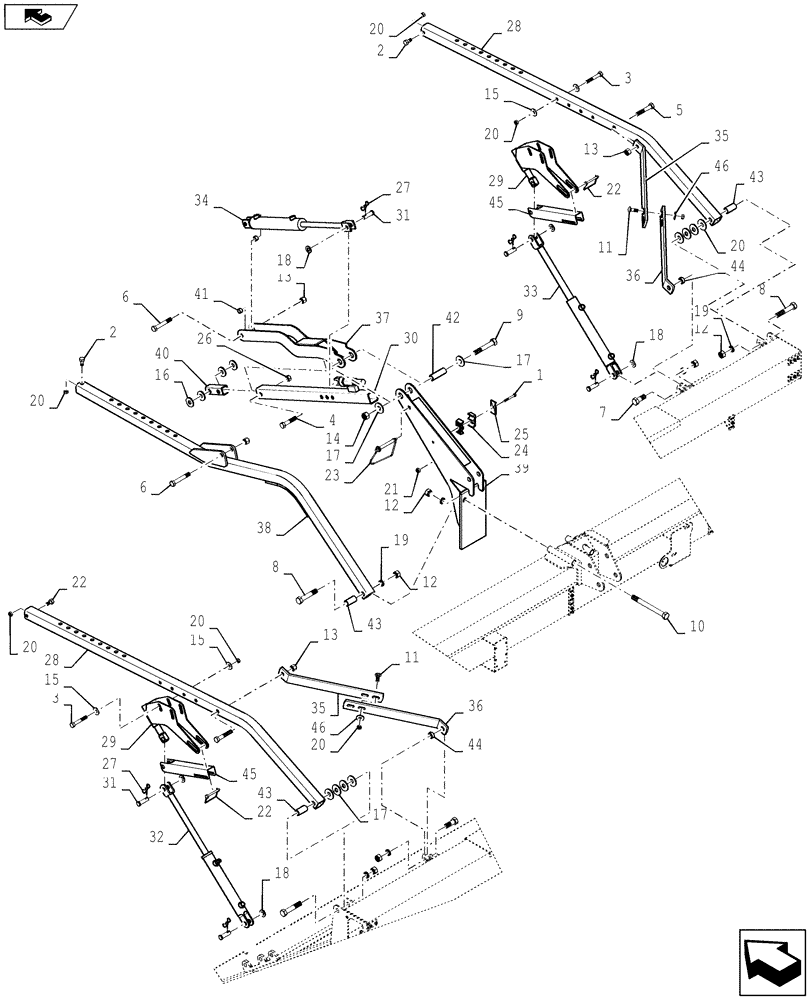

Запчасти Case IH DH302 (20.05.08[1]) - REEL ARMS, FROM PIN XXWS095101 (13) - REEL

1

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

2

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

3

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

4

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

5

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

6

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

7

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

8

280210

BOLT,Hex, 3/4"-10 x 4", G5

3шт.

9

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

10

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

2шт.

11

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

12

280954

NUT,3/4"-10, G5

7шт.

13

86520346

NUT,5/8"-11, GB

4шт.

14

86754

NUT,3/4"-10, GB

1шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

16

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

17

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

12шт.

18

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

19

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

7шт.

20

88871

NUT,1/2"-13, GC

11шт.

21

280736

NUT,5/16"-18, GC

1шт.

22

86563565

PIN

5/16" x 2-1/2"x

2шт.

23

86564359

PIN

1шт.

24

86563609

CLAMP

1шт.

25

87053042

PLATE

1шт.

26

85700693

NUT,5/8" - 11, Gr C

1шт.

27

84338675

COTTER PIN

Bow Tie, 1/8" x 2-3/4"

5шт.

28

86593952

ARM

2шт.

29

87037896

NUT

2шт.

30

87037898

RIGID TUBE

1шт.

31

87381555

CLEVIS PIN

5/8" x 2-1/8"

5шт.

32

84187280

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 247.65mm Stroke

1" x 9.75"

1шт.

33

84187291

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 254mm Stroke

1.5" x 10"

1шт.

34

84187281

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 254mm Stroke

1.75" x 10"

1шт.

35

86561074

SUPPORT

Upper

2шт.

36

86561075

SUPPORT

Lower

2шт.

37

87037903

SUPPORT

1шт.

38

87037901

ARM ASSY.

1шт.

39

87057605

TOWER

1шт.

40

87471721

TUBE,4.375" L x 1.5" W x 1.5" H

1шт.

41

86561940

SPACER

2шт.

42

87037899

BUSHING

1.05" x .824" x 3-1/4" Lng

1шт.

43

86563563

BUSHING

1.05" x .85" x 2-1/6" Lng

3шт.

44

86563564

BUSHING

1.05" x .85" x .4375" Lng

2шт.

45

84299110

LOCKING BAR

2шт.

46

84542583

WASHER

4шт.
