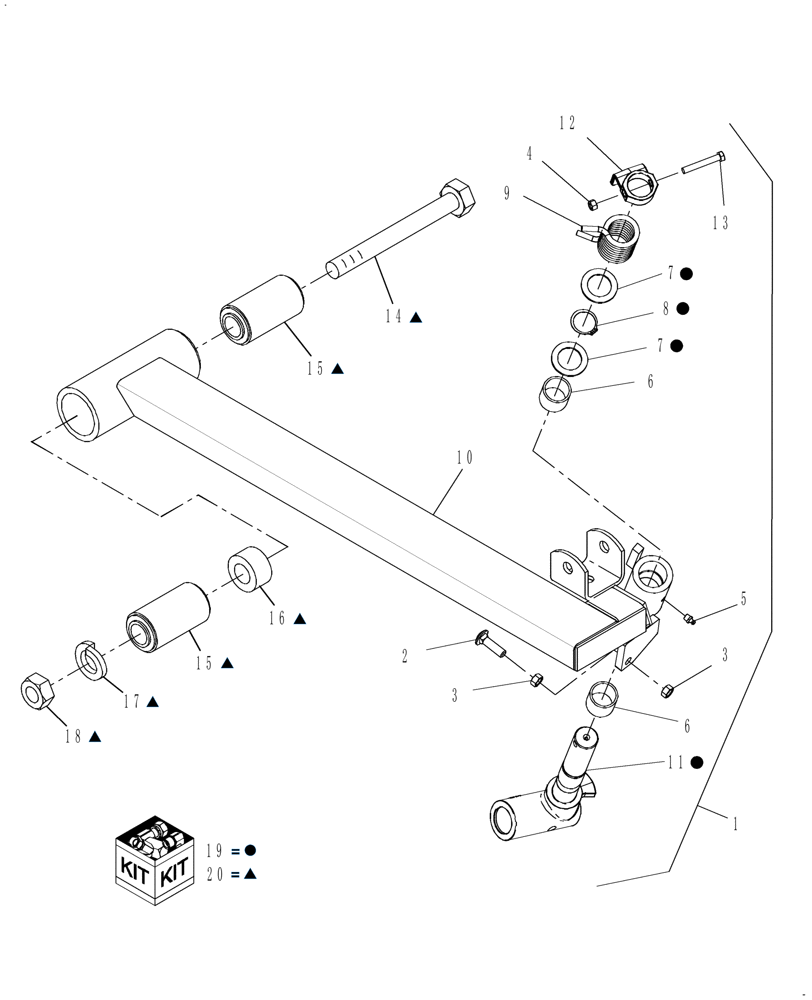

Запчасти Case IH DH302 (20.03.10[3]) - GAUGE WHEEL MOUNT ARM, 2010 (11) - WHEELS

1

84288104

SUPPORTING ARM

RH, Control Arm Assy.

1шт.

1

84288096

SUPPORTING ARM

LH, Control Arm Assy.

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

3

280431

NUT,1/2"-13, G5

2шт.

4

88902

NUT,3/8"-16

1шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

6

86565469

BUSHING

2шт.

7

86562072

BUSHING

2шт.

8

133066

SNAP RING,#150, Ext

1шт.

9

86565470

SPRING

RH

1шт.

9

86565471

SPRING

LH

1шт.

10

84288102

SUPPORTING ARM

RH

1шт.

10

84288103

SUPPORTING ARM

LH

1шт.

11

84256750

PIN

2шт.

12

87559977

COLLAR

2шт.

13

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

14

86502676

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

1шт.

15

86565458

DRIVE BUSHING

2шт.

16

87354495

SPACER

1шт.

17

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

18

280954

NUT,3/4"-10, G5

1шт.

19

87531674

PIN

Kit, Service

1шт.

20

86565466

KIT

Bushings

1шт.
