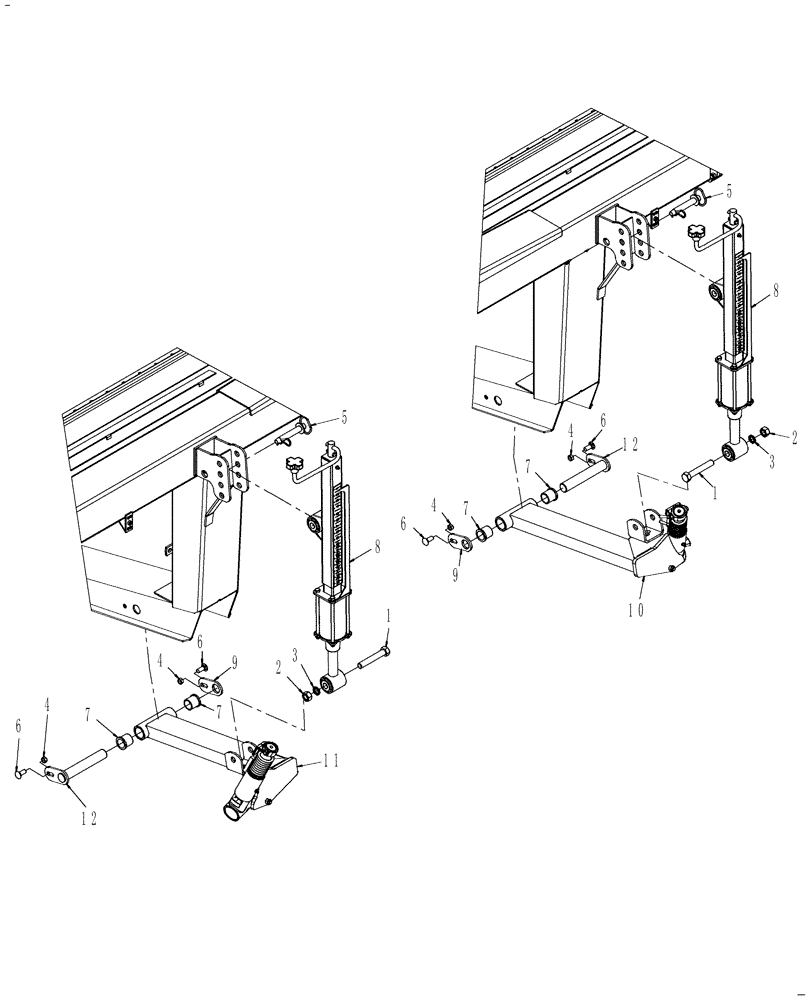

Запчасти Case IH DH302 (20.03.09[3]) - GAUGE WHEELS, 2010 (11) - WHEELS

1

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

2

280954

NUT,3/4"-10, G5

2шт.

3

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

4

88871

NUT,1/2"-13, GC

4шт.

5

86563633

PIN

2шт.

6

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

7

87652822

BUSHING

4шт.

8

84288099

JACK

2шт.

9

84224435

SIDE PLATE

2шт.

10

84288104

SUPPORTING ARM

RH

1шт.

11

84288096

SUPPORTING ARM

LH

1шт.

12

87629714

LARGE PIN

PIN, LARGE

2шт.
