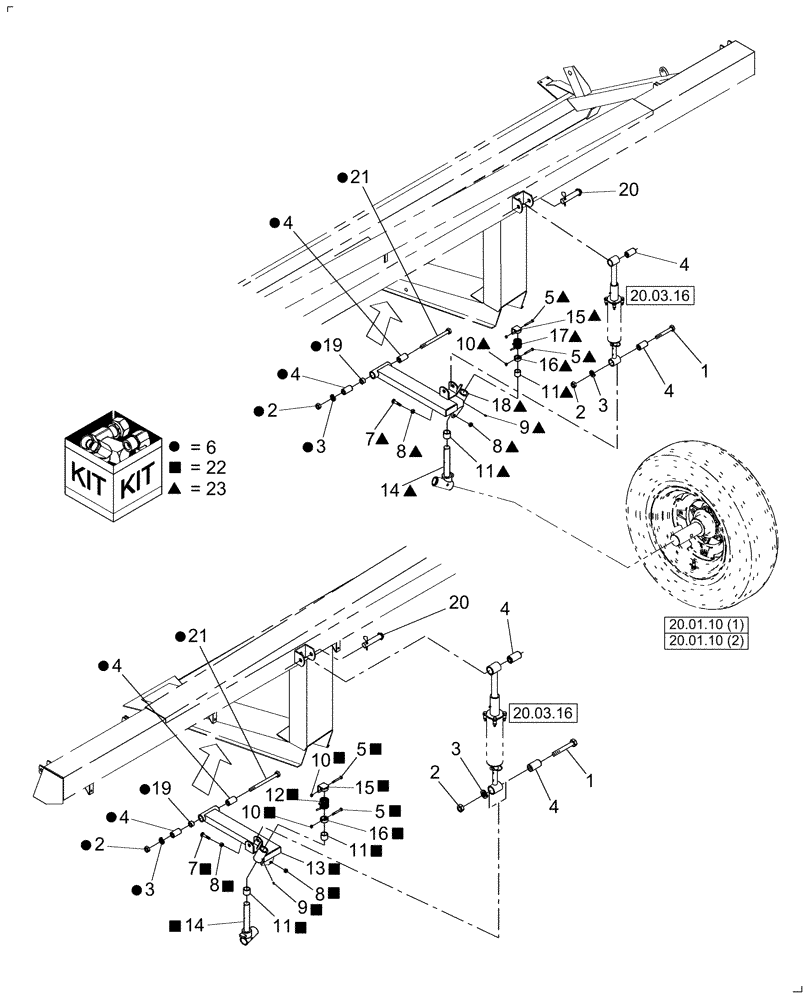

Запчасти Case IH DH302 (20.03.09[2]) - GAUGE WHEEL (11) - WHEELS

1

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

2

280954

NUT,3/4"-10, G5

2шт.

3

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

4

86565458

DRIVE BUSHING

4шт.

5

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

6

86565466

KIT

Bushing, Gauge Wheel

2шт.

7

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

8

280431

NUT,1/2"-13, G5

4шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

10

88902

NUT,3/8"-16

4шт.

11

86565469

BUSHING

Bronze

4шт.

12

86565471

SPRING

Torque, RH

1шт.

13

86565481

ARM

Control, LH

1шт.

14

86565472

PIN

King, Gauge Wheel

2шт.

15

86565473

COLLAR

Torque Spring

2шт.

16

86565474

COLLAR

King Pin

2шт.

17

86565470

SPRING

Torque, LH

1шт.

18

86565482

ARM

Control, RH

1шт.

19

87354495

SPACER

2шт.

20

86563633

PIN

Hitch

2шт.

21

86502676

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

2шт.

22

86565467

ARM

LH, See Fig. 20.03.10(1)

1шт.

23

86565468

ARM

RH, See Fig. 20.03.10(1)

1шт.
