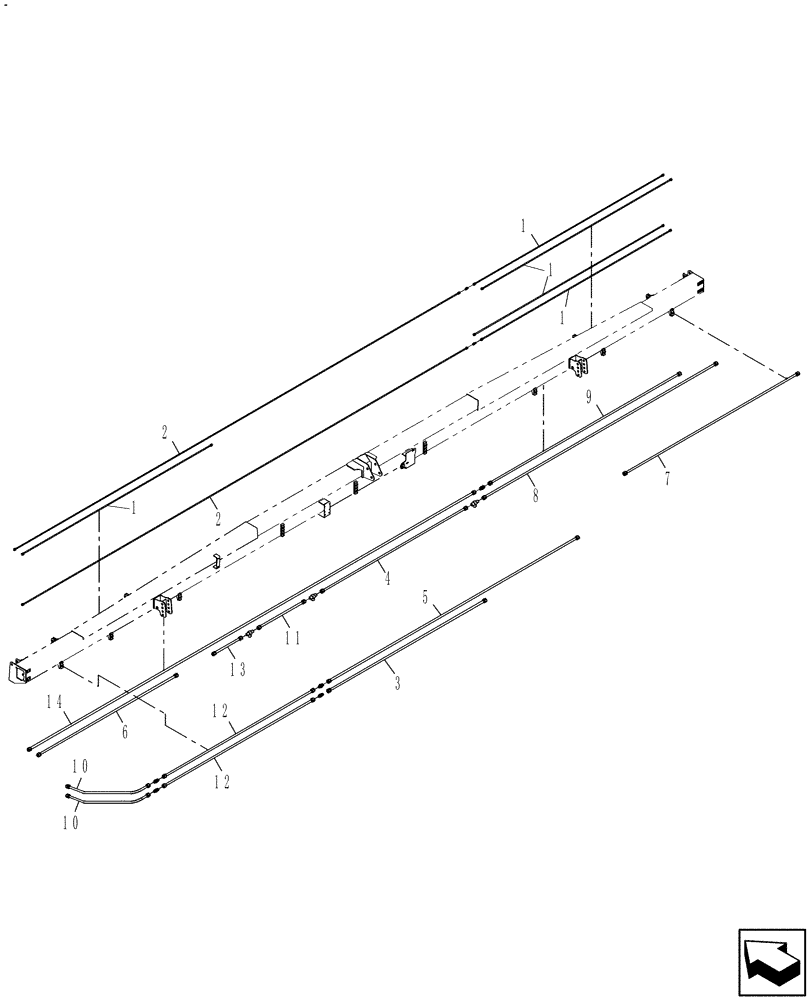

Запчасти Case IH DH302 (20.07.07[08]) - STEEL LINES, SINGLE SWATH, 30FT, FROM PIN YAZB01204 (07) - HYDRAULICS

1

86563811

HYD TUBE,0.375" DIA x 102" L

3/8" x 102"

5шт.

2

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

2шт.

3

87546412

HYD TUBE,.75" DIA x 84" L

3/4" x 84"

1шт.

4

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

5

86563662

HYD TUBE,0.75" DIA x 134" L

3/4" x 134"

1шт.

6

86563639

HYD TUBE,0.75" DIA x 74" L

3/4" x 74"

2шт.

7

86563846

HYD TUBE,0.75" DIA x 93" L

3/4" x 93"

1шт.

8

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

9

86597265

HYD TUBE

3/4" x 102"

1шт.

10

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

11

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

12

87015357

HYD TUBE,0.75" OD x 80" L

3/4" x 80"

2шт.

13

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

14

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.
