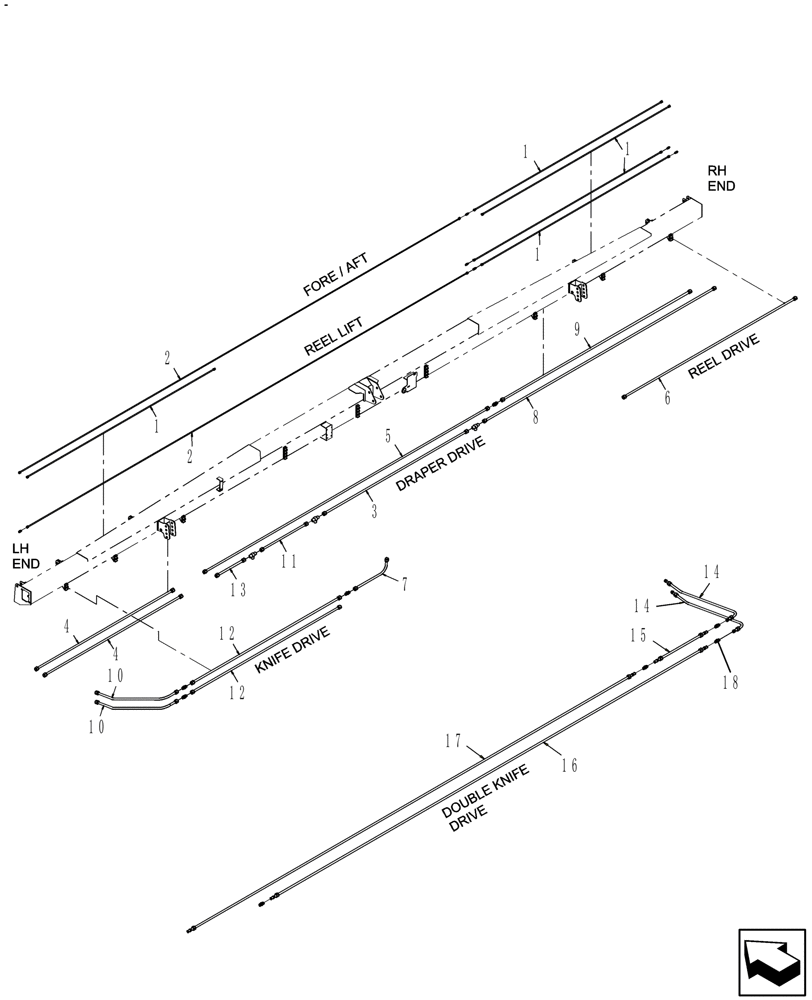

Запчасти Case IH DH302 (20.07.07[07]) - STEEL LINES, SINGLE SWATH, 30FT, FROM PIN Y9ZB00735 (07) - HYDRAULICS

1

86563811

HYD TUBE,0.375" DIA x 102" L

3/8" x 102"

5шт.

2

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

2шт.

3

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

4

86563639

HYD TUBE,0.75" DIA x 74" L

3/4" x 74"

2шт.

5

87745902

HYD TUBE,19.05 mm OD x 154 mm L

3/4" x 154"

1шт.

6

86563846

HYD TUBE,0.75" DIA x 93" L

3/4" x 93"

1шт.

7

86592556

HYD TUBE

3/4" x 21"

1шт.

8

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

9

86597265

HYD TUBE

3/4" x 102"

1шт.

10

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44", BL

2шт.

11

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

12

87015357

HYD TUBE,0.75" OD x 80" L

3/4" x 80"

2шт.

13

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

14

87030027

HYD TUBE,0.75" OD x 44" L

3/4" x 44", BR

2шт.

15

87052678

HYD TUBE,0.75" DIA x 28" L

3/4" x 28"

1шт.

16

87488556

HYD TUBE

3/4" x 234"

1шт.

17

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.

18

86563521

HYD CONNECTOR

2шт.
