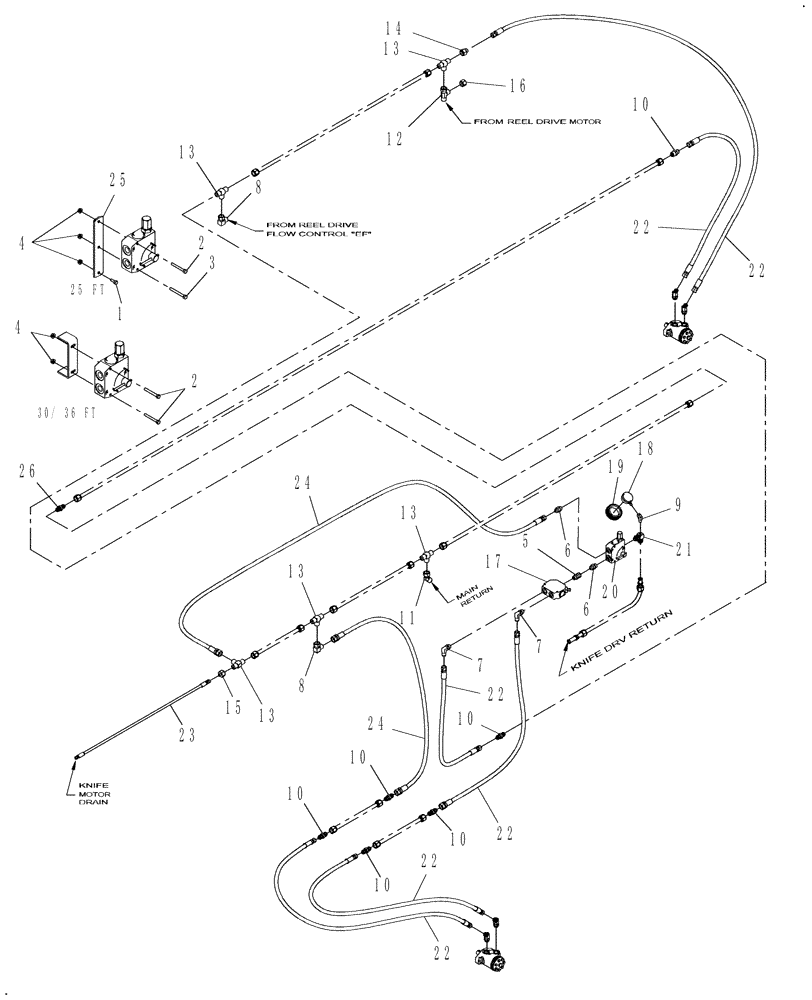

Запчасти Case IH DH302 (20.07.05[3]) - HYDRAULICS, SINGLE SWATH, 25 FT, 30 FT & 36 FT (07) - HYDRAULICS

1

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

25 Ft Only

1шт.

2

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1шт.

3

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

25 Ft Only

1шт.

4

9626558

FLANGE NUT,Flg, 1/4"-20

1шт.

5

86563540

ADAPTER

1шт.

6

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

7

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

8

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

2шт.

9

689194

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

10

86563542

HYD CONNECTOR

10MJO x 10MJO

6шт.

11

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

12

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

13

80015694

TEE,1 1/16"-12 37 Degree

5шт.

14

850459

REDUCER

1-1/16"-12F x 7/8"-14M

1шт.

15

86563543

ADAPTER

6MJ x 12FJ

2шт.

16

219606

CAP,1-1/16" - 12 JIC

1шт.

17

84270349

FLOW DIVIDER

11 GPM

1шт.

17

84298022

CARTRIDGE

Use For 84270349

1шт.

18

86563546

GAUGE

1шт.

19

87033323

COVER

1шт.

20

87042501

CONTROL

Draper Flow, 20 GPM

1шт.

21

86563548

ELBOW

C/W Guage Connection

1шт.

22

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

6шт.

23

84151670

HOSE

25 Ft, 1/4"ID, 128", 4FJX/6FJX

1шт.

23

84151672

HOSE

30 Ft, 1/4"ID, 159", 4FJX/6FJX

1шт.

23

84151674

HOSE

36 Ft, 1/4"ID, 197", 4FJX/6FJX

1шт.

24

87053585

HYDRAULIC HOSE,0.50" ID x 28.00"

10FJX/12FJX

2шт.

25

86593486

MOUNTING PLATE

25 Ft Only

1шт.

26

86563521

HYD CONNECTOR

1шт.
