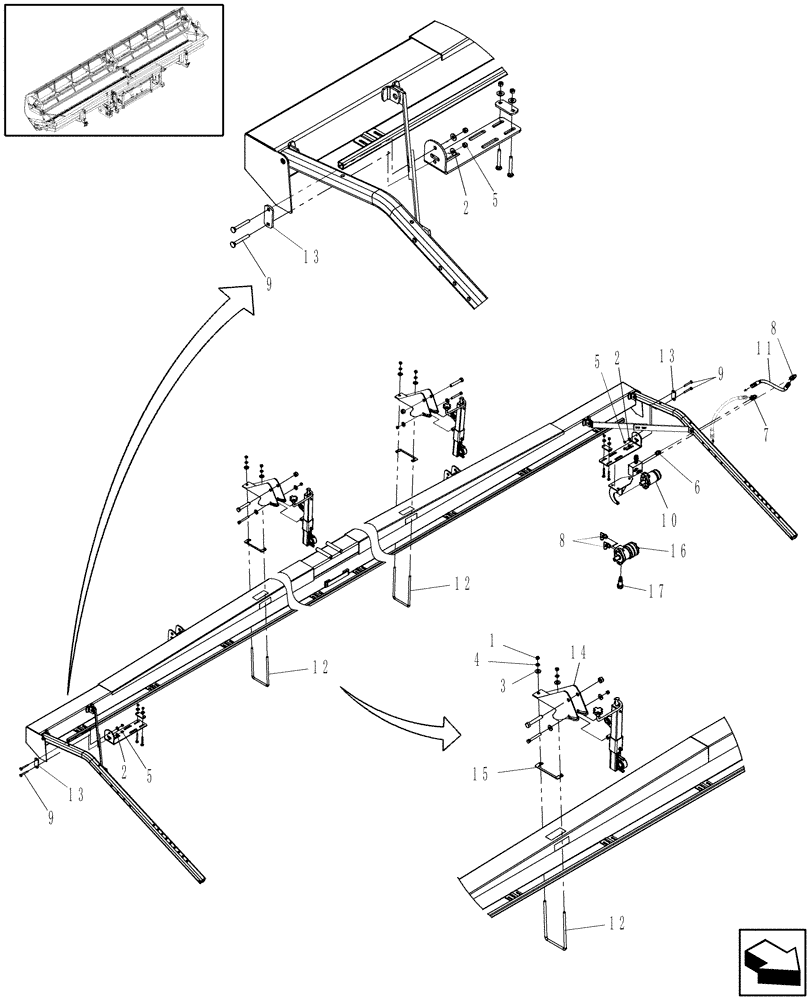

Запчасти Case IH DH302 (20.06.15) - CROSS AUGER MOUNT RETROFIT, 30 & 36FT. (15) - CROP CONDITIONING

1

280431

NUT,1/2"-13, G5

4шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

88902

NUT,3/8"-16

4шт.

6

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

Prior To PIN Y9ZB00735

1шт.

7

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

Prior To PIN Y9ZB00735

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

9

280806

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

4шт.

10

86977130

HYDRAULIC MOTOR

125cc, Danfoss

1шт.

Prior To PIN Y9ZB00735

1шт.

11

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

12

86566612

U-BOLT

2шт.

13

87733878

CLAMP

2шт.

14

87758169

MOUNTING PARTS

2шт.

15

87758170

SHIM

2шт.

16

84189309

HYDRAULIC MOTOR

115cc, White

1шт.

From PIN Y9ZB00735

1шт.

17

84189310

NEEDLE VALVE

1шт.

From PIN Y9ZB00735

1шт.
