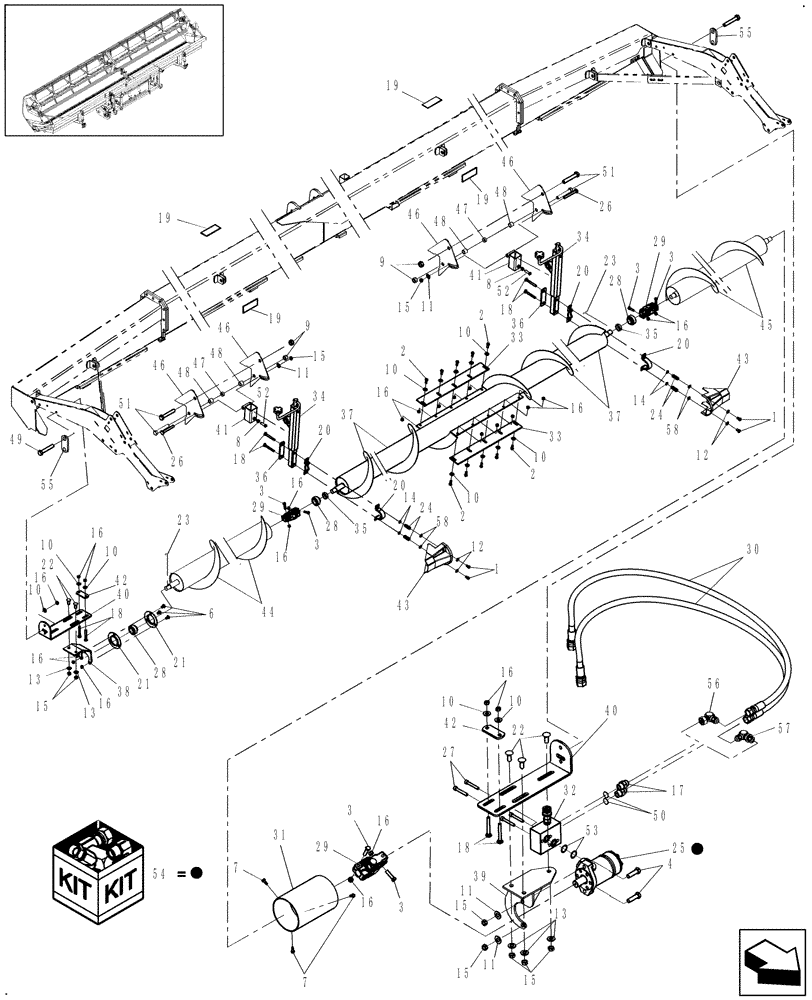

Запчасти Case IH DH302 (20.06.09) - CROSS AUGER, 30 & 36 FT (15) - CROP CONDITIONING

1

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

5

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

7

590424

SELF-TAP SCREW

TECK, 1/4" x 3/4"

3шт.

8

280431

NUT,1/2"-13, G5

2шт.

9

86754

NUT,3/4"-10, GB

2шт.

10

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

14шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

12

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

13

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

88871

NUT,1/2"-13, GC

8шт.

16

88902

NUT,3/8"-16

23шт.

17

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

18

280806

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

8шт.

19

86516507

ANTI-SKID STRIP

4шт.

20

86566608

FLANGE

2шт.

21

269491

FLANGE

2шт.

22

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

23

86628576

KEY

5шт.

24

87735601

NUT

4шт.

25

86977130

HYDRAULIC MOTOR

125cc

1шт.

25

86628576

KEY

Square, 1/4" x 1-1/4"

1шт.

26

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

27

87033316

HEX SOC SCREW,M8 x 55mm, Cl 8.8

4шт.

28

87625075

ROLLER BEARING,31.75mm ID x 61.91mm OD

3шт.

29

87735603

UNIVERSAL JOINT

U-Joint, 1" Yoke

3шт.

30

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

2шт.

31

86604551

SHIELD

1шт.

32

87043225

MANIFOLD

W/ Needle Valve

1шт.

33

87733870

GRIP

2шт.

34

87733871

JACK

2шт.

34

84154162

HANDLE

2шт.

34

84314780

JACK

, Start Year: 01-FEB-10

2шт.

35

87733880

SPACER

2шт.

36

87733872

CLAMP

2шт.

37

87733873

AUGER

25 Ft & 30/36 Ft Center

1шт.

37

84337517

AUGER

25 Ft & 30/36 Ft Center

1шт.

38

87733874

MOUNT

1шт.

39

87474551

BRACKET

1шт.

40

87733876

BRACKET

2шт.

41

87474554

LOCK

2шт.

42

87733878

CLAMP

2шт.

43

87474550

SHIELD

2шт.

44

87733858

AUGER

38", RH, 30 Ft

1шт.

44

87733861

AUGER

75", RH, 36 Ft

1шт.

45

87733859

AUGER

38", LH, 30 Ft

1шт.

45

87733862

AUGER

75", LH, 36 Ft

1шт.

46

87758171

MOUNTING PARTS

4шт.

47

86563564

BUSHING

1.050" x 0.850" x 0.4375"

2шт.

48

87713493

SPACER

1.050" x 0.824" x 0.875"

4шт.

49

280806

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

4шт.

50

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

51

87733878

CLAMP

2шт.

52

86512816

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2", Cup Pt

Set, Sq. Hd., 1/2" x 1-1/2"

2шт.

53

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

54

87051054

SEAL KIT

Motor

1шт.

55

87733878

CLAMP

2шт.

56

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

57

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

58

84161619

SEALING WASHER

3/8", Seal Bonded

4шт.
