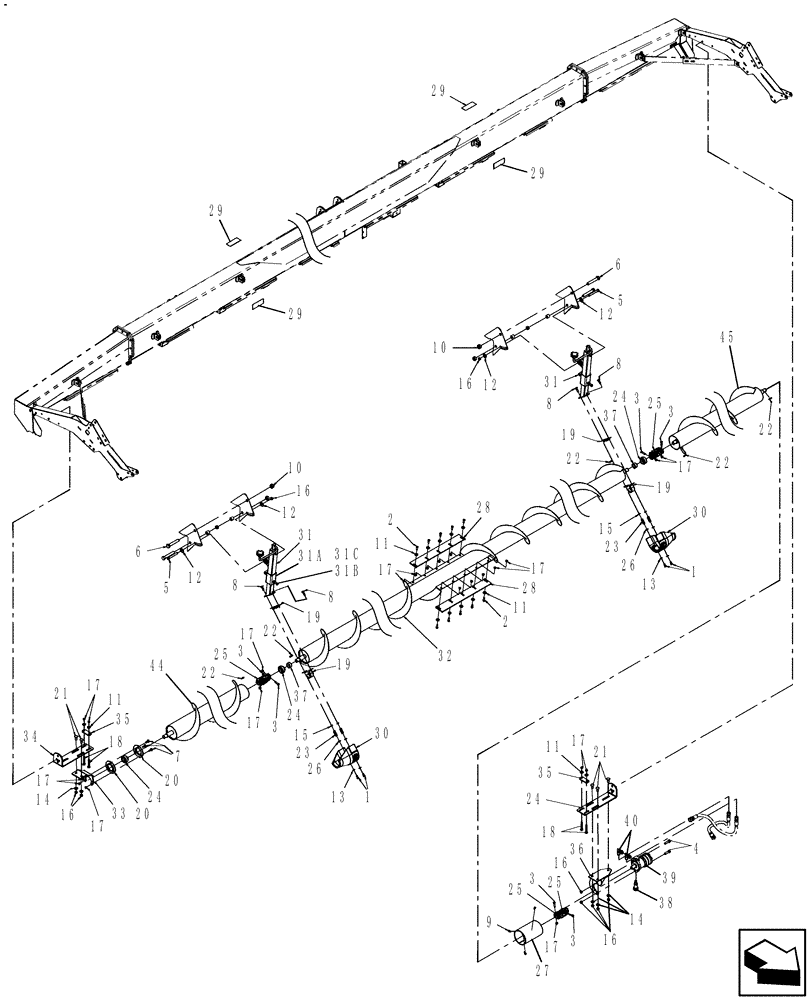

Запчасти Case IH DH302 (20.06.09[1]) - CROSS AUGER, 30FT AND 36 FT, FROM PIN YAZB00998 (15) - CROP CONDITIONING

1

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

5

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

6

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

8

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

9

590424

SELF-TAP SCREW

3шт.

10

86754

NUT,3/4"-10, GB

2шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

14шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

13

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

14

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

5шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

16

88871

NUT,1/2"-13, GC

9шт.

17

88902

NUT,3/8"-16

23шт.

18

80280806

SCREW

4шт.

19

86566608

FLANGE

2шт.

20

269491

FLANGE

2шт.

21

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

5шт.

22

86628576

KEY

5шт.

23

87735601

NUT

4шт.

24

87625075

ROLLER BEARING,31.75mm ID x 61.91mm OD

3шт.

25

87735603

UNIVERSAL JOINT

3шт.

26

84161619

SEALING WASHER

4шт.

27

86604551

SHIELD

1шт.

28

87733870

GRIP

2шт.

29

84161618

PAD SET

4шт.

30

84209031

SHIELD

2шт.

31

84314780

JACK

Includes 31A, 31B, 31C & 8, Handle nss

2шт.

31a

87474554

LOCK

Lock

2шт.

31b

86512816

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2", Cup Pt

2шт.

31c

280431

NUT,1/2"-13, G5

2шт.

32

87733873

AUGER

Center, 240"

1шт.

32

84337517

AUGER

Center, 240"

1шт.

33

87733874

MOUNT

1шт.

34

87733876

BRACKET

2шт.

35

87733878

CLAMP

2шт.

36

87474551

BRACKET

1шт.

37

84188663

SPACER

2шт.

38

84189310

NEEDLE VALVE

1шт.

39

84189309

HYDRAULIC MOTOR

1шт.

40

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

44

87733858

AUGER

Extension, 38", RH, 30 Ft

1шт.

44

87733861

AUGER

Extension, 75", RH, 36 Ft

1шт.

45

87733859

AUGER

Extension, 38", LH, 30 Ft

1шт.

45

87733862

AUGER

Extension, 75", LH, 36 Ft

1шт.
