Запчасти Case IH DH302 (20.02.10) - HYDRAULIC DECK SHIFT, DOUBLE SWATH (15) - CROP CONDITIONING

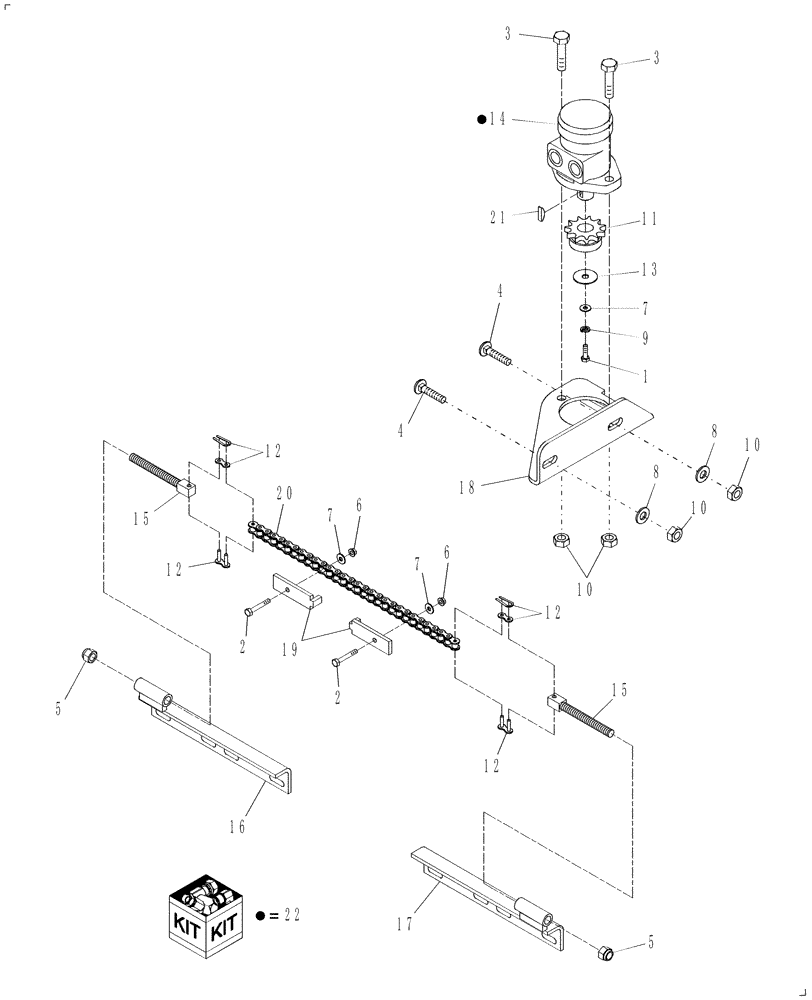

Схема запчастей Case IH DH302 - (20.02.10) - HYDRAULIC DECK SHIFT, DOUBLE SWATH (15) - CROP CONDITIONING
2
8
7
17
6
11
22
12
19
10
3
15
10
3
2
4
15
5
9
1
14
20
12
8
5
21
12
7
7
16
6
18
13
4
10
12

Артикул

Название

Примечание

Количество

1

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

5

80566

NUT

G5, 1/2"-13

2шт.

6

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

7

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

3шт.

8

495-11053

WASHER,1/2", SAE

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

10

232-4148

NUT,1/2"-13, GC

4шт.

11

86561222

SPROCKET

1шт.

12

165590

CONNECTING LINK

Roller, RC 60, Spring Style

2шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

Fender

1шт.

14

86561223

HYDRAULIC MOTOR

315cc DANFOSS, Superceding To WHITE 320cc

1шт.

14

84188425

HYDRAULIC MOTOR

320cc WHITE (motor p/n 84197518) , W/Ref 1, 7, 9, 11 & 13 (motor upgrade kit)

1шт.

15

86561224

ADJUSTER

Chain

2шт.

16

87052786

MOUNTING PARTS

Bracket, Chain Mount, LH, DH212

1шт.

16

86561225

BRACKET

Mount, Chain, LH, DH252 & DH302

1шт.

17

87052787

MOUNTING PARTS

Bracket, Chain, RH, DH212

1шт.

17

86561226

BRACKET

Mount, Chain, RH, DH252 & DH302

1шт.

18

87053102

MOUNTING PARTS

Mount, Motor, LH

1шт.

18

87053101

MOUNTING PARTS

Mount, Motor, RH

1шт.

19

86561228

STOP

2шт.

20

611362R91X

CHAIN

RC60, 145 Pitches, 108-3/4", DH302

1шт.

Sold In 10' Bulk

1шт.

20

241153

CHAIN

RC 60, 99 Pitches, 74-1/4", DH252

1шт.

20

87052788

CHAIN

RC 60, 99 Pitches, DH212

1шт.

21

80768

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

22

87051054

SEAL KIT

For Danfoss 315cc Motor (p/n 86561223)

1шт.

22

84212782

SEAL KIT

For 320cc WHITE motor

1шт.

Выбрано товаров: 30
