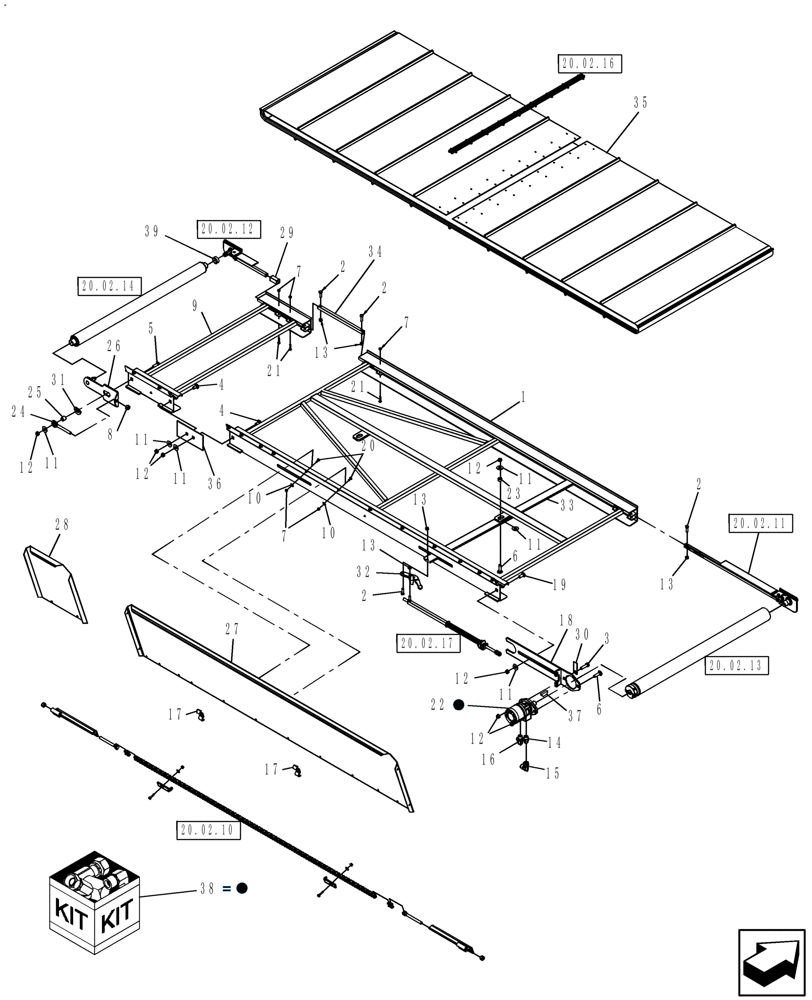

Запчасти Case IH DH302 (20.02.03) - DRAPER DECK, LH & RH, 25 FT & 30 FT (15) - CROP CONDITIONING

1

84136096

FRAME

84" W/V-Groove, 25 FT

2шт.

1

84136075

ASSEMBLY

118" W/V-Groove, 30 FT

2шт.

1

84483630

DRAPER

88.5", 25FT

2шт.

1

84483635

DRAPER

120" , 30 FT

2шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

4

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

86532

LOCK NUT

1/4"-20

1шт.

8

87530607

NUT

Lock, 1/2"-13

6шт.

9

84178217

FRAME

14" W/V-Groove

2шт.

9

84386138

FRAME

14", From PIN YAZB01204

1шт.

10

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

12

88871

NUT,1/2"-13, GC

14шт.

13

88902

NUT,3/8"-16

10шт.

14

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

15

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

16

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

17

86563519

CLAMP

1шт.

18

87738786

PLATE

2шт.

19

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

20

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

21

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

6шт.

22

84136262

HYDRAULIC MOTOR

Parker, 41cc, 1" Shaft

2шт.

84136262R

REMAN-HYD MOTOR

DH252, DH302, Both (1/09-)

2шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

23

86563235

SPACER

2шт.

24

86560834

THREADED ROD

1/2"-13

2шт.

25

86563188

SPACER

2шт.

26

87629156

IDLER

2шт.

27

86640045

PANEL

25 FT

2шт.

27

87517407

PANEL

30 FT

2шт.

28

86640025

PANEL

25 & 30 FT

2шт.

29

87050553

SPACER

2шт.

30

86578677

CONNECTING LINK

2шт.

31

87038603

SPRING WASHER

7/8", Special, Bent

2шт.

32

87038598

PUSH-PULL COUPLING

2шт.

33

86560841

STABILIZER BAR

2шт.

33

84197266

BAR

2шт.

From Pin YAZB00998

1шт.

34

86563518

TUBE

2шт.

35

84184537

BELT

42" x 236", V-Skim, 25 FT, Double Swath

2шт.

35

84316720

CANVAS

42" x 236", V/FXS, 25 FT, Double Swath

2шт.

From Pin YAZB00998

1шт.

35

84388966

BELT

42" x 236", GDD Raptor V3, 25FT, Double Swath

2шт.

From PIN YAZB01204

1шт.

35

84184536

BELT

42" x 208", V-Skim, 25FT

2шт.

Single Swath Only

1шт.

35

84316717

CANVAS

42" x 236", V/FXS, 25FT

2шт.

Single Swath Only

1шт.

From Pin YAZB00998

1шт.

35

84388960

BELT

42" x 198", GDD Raptor V3, 25FT

2шт.

Single Swath Only

1шт.

From PIN YAZB01204

1шт.

35

84184539

CANVAS

42" x 300", V-Skim, 30 FT, Double Swath

2шт.

35

84316724

CANVAS

42" x 300", V/FXS, 30 FT, Double Swath

2шт.

From Pin YAZB00998

1шт.

35

84388971

BELT

42" x 300", GDD Raptor V3, Double Swath, 30FT

2шт.

From PIN YAZB01204

1шт.

35

84184538

BELT

42" x 272", V-Skim, 30 FT

2шт.

Single Swath Only

1шт.

35

84316723

DRAPER,1054.86mm W x 6908.8mm L

42" x 272", V/FXS, 30 FT

2шт.

Single Swath Only

1шт.

From Pin YAZB00998

1шт.

35

84388970

BELT

42" x 272", GDD Raptor V3, 30FT

2шт.

Single Swath Only

1шт.

From PIN YAZB01204

1шт.

36

86563517

PLATE, SUPPORT

2шт.

37

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

38

84135785

SEAL KIT

Ref 22

1шт.

39

84265972

INSERT

1шт.
