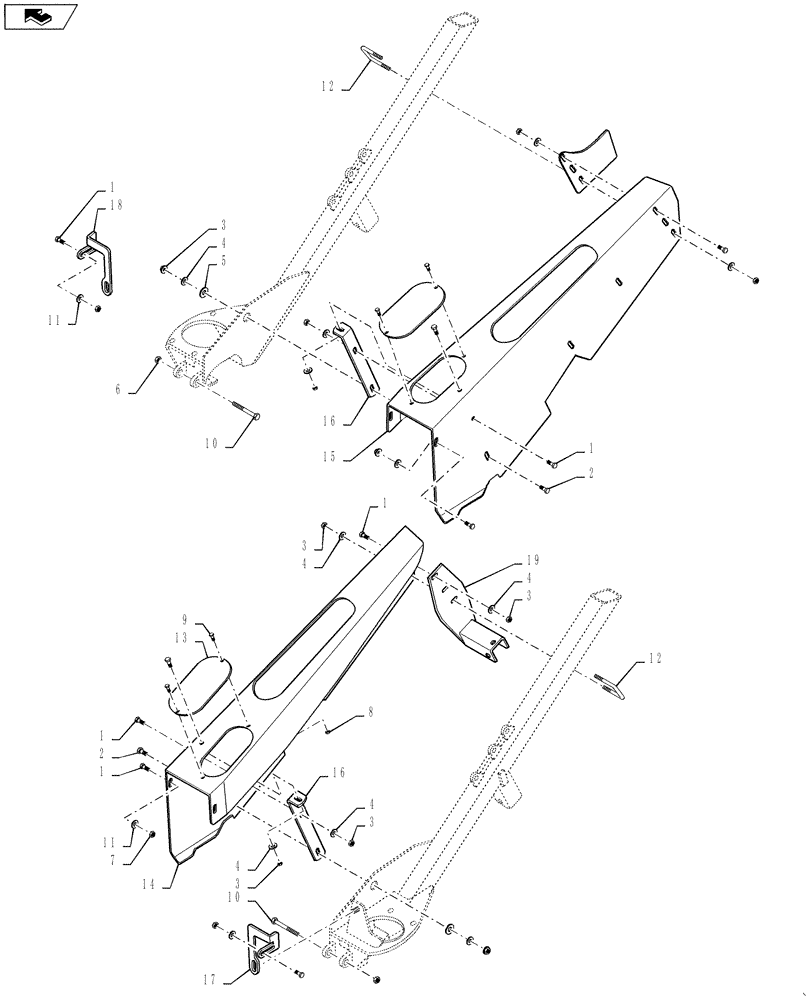

Запчасти Case IH DH302 (20.01.07[01]) - CROP DEFLECTOR, DOUBLE KNIFE (15) - CROP CONDITIONING

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

2

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

12шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

6

88871

NUT,1/2"-13, GC

2шт.

7

88902

NUT,3/8"-16

4шт.

8

280129

NUT,1/4"-20

4шт.

9

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

10

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

11

11198479

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

4шт.

12

87051806

U-BOLT

2шт.

13

84585543

COVER

2шт.

14

84585105

DEFLECTOR

Left Hand

1шт.

15

84585098

DEFLECTOR

Right Hand

1шт.

16

84546374

STRAP

2шт.

17

84546373

SUPPORT

Left Hand

1шт.

18

84546372

SUPPORT

Right Hand

1шт.

19

84585547

BRACKET

1шт.
