Запчасти Case IH DH302 (20.04.40[01]) - KNIFE DRIVE, SHORT STROKE, FROM PIN YAZB00998 (14) - CROP CUTTING

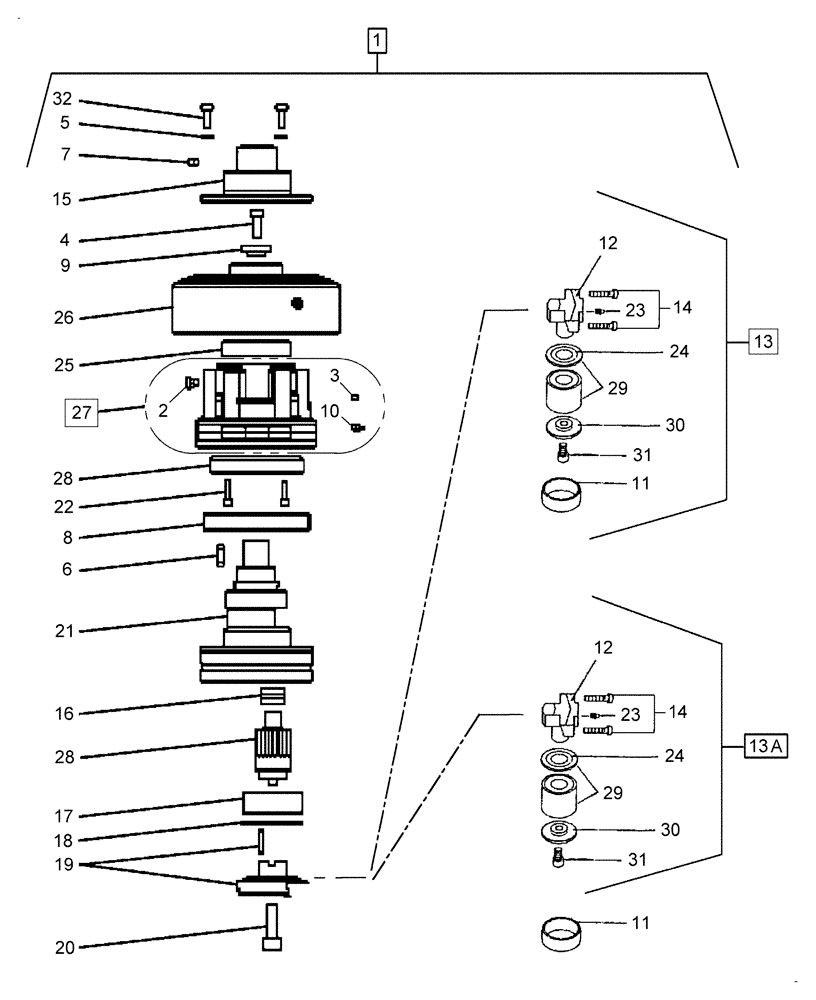

Схема запчастей Case IH DH302 - (20.04.40[01]) - KNIFE DRIVE, SHORT STROKE, FROM PIN YAZB00998 (14) - CROP CUTTING
23
26
13a
32
10
3
11
20
27
22
11
2
8
19
30
6
13
12
12
21
29
17
28
28
31
25
1
4
14
9
23
5
16
15
18
31
30
29
24
7
24
14

Артикул

Название

Примечание

Количество

1

84274201

DRIVE

Short Knife

1шт.

1

84274201R

REMAN-WOBBLE BOX

DH182, DH212, DH252, DH302, DH362, All DRAPER HEADER, Short Knife, SHORT STROKE, FROM PIN YAZB00998 (1/09-)

1шт.

1

84274201C

CORE-WOBBLE BOX

Return Number

1шт.

2

84303438

FILTER

1шт.

3

84303439

PIN

1шт.

4

86512142

HEX SOC SCREW,M12 x 30mm, Cl 12.9, Full Thd

1шт.

5

81547

LOCK WASHER,7/16"

3шт.

6

86565871

KEY

Flywheel

1шт.

7

300480

SET SCREW,M10 x 12mm

1шт.

8

86565863

BEARING,90mm ID x 140mm OD x 24mm W

Knife Drive

1шт.

9

86565870

WASHER

1шт.

10

86565864

LUBE NIPPLE

1шт.

11

86563534

SLEEVE

Nylon

1шт.

11

87672659

INSERT

Steel

1шт.

12

86564390

SUPPORT

Crank

1шт.

13

87019197

SUPPORT

Bearing

1шт.

13a

84403356

SUPPORT

Bearing, Ref. 11 Not Included

1шт.

From PIN YAZB01204

1шт.

14

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

15

86564388

ADAPTER

Flywheel

1шт.

16

86565866

NEEDLE BEARING

1шт.

17

86565867

CRANKSHAFT BEARING

1шт.

18

86565868

CIRCLIP

1шт.

19

87049629

CRANKSHAFT

1шт.

20

87304278

HEX SOC SCREW,M16 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

21

84303436

ROTOR

1шт.

22

9706749

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

23

86565864

LUBE NIPPLE

1шт.

24

86564389

BEARING COVER

1шт.

25

84303440

BALL BEARING

1шт.

26

84303441

FLYWHEEL

Knife Drive

1шт.

27

84303442

KIT

Housing, Includes Ref. 2, 3 & 10

1шт.

28

84303443

KIT

Crown Wheel & Gear

1шт.

29

86565872

BEARING

Knife Head

1шт.

30

86564391

BEARING COVER

Bearing

1шт.

31

86528768

HEX SOC SCREW,M10 x 20mm, Cl 12.9

1шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

Выбрано товаров: 37
