Запчасти Case IH DH302 (20.04.21[2]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS, 21 FT, 25 FT & 30 FT (14) - CROP CUTTING

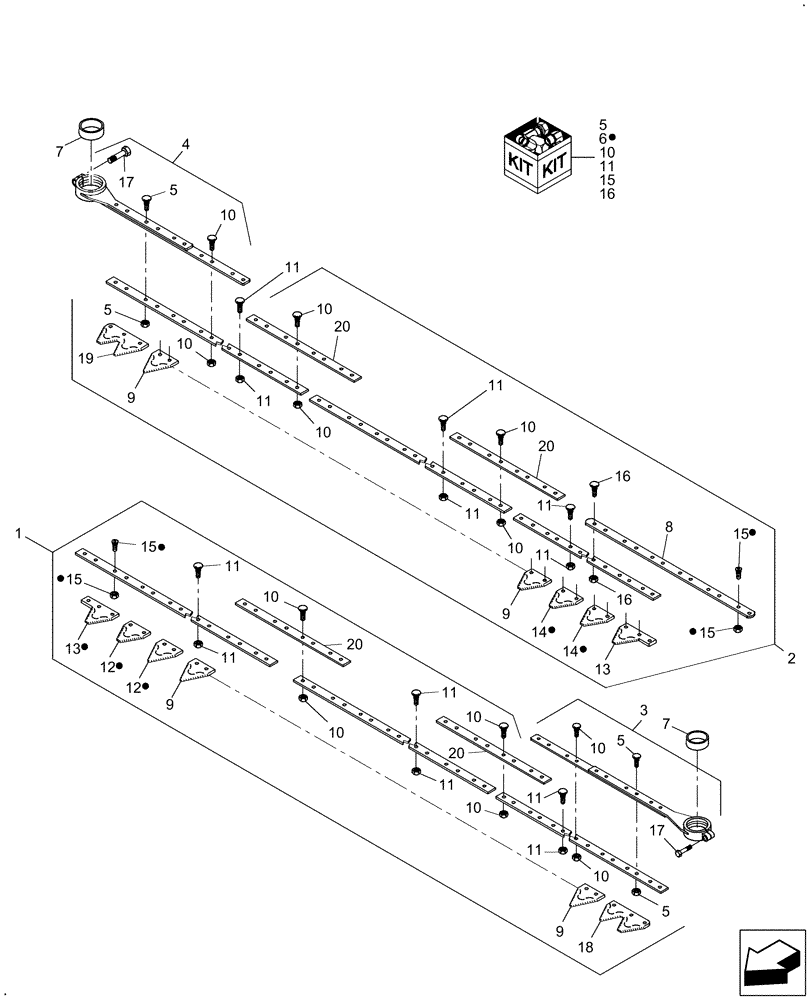

Схема запчастей Case IH DH302 - (20.04.21[2]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS, 21 FT, 25 FT & 30 FT (14) - CROP CUTTING
3
11
12
17
10
10
15
10
10
16
10
9
10
11
16
18
11
15
7
9
10
13
12
1
11
16
15
15
11
10
17
10
6
11
20
20
11
5
10
11
7
8
4
9
10
5
14
11
5
15
19
11
5
11
20
14
13
10
5
11
11
10
2
9
20

Артикул

Название

Примечание

Количество

1

87056011

KNIFE ASSY

LH, 10.5 Ft, DH212

1шт.

1

87056013

KNIFE ASSY

LH, 12.5 Ft, DH252

1шт.

1

87056015

KNIFE ASSY

LH, 15 Ft, DH302

1шт.

2

87056012

KNIFE ASSY

RH, 10.5 Ft, DH212

1шт.

2

87056014

KNIFE ASSY

RH, 12.5 Ft, DH252

1шт.

2

87056016

KNIFE ASSY

RH, 15 Ft, DH302

1шт.

3

87724638

KNIFE HEAD

LH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

4

87724639

KNIFE HEAD

RH, 17-15/16"

1шт.

Ref 7 Steel Insert Not Included, Order Separately

1шт.

4

47403252

KNIFE HEAD

LH & RH, 19-7/8"

1шт.

Ref 7 Steel Insert Not Included, Order Seperately

1шт.

5

86507780

KIT

Kit, (25 Of Each) , #12 x 1-1/8" (Each Knife Requires 6 Bolts)

1шт.

6

86616560

KIT

Overlap; Qty12 (2), 13 (1), 14 (3), & 15 (13 Nuts & Bolts), Must also order Qty 1 extra Ref 13

1шт.

7

87672659

INSERT

Steel

2шт.

8

84179065

KNIFE

Overlap; RH Knife Only

1шт.

9

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

10.5 Ft LH (37), 10.5 Ft RH (40), 12.5 Ft LH (45), 12.5 Ft RH (48), 15 Ft LH (55), & 15 Ft RH (58)

1шт.

10

86507778

KIT

#12 x 7/8"; Nuts/Bolts 25 Each, (Each Knife Requires 11 Bolts)

1шт.

11

86507777

KIT

#12 x 5/8"; Nuts/Bolts 50 Each, Quantity: 10.5 Ft LH (63) Or RH (61), 12.5 Ft LH (79) Or RH (77), 15 Ft LH (99) Or RH (97)

1шт.

12

86615986

KNIFE SECTION

LH

2шт.

13

86615985

KNIFE SECTION

2шт.

14

86615987

KNIFE SECTION

RH

2шт.

15

86512289

KIT

Overlap, Hex Socket, Flat Hd, Round Serrated Shank, #12 x 1/2"; Qty (25) Bolts & Nuts. Each LH Knife Requires 7 Bolts, Each RH Knife Requires 5 Bolts

1шт.

16

86517390

BOLT AND NUT

Kit, (25 Of Each), #12 x 3/4"; RH Knife Only; Requires 6 Bolts

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

18

86617759

KNIFE SECTION

End, LH

1шт.

19

86617760

KNIFE SECTION

End, RH

1шт.

20

87048307

LOCKING BAR

2шт.

Выбрано товаров: 27
