Запчасти Case IH DH302 (20.04.20) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, GUARDS (14) - CROP CUTTING

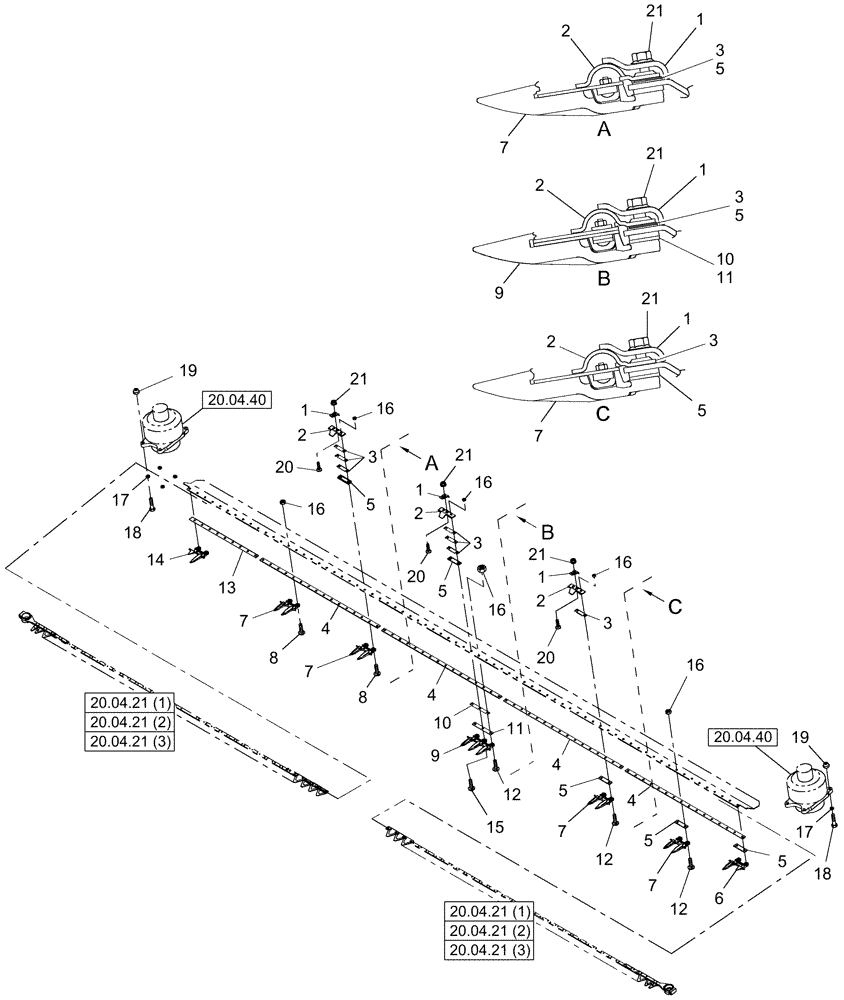

Схема запчастей Case IH DH302 - (20.04.20) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, GUARDS (14) - CROP CUTTING
5
14
8
7
12
1
9
17
7
5
20
3
3
1
5
9
7
13
3
21
4
3
12
18
16
17
3
7
11
3
16
21
5
10
11
18
5
4
20
4
2
20.04.40
20.04.40
2
21
16
1
5
15
1
20
1
19
5
2
5
8
16
7
21
20.04.21 (1)
20.04.21 (3)
20.04.21 (2)
20.04.21 (1)
20.04.21 (3)
20.04.21 (2)
4
6
10
16
16
2
21
2
2
21
1
12
19
7

Артикул

Название

Примечание

Количество

1

86630787

KNIFE CLIP

Qty (17) DH182, (20) DH212, (24) DH252, (29) DH302, (36) DH362

1шт.

2

86630786

KNIFE CLIP,Heat Treated

Qty (17) DH182, (20) DH212, (24) DH252, (29) DH302, (36) DH362

1шт.

3

86622663

SHIM,26.99mm OD x 0.25mm Thk

0.010"; Approximate Quantities: (17) DH182, (20) DH212, (24) DH252, (29) DH302, (36) DH362

1шт.

4

87052297

BAR

Qty (4) DH182, (5) DH212, (6) DH252, (7) DH302, (9) DH362

1шт.

5

634780

SHIM,.120" Thk

Qty (26) DH182, (31) DH212, (37) DH252, (44) DH302, (54) DH362

1шт.

6

86617059

GUARD

Stub, Special, RH

1шт.

7

86615982

GUARD

Double, Qty (33) DH182, (39) DH212, (47) DH252, (57) DH302, (69) DH362

1шт.

8

86512905

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 5

Qty (20) DH182, (22) DH212, (26) DH252, (32) DH302, (39) DH362

1шт.

9

86587787

GUARD

Triple, DH182, DH212, DH252, DH302 & DH362

1шт.

9

86615983

GUARD

Special, Center, DH362

2шт.

10

86974306

SHIM

0.010"

1/ARшт.

11

86974304

SHIM

0.120"

1шт.

12

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

Qty (51) DH182, (61) DH212, (73) DH252, (87) DH302, (106) DH362

1шт.

13

87052298

BAR

26", DH182 & DH302

1шт.

13

87056363

BAR

14", DH212 & DH251

1шт.

13

87056362

BAR

5", DH362

1шт.

14

86617060

GUARD

Special, LH

1шт.

15

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

Qty (2) DH182, DH212, DH252, DH302, (4) DH362

1шт.

16

425-107

NUT,7/16"-14, G5

Qty (73) DH182, (85) DH212, (101) DH252, (121) DH302, (146) DH362

1шт.

17

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

33/64" ID x 1" OD x .135" Thk

4шт.

18

428-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

8шт.

19

88130

NUT,1/2"-20, GC

8шт.

20

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

Qty (17) DH182, (20) DH212, (24) DH252, (29) DH302, (36) DH362

1шт.

21

231-5346

FLANGE NUT,Flg, 3/8"-16

Qty (17) DH182, (20) DH212, (24) DH252, (29) DH302, (36) DH362

1шт.

Выбрано товаров: 24
