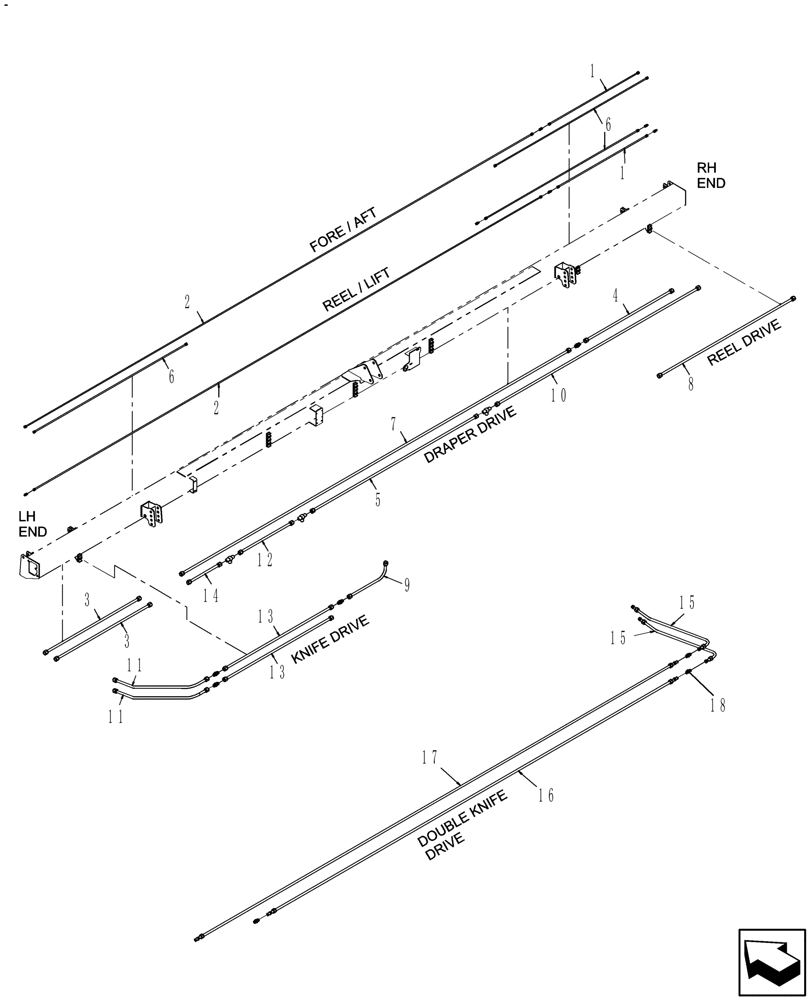

Запчасти Case IH DH252 (20.07.07[05]) - STEEL LINES, SINGLE SWATH, 25FT, FROM PIN Y9ZB00735 (07) - HYDRAULICS

1

86563523

HYD TUBE

3/8" x 42"

2шт.

2

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

2шт.

3

86563547

HYD TUBE,0.75" DIA x 44" L

3/4" x 44"

2шт.

4

86590549

HYD TUBE,0.75" DIA x 40.00" L

3/4" x 40"

1шт.

5

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

6

84330736

HYD TUBE

3/8" x 72"

3шт.

7

86563825

HYD TUBE,0.75" DIA x 183" L

3/4" x 183"

1шт.

8

86563533

HYD TUBE,0.75" DIA x 63" L

3/4" x 63"

1шт.

9

86592556

HYD TUBE

3/4" x 21"

1шт.

10

87058336

HYD TUBE,0.75" DIA x 95" L

3/4" x 95"

1шт.

11

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44", BL

2шт.

12

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

13

87015361

HYD TUBE,0.75" OD x 50" L

3/4" x 50"

2шт.

14

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

15

87030027

HYD TUBE,0.75" OD x 44" L

3/4" x 44", BR

2шт.

16

87488555

HYD TUBE

3/4" x 204"

1шт.

17

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.

18

86563521

HYD CONNECTOR

2шт.
